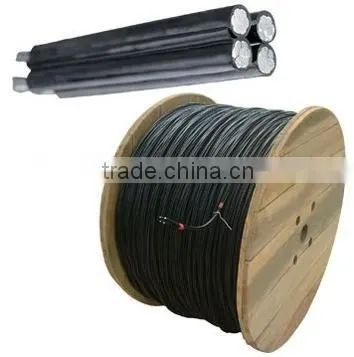

1000V Aerial Bundle Cable/quadruplex ABC Cable/service Drop Cable Insulated Overhead Cable
US$ 0.11 - 99.98
MOQ: 10 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
taifa
Model Number:
ABC cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
11KV XLPE Insulated Overhead ABC CableUS$ 0.11 - 99.98MOQ: 1000 Meters -
Aerial Bundled Cable/ABC Cable/service Drop CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
Aerial Bundle Cable ABC Cable NFA2X CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
Quadruplex Low Voltage Overhead ABC CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
Good Selling Service Drop ABC Cable(aerial Bundled Cable)/overhead CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
Place of Origin
Henan, China
Brand Name
taifa
Model Number
ABC cable
Insulation Material
PE
Type
Low Voltage
Application
Overhead
Conductor Material
Aluminum
Jacket
Other
Specification
1000V Aerial Bundle Cable/quadruplex ABC cable/service drop cable insulated overhead cable
Description
Conductor:AAc,AAAC,ACSR
Insulation: XLPE,PE, PVC
- It is a very novel concept for overhead power distribution when compared to the conventional bare conductor overhead distribution system.
- It is being desigined and manufactured & tested conforming to intiernational standard
Feature
1.higher safety and reliability
2.lower power losses and ultimate syetem economy by reducing installment, maintenance and operative cost
3.with fexibility for rerouting as changing demands
Application
Service drop( ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages,some special geographical areas.
Note
Maximum operating temperature 90 degrees
Maximum short-circuit temperature 250 degrees.
Tehnical parameter
| ABC Cable With AAAC Messenger Core | |||||||
| SPEC. mm2 |
Conductor Structure | Insulation Material |
Insulation Thickness (mm) |
Approx. Overall Diameter (mm) |
Approx. Weight (kg/km) |
Packing Meters per Drum |
|
| Phase (Compacted AL) |
Neutral(Alloy) | ||||||
| (No./mm) | Aluminum (No./mm) |
||||||
| 1x16+1x16 | 7/1.72 | 7x1.72 | XLPE (HDPE) |
1.2 | 12.5 | 110.1 | 250-4000m |
| 1x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | 250-4000m | |
| 1x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229.0 | 250-3500m | |
| 1x50+1x50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | 250-3000m | |
| 1x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | 250-3000m | |
| 1x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | 250-3000m | |
| 2x16+1x16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | 250-4000m | |
| 2x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | 250-3500m | |
| 2x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | 250-3500m | |
| 2x50+1x50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | 250-3000m | |
| 2x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | 250-3000m | |
| 3x16+1x16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | 250-3500m | |
| 3x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | 250-3500m | |
| 3x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | 250-3000m | |
| 3x50+1x50 | 7/2.92 | 7/2.94 | 1.4 | 25.7 | 644.1 | 250-3000m | |
| 3x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | 250-3000m | |
| 3x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | 250-3000m | |
| ABC Cable Without Messenger Core | ||||||
| SPEC. mm2 |
Conductor Structure (Compacted AL) (No./mm) |
Insulation Material |
Insulation Thickness (mm) |
Approx. Overall Diameter (mm) |
Approx. Weight (kg/km) |
Packing Meters per Drum |
| 2x16 | 7/1.72 | XLPE (HDPE) |
1.2 | 14.6 | 131.4 | 250-4000m |
| 2x25 | 7/2.15 | 1.2 | 16.8 | 189.0 | 250-4000m | |
| 2x35 | 7/2.54 | 1.4 | 19.8 | 264.5 | 250-3500m | |
| 2x50 | 7/2.92 | 1.4 | 22.6 | 344.1 | 250-3000m | |
| 2x70 | 19/2.15 | 1.4 | 25.6 | 470.0 | 250-3000m | |
| 2x95 | 19/2.54 | 1.6 | 29.8 | 645.5 | 250-3000m | |
| 3x16 | 7/1.72 | 1.2 | 15.7 | 197.1 | 250-4000m | |
| 3x25 | 7/2.15 | 1.2 | 18.1 | 283.5 | 250-3500m | |
| 3x35 | 7/2.54 | 1.4 | 21.3 | 396.7 | 250-3500m | |
| 3x50 | 7/2.92 | 1.4 | 24.3 | 516.2 | 250-3000m | |
| 3x70 | 19/2.15 | 1.4 | 27.6 | 705.1 | 250-3000m | |
| 3x95 | 19/2.54 | 1.6 | 32.1 | 968.2 | 250-3000m | |
| 4x16 | 7/1.72 | 1.2 | 17.6 | 262.9 | 250-3500m | |
| 4x25 | 7/2.15 | 1.2 | 20.3 | 378.0 | 250-3500m | |
| 4x35 | 7/2.54 | 1.4 | 23.9 | 528.9 | 250-3000m | |
| 4x50 | 7/2.92 | 1.4 | 27.3 | 688.3 | 250-3000m | |
| 4x70 | 19/2.15 | 1.4 | 30.9 | 940.1 | 250-3000m | |
| 4x95 | 19/2.54 | 1.6 | 36.0 | 1291.0 | 250-3000m | |
Package & Delivery

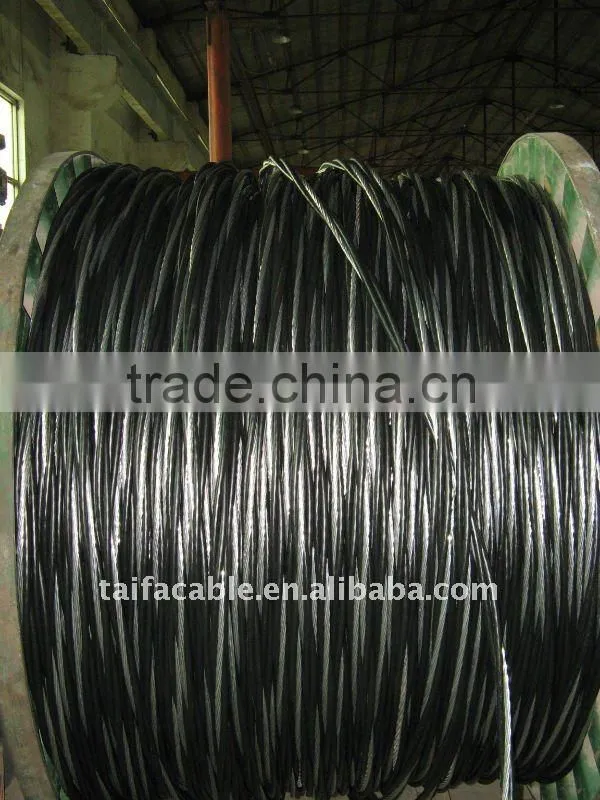

wooden drums seaworthy or at your option
delivery within 15 working days
