Aerial Bundled Cable/ABC Cable up to 1kv( Triplex Service Drop)

Aerial Bundled Cable/ABC Cable up to 1kv( Triplex Service Drop) thumbnail-1
Aerial Bundled Cable/ABC Cable up to 1kv( Triplex Service Drop) photo-1
US$ 1 - 999 MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
TAIFA
Model Number:
ABC cable
Contact Supplier Request Quote Chat Now
Henan Taifa Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name TAIFA
Model Number ABC cable
Type Insulated
Application Overhead
Conductor Material Aluminum
Conductor Type Stranded
Insulation Material Other, XLPE or PE

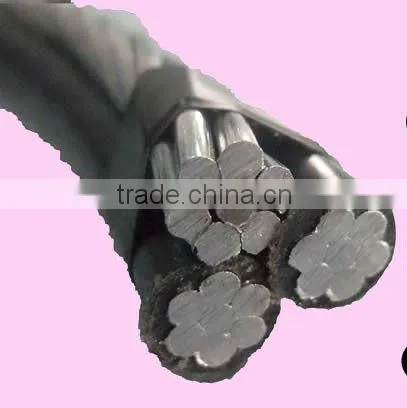

Aerial Bundled Cable/ABC cable up to 1kv( Triplex Service Drop)



ABC Aerial cable with ACSR messenger Core
Nominal csetion area(sqmm)
Conductor structure
Insulation material
Insulation Thickness(mm)
Approx. Overall Diameter(mm)
Approx. weight
(kg/km)

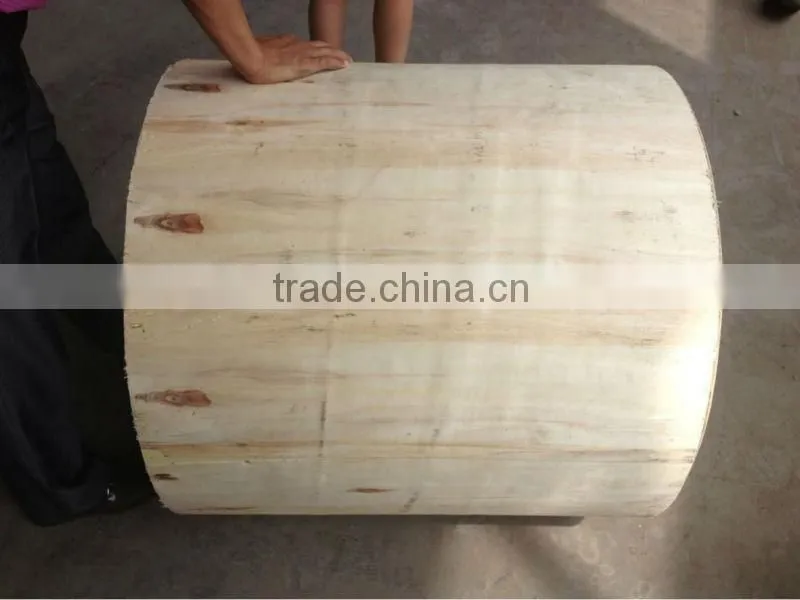

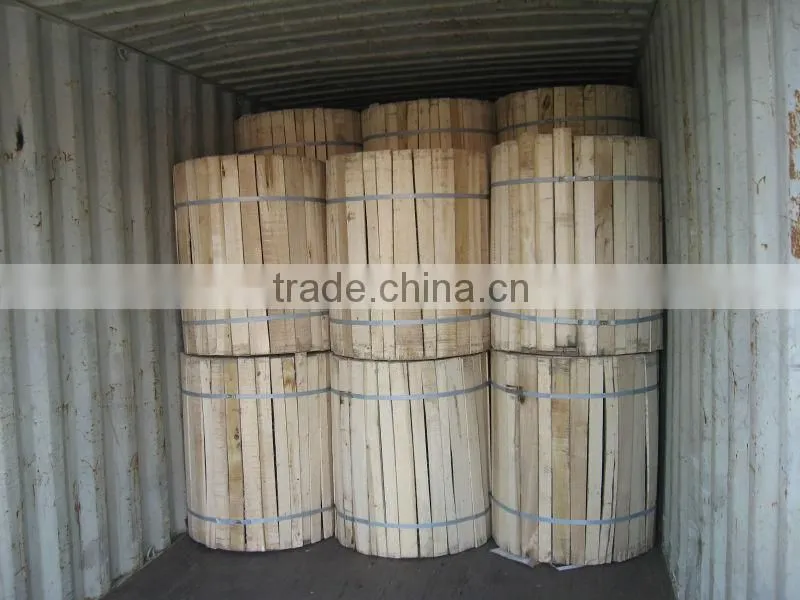

Packing meters per drum
Phase
(Compacted AL)
Neutral
(bare ACSR)
(No./mm)
Aluminum
(No./mm)
Steel
(No./mm)
1x16+16
7/1.72
6/1.72
1/1.72
XLPE
1.2
12.5
121.9
250-4000m
1x25+25
7/2.15
6/2.15
1/2.15

1.2
14.9
182.2
250-4000
1x35+35
7/2.54
6/2.54
1/2.54

1.4
17.5
254.7
250-3500m
1x70+70
19/2.15
12/2.15
7/2.15

1.4
23.6
382.2
250-3000m
1x95+95
19/2.54
12/2.54
7/2.54

1.6
27.6
528.2
250-3000m
2x16+16
7/1.72
6/1.72
1/1.72

1.2
14.2
187.6
250-4000m
2x25+25
7/2.15
6/2.15
1/2.15

1.2
16.7
273.8
250-3500m
2x35+35
7/2.54
6/2.54
1/2.54

1.4
19.7
386.9
250-3500m
2x70+70
19/2.15
12/2.15
7/2.15

1.4
26.1
617.2
250-3000m
2x95+95
19/2.54
12/2.54
7/2.54

1.6
30.5
850.9
250-3500m
3x70+70
19/2.15
12/2.15
7/2.15

1.4
29.7
1024.3
250-3000m
3x95+95
19/2.54
12/2.54
7/2.54

1.6
34.6
1413.7
250-3000m



Aerial Bundled Cable/ABC cable up to 1kv( Triplex Service Drop)

Aerial Bundled Cable/ABC cable up to 1kv( Triplex Service Drop)Aerial Bundled Cable/ABC cable up to 1kv( Triplex Service Drop)
