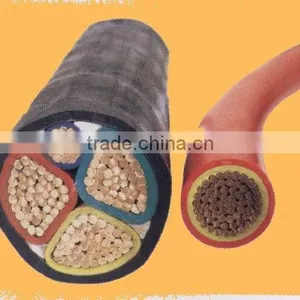

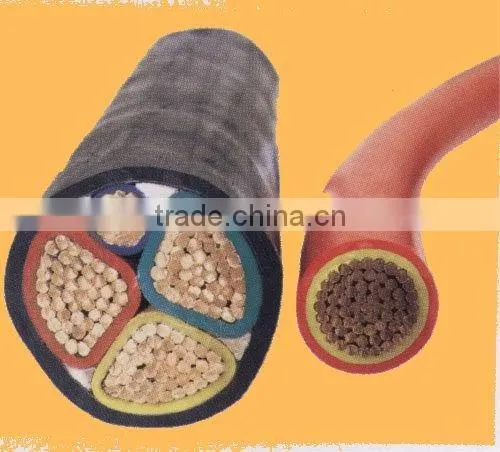

EPR rubber Insulation Silicone Rubber Sheath Tin-Coated Wire Braid Shielding Cable
The processing of fluoroplastic is not easy, but we successfully overcome this technical difficulty, and this material is used to make our fluoroplastics insulated heat-resistant power cable. Due to the superb stability of fluoroplastic, our product features stable electrical performance, and it is also resistance to acid, alkali, oil, corrosion, water, aging, corrosive gas, high temperature, etc.
These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.
Qualification 1. The DC resistance of this heat-resistant power cable is in accordance with GB 3956. 2. The insulation resistivity at 20℃ is higher than 500MΩ•km. 3. The end product is detected by the voltage withstand test, and it should not be damaged during the 5-minute-testing. Additionally, the test voltage is 3.5kV AC, and the frequency is 50Hz.
Applications UL series high temperature resistant wire electronic wire teflon jacket cable shield wire is used as the fixed power transmission and distribution line, or linking wire for motor. It offers stable electrical performance under high temperature, and it also shows the advantages of large current carrying ability as well as long lifespan. As a result, this product is widely accepted in the metallurgy, electrical industry, petrochemical field, large construction, automobile manufacturing and others.
1. Products applications:
Rubber cable is suitable for connection with household appliances, electric tools and various mobile electrical equipments of rated voltage up to and including 450/750V.
2. Products standards: BS EN 50525-2-21
3. Products types & names:
--H05RR-F Ordinary rubber sheathed cord.
--H05RN-F Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord (1-4 cores).
--H07RN-F Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable.
4. Products characteristics:
--Long-term working temperature of cables: EPR insulated cables should not be higher than 65°C,EPT/EPDM insulated cables should not be higher than 90°C.
--Such cables are more flexible and easy to move electrical appliances.
| HAR Code | IEC | Description | Voltage Design | Cores |
| H05RR-F | 60245 IEC 53(YZ)/YZ | Oridinary rubber sheathed cord | 300/500V | 2~6 |
| H05RN-F | 60245 IEC 57(YZW)/YZW | Oridinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~6 |
| H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
| H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-welding electrode cable | 100/100V | 10-120 |
| 60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 100/100V | 10-120 |
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Taifa Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission.
6. Taifa Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
