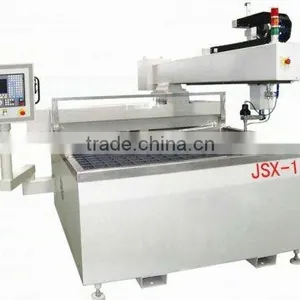

Help CenterHigh Speed 3D CX1520 Water Jet Cutting Machine for Cutting Stainless Steel, Aluminium Sheet and Marble
Related Products
-
CX-1530 China CNC Water Jet Cutting Machine/ Water Jet Cutter/ With Imported Intensifier PumpNegotiableMOQ: 1 Piece -
CX-1520 Water Jet Cutter/ CNC Water Jet Cutting Machine With Imported Intensifier PumpNegotiableMOQ: 1 Piece
-
CX-2040 Water Jet Machine/ Waterjet Cutting Machine With High Pressure Imported Intensifier PumpNegotiableMOQ: 1 Piece
-
CX-1530 Waterjet Cutter With Imported Intensifier PumpNegotiableMOQ: 1 Piece
-
CX-1520 Water Jet Machine With Imported Intensifier PumpNegotiableMOQ: 1 Piece
Specifications
high speed 3D Water Jet Cutting machine1.stable pressure 440Mpa within 24 hours
2. high speed, cutting thick materials
Product |

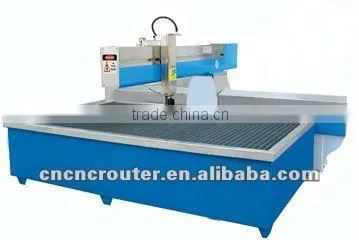

CX1520 Water Jet Cutting machine |
Price |
FOB Qingdao *** USD |
MOQ |
1 SET |
Warranty |
One year |
Technical specifications
Model |
CX-1520 |
Machine size |
2000mm*2500mm |
Working size |
1500mm*2000mm*350mm |
Control system |
Water jet system America Match 3 |
Reposition precision |
±0.1mm |
Cutting precision |
±0.25mm/TBI Graphics input |
The cutting speed (mm/min)and cutting thickness
material |
thickness |
Cutting speed(mm/min) cutting pressure(300MPa) |
Cutting speed(mm/min) cutting pressure(380MPa) |
marble |
20 |
300 |
400 |
30 |
200 |
300 |
|
granite |
20 |
250 |
300 |
30 |
150 |
200 |
|
Vetrified tiles |
10 |
600 |
850 |
28 |
120 |
200 |
|
glass |
6 |
800 |
1000 |
10 |
600 |
800 |
|
19 |
350 |
500 |
|
laminated glass |
21 |
400 |
600 |
foam |
20 |
5000 |
7000 |
50 |
2000 |
3000 |
|
80 |
1500 |
2000 |
|
Car interior (carpet) |
3 |
2000 |
2700 |

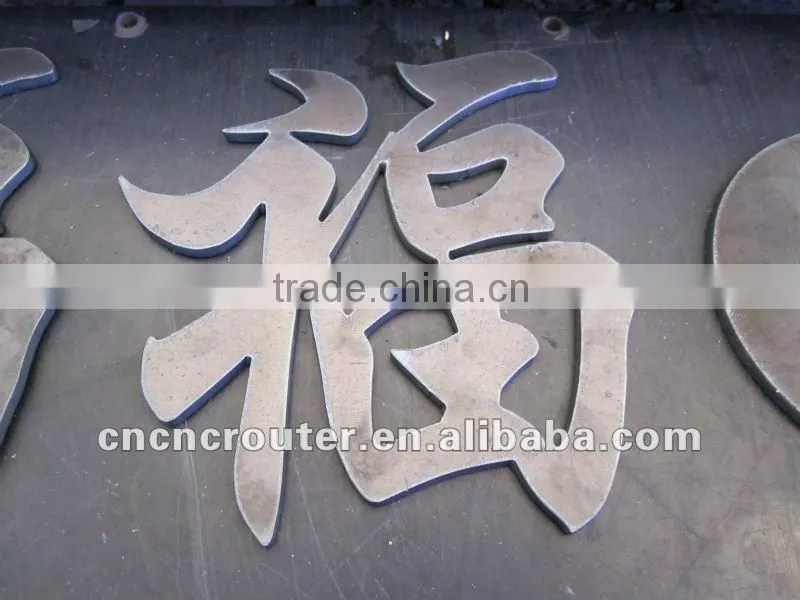

Stainless steel |
1 |
800 |
1100 |
3 |
400 |
600 |
|
6 |
140 |
200 |
|
10 |
110 |
170 |
|
16 |
80 |
110 |
|
20 |
50 |
80 |
|
30 |
25 |
40 |
|
55 |
|
20 |
|
65 |
|
10 |
|
copper |
3 |
600 |
1000 |
5 |
450 |
700 |
|
aluminium |
10 |
300 |
450 |
20 |
180 |
240 |
|
30 |
100 |
150 |
|
70 |
As the hardness of gold, silver and copper is similar, this machine can satisfy your request definitely.
Features:

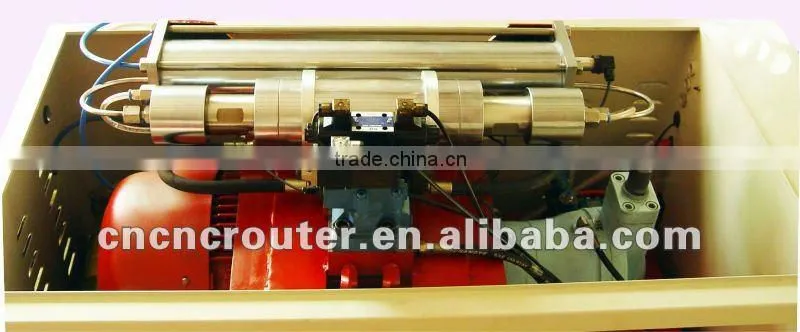

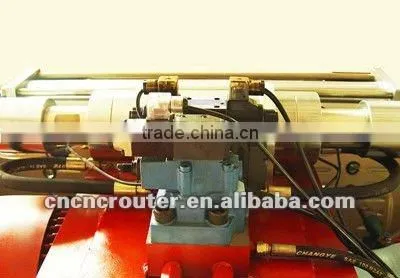

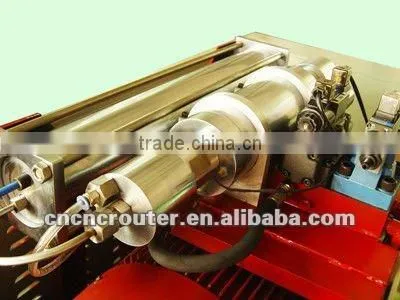

1. Adopt imported intensifier pump to pressurize normal tap water to 500Mpa, provide a stable pressure 440Mpa within 24 hours.
2. Adopt three-phase 75KW 160L hydraulic stabilizing system, the maximum displacement of accumulator is 3.7L/min, two in one system 5μm water filter.
3. Taiwan HIWIN ball screw with a protective system insures the accuracy of processing.
4. Y axis adopts double driver system, high accuracy, stable processing.
5. Adopt ball screw and orbits of international bands with high quality; ensure high-precision machining, smooth transitions, and a long lifespan.
Gantry type:
1200*1200mm 500MPA servo driver TBI
1500*2000mm 500MPA servo driver TBI
1500*2500mm 500MPA servo driver TBI
2000*4000mm 500MPA servo driver TBI

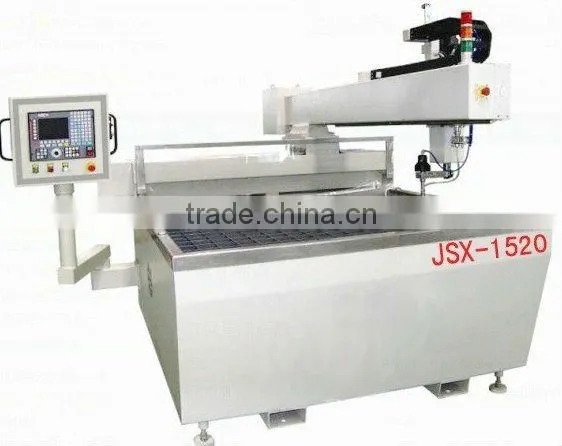

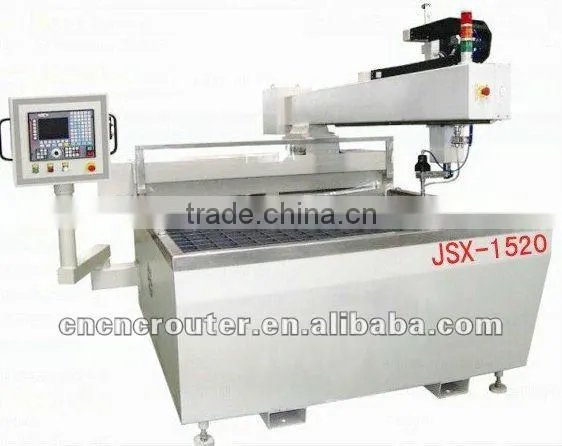

Arm type:
1200*1200mm 400MPA servo driver TBI
1500*2000mm 400MPA servo driver TBI
1500*2500mm 500MPA servo driver TBI
2000*4000mm 500MPA servo driver TBI
Guarantee:
Electric parts - ONE year
High-pressure cylinder - THREE years
Accumulator - FOUR years
High-pressure sealing ring - One year
