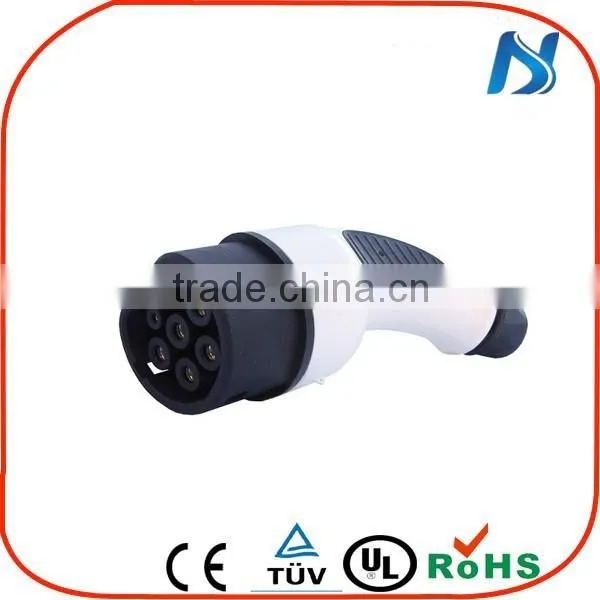

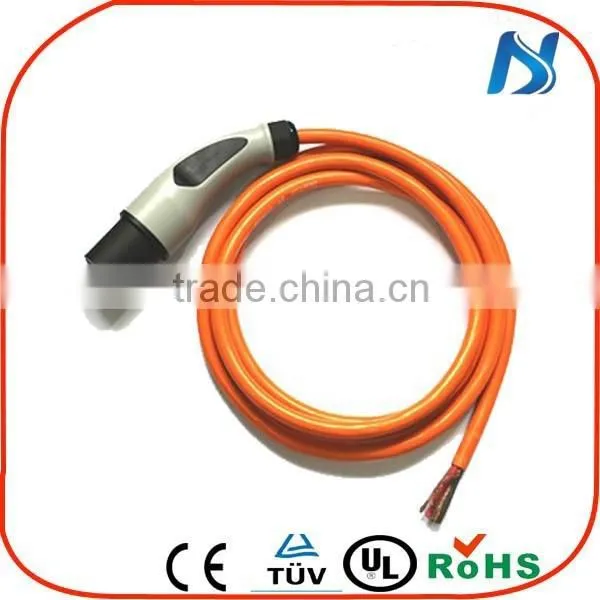

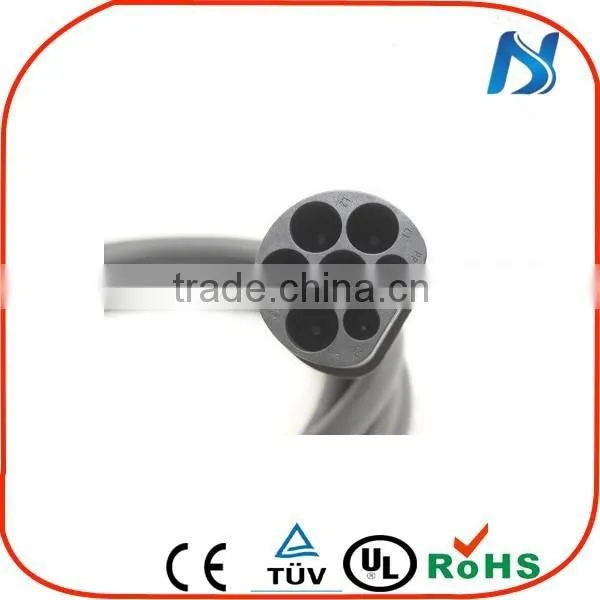

16A Type2 EV Adaptor male Plug For Electric Vehicle Charging
Product Features
1.Meet IEC62196 standards;
2.Nice shape, hand-held ergonomic design, easy to use;
3.Protection class: IP54(in mated conditions);
4.Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV
Electrical Performance
1.Rated current:16A/32A/63A;
2.Operating voltage: 250V AC;
3.Insulation resistance:>1000MΩ(DC500V);
4.Terminal temperature rise:<50K;
5.Withstand voltage:2000V;
6.Contact impedance: 0.5mΩ Max
7.Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.
Mechanical properties
1.Mechanical life: no-load socket in/pull out >10000 times
2.Insertion and coupled Force: 45N<F<80N;
3.Operating temperature: -30°C ~ +50°C
Materials
1.Shell material: Thermoplastic (Insulator inflammability UL94 V-0);
2.Contact Pin: Copper alloy, silver or nickel plating;
3.Sealing gasket: rubber or silicon rubber;
Adapt Socket type :
| Product Parameters | |||
Type |
DSIEC2a-G-EV-P |
Plug the power |
≤160N |
| Color |
Grey |
Patch life |
≥10000 |
| Rated Current |
16A/32A/63A |
Fire rating |
UL94 V-0 |
| Rated Voltage |
250 |
Waterproof rating |
Cutoff:IP54,Charge:IP67 |
| Resistance Voltage |
2000V |
Operating Temperature |
-30°Cto60°C |
| Insulation resistance |
>1000M(DC500V) |
Cable Specifications |
2.5mm2 -10mm2 |
| The main material |
PC/Copper Alloy |
|
|
Charging mode | |||||
Mode |
Type |
Rated voltage |
Rated Current |
AWG |
Number of insert |
1 |
DSIEC2a-G-EV-16P |
250V AC |
16A |
3*2.5mm2+2*0.5mm2 |
7 |
| 2 | DSIEC2a-G-EV-32P |
250V AC |
32A |
3*6mm2+2*0.5mm2 |
7 |
| 3 | DSIEC2a-G-EV-63P |
250V AC |
63A |
3*10mm2+2*0.5mm2 |
7 |
| Remark |
The length of the cable can be customized |
||||
Main Service:
1 Type 1 & Type 2 Electrice Vehicle Charging plugs
2 Electric charging connectors;
3 EV portable charger;
4 Wall-mounted EV charging etc
About KHONS:
Chengdu Khons Technology Co., Ltd.
We are dedicated in the electric car charger industry With Superior product quality, powerful factory support and valued foreign trade experience to Europe, America,South Africa, Southeast Asia, etc
Our Advantage:
1.International approvals(UL,TUV,CE,ROHS)
2.Competitive price
3.Prompt Delivery time(7-10 days)
4.Guaranteed quality
5.OEM order is acceptable image
Looking for long term business relationship with you.
Contact Information
Chengdu Khons Technology Co., Ltd.
Skype: sira-khons
E-mail: sira-khons(at)
Tel: +86-13215734637/+86-28-83128852
QQ: 2239309555
Whatsapp/Wechat: +8613215734637
Trade manager: cn1510158314
Address: Room1-2-909, No.27,South Renmin Rd, Chengdu City,Sichuan Province,China
RFQ:
Here are some customer’s common questions about our sae j1772 ac ev cable charge plug :
1. What is your terms of payment?
We will recommend our customer to use different terms of payment based on difference in quantity of order.
Less than 1000 USD, generally sample order we could accept Paypal,west union,etc
More than 1000 USD, generally choose bank transfer or Alibaba
If you need the detailed terms of payment, pls contact us.
2. Do your products have quality certification?
All of our EV charging products posses with CE, TUV certifications, J1772 products posses with UL certification.
3. How do you deliver your goods to me? How long will it take?
We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 7 days to 15 days due to the quantity of order, the level of busyness in production line.
