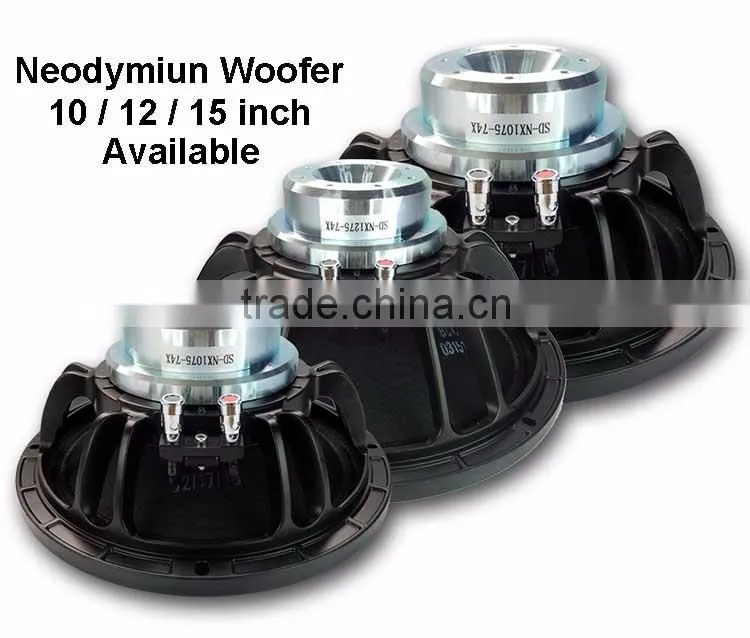

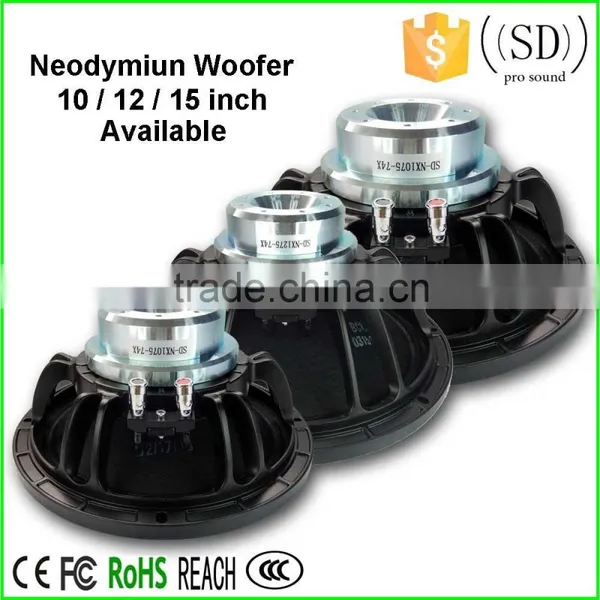

12 Inch Woofer Neodymium Speaker Neodymium Woofer 10inch/15 Inch Available
US$ 45 - 60
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SHENG DA AUDIO
Model Number:
SD-NX neodymium Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15 Inch Speaker China Speaker Manufacturer Stage Woofer SD-MT1575-190US$ 10 - 20MOQ: 1 Piece -
15'' Hot Sale High Power Bass Speaker Woofer SD-LF15190US$ 30.99 - 45.99MOQ: 1 Piece
-
10 Inch Woofer Speaker 600W Speaker 10inch Ceramic Speaker SD-1050-120KUS$ 1 - 30MOQ: 50 Pieces
-
18 Inch Speaker Stage Speaker Ferrite Speaker SD-LF18X400US$ 1 - 78MOQ: 50 Pieces
-
12 Inch Woofer Speaker 1000W Woofer Ceramic Woofer Speaker SD-MB12G301US$ 1 - 35MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
SHENG DA AUDIO
Model Number
SD-NX neodymium Series
product link
Main Picture
SD-NX Neodymium Series
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||

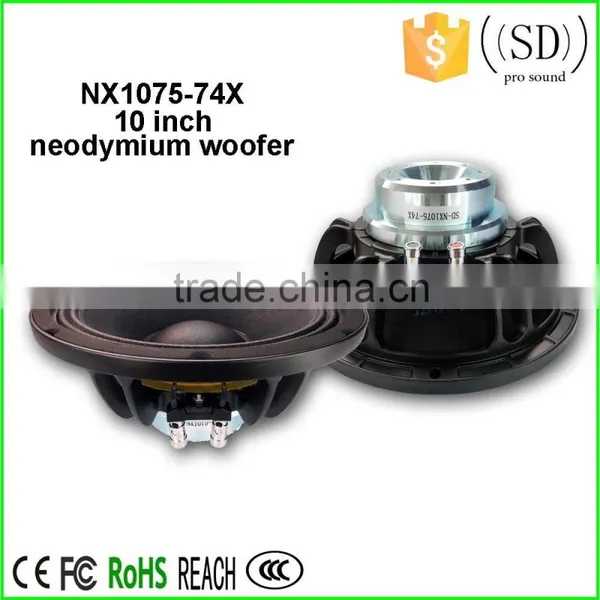

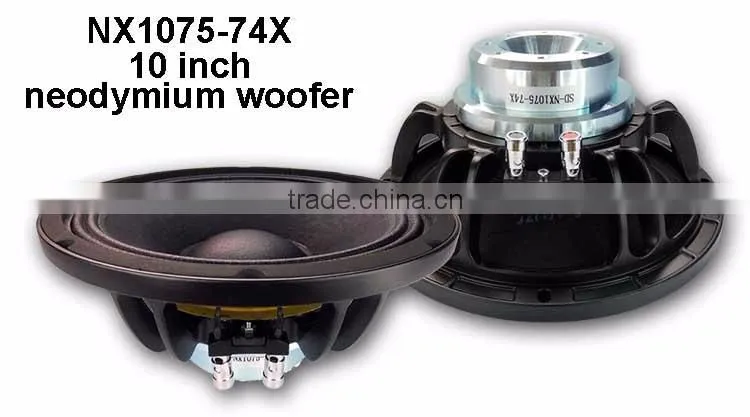

| Nominal Diameter | 10"254mm | FS Hz | 63Hz | Overall Diameter | 261mm |
| Nominal Impedance ohm | 8ohm | Re | 5.8ohm | Bolt Circle Diameter | 245mm |
| AES Power | 200W | Qms | 5.34 | Baffle Cutout Diameter | 231mm |
| Program Power | 400W | Qes | 0.29 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 63-3000Hz | Qts | 0.28 | Mounting Holes Diameter | 6.7mm |
| Sensitivity(1W/1M) | 96.1dB | Mms | 36.1G | Depth | 118mm |
| Flux Density | 1.15T | Cms | 0.17mm/N | Net Weight | 3.35KG |
| Magnet Diameter | 75mm | BL | 15.8T-M | Gross Weight | 14.5KG |
| Voice Coil Diameter | 75mm | Sd | 356cm2 | Box Size | 59x28x30cm/4pcs |
| Winding Material | Copper Clad Al | Vas | 31.1L | ||
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||

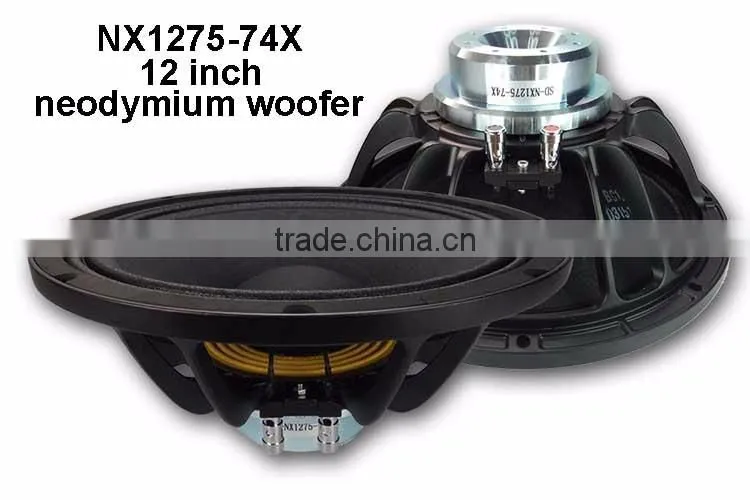

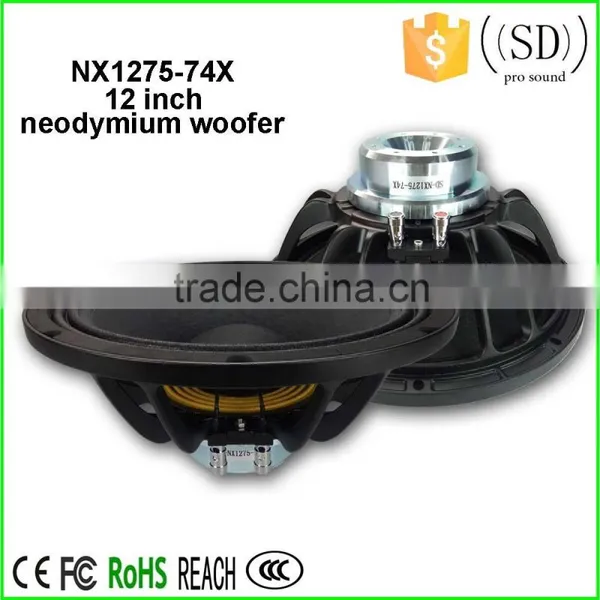

| Nominal Diameter | 12"/305mm | FS Hz | 62Hz | Overall Diameter | 316mm |
| Nominal Impedance ohm | 8ohm | Re | 5.2ohm | Bolt Circle Diameter | 300mm |
| AES Power | 400W | Qms | 5.98 | Baffle Cutout Diameter | 284mm |
| Program Power | 800W | Qes | 0.6 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 62-3000Hz | Qts | 0.55 | Mounting Holes Diameter | 6.7mm |
| Sensitivity(1W/1M) | 96dB | Mms | 50.4G | Depth | 139mm |
| Flux Density | 1.15T | Cms | 0.12mm/N | Net Weight | 3.6KG |
| Magnet Diameter | 75mm | BL | 13.0T-M | Gross Weight | 15.6KG |
| Voice Coil Diameter | 75mm | Sd | 530cm2 | Box Size | 61x33x33cm/4pcs |
| Winding Material | Copper Clad Al | Vas | 51.7L | ||
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||

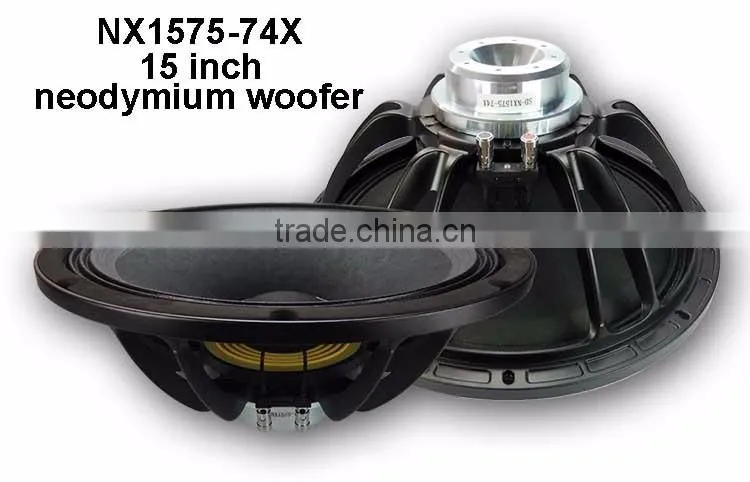

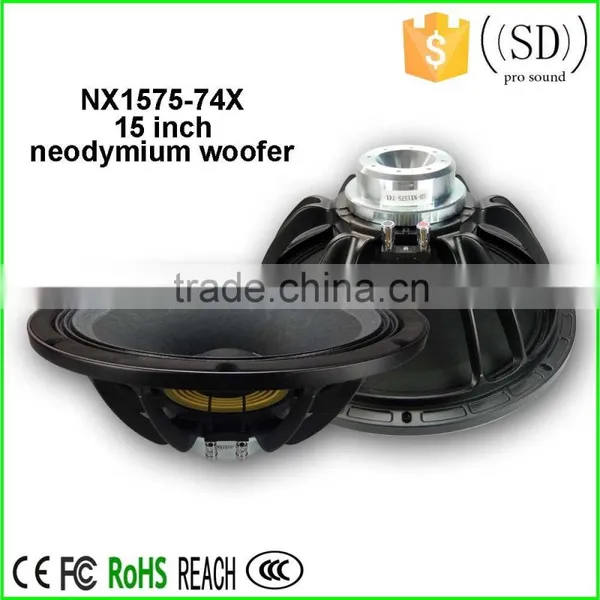

| Nominal Diameter | 15"/381mm | FS Hz | 43Hz | Overall Diameter | 394mm |
| Nominal Impedance ohm | 8ohm | Re | 5.0ohm | Bolt Circle Diameter | 374mm |
| AES Power | 450W | Qms | 3.46 | Baffle Cutout Diameter | 354mm |
| Program Power | 900W | Qes | 0.59 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 43-3000Hz | Qts | 0.5 | Mounting Holes Diameter | 6.7mm |
| Sensitivity(1W/1M) | 96dB | Mms | 84.8G | Depth | 168mm |
| Flux Density | 1.15T | Cms | 0.15mm/N | Net Weight | 3.9KG |
| Magnet Diameter | 75mm | BL | 13.9T-M | Gross Weight | 8.2KG |
| Voice Coil Diameter | 75mm | Sd | 850cm2 | Box Size | 39x39x37cm/2pcs |
| Winding Material | Copper Clad Al | Vas | 164L | ||

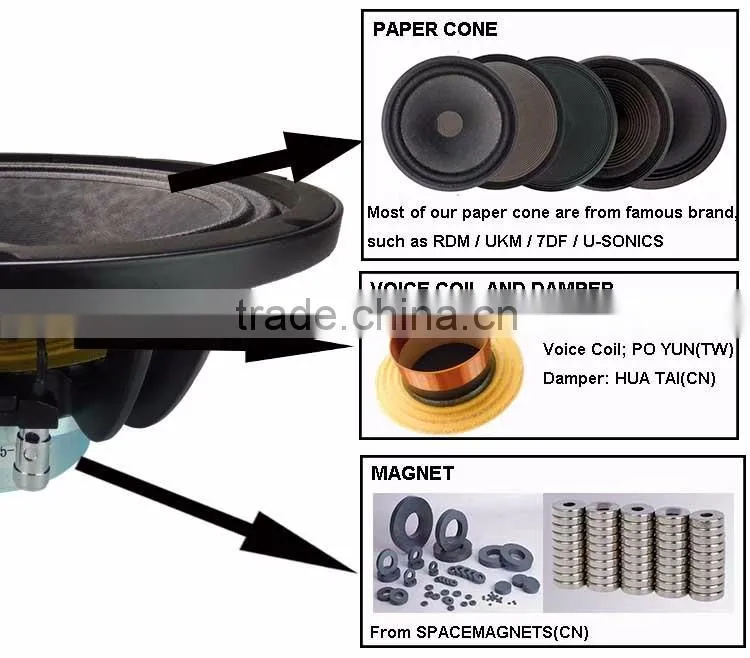

Product Detail
Company Information
Company Information:
Our product range as follows: woofer speaker, tweeter speaker, coacial speaker, professional speaker box, sound system proposal, microphone and ect.
As one of the OEM & ODM suppliers,We specialize in design and manufacture all kinds of products and accessories for customers.
Our Sales Teams at April 5th,2015,Guangzhou Exhibition:
