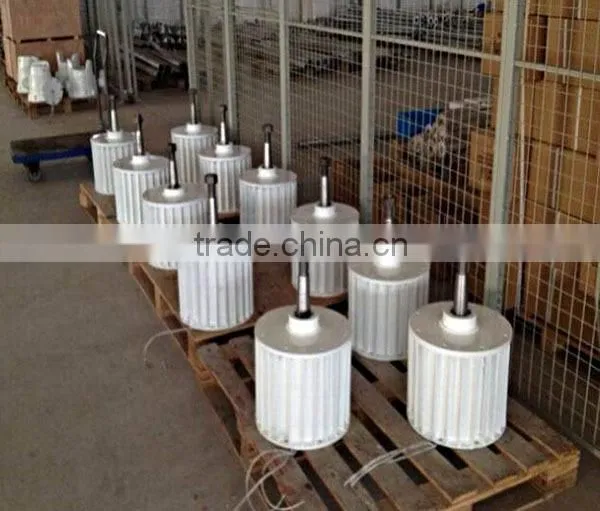

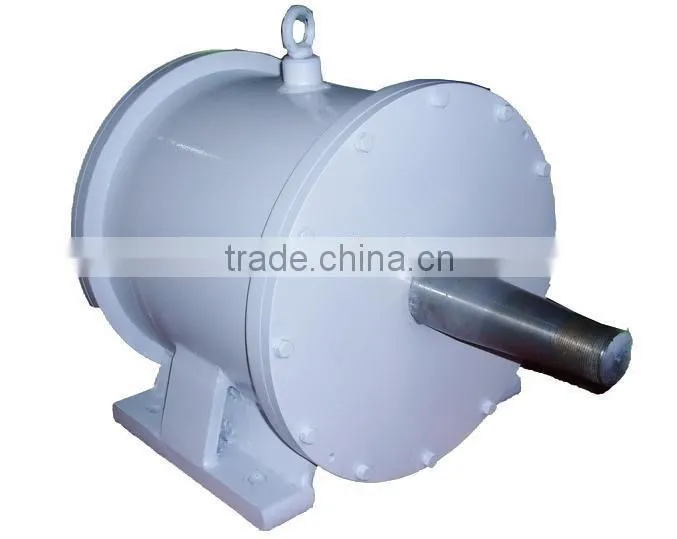

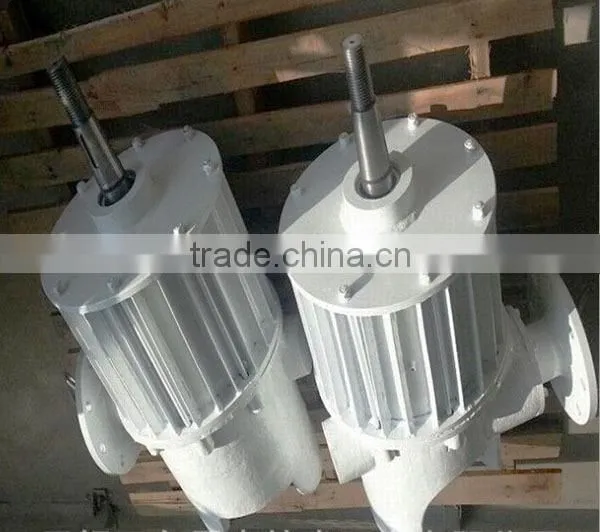

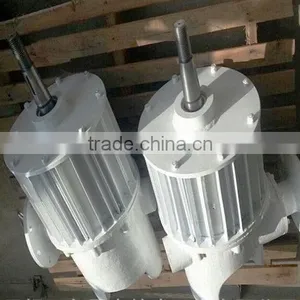

AC 380V 200RPM 10kw Permanent Magnet Generator
US$ 1,000 - 6,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Xinchang
Model Number:
XCH-10KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Rpm Permanent Magnet GeneratorNegotiableMOQ: 100 Pieces -
Low Speed 12v Permanent Magnet GeneratorNegotiableMOQ: 100 Pieces
-
Low Speed Permanent Magnet ac GeneratorNegotiableMOQ: 100 Pieces
-
Sufficient 50w Permanent Magnet GeneratorNegotiableMOQ: 100 Pieces
-
Sufficient Power 50W 300Rpm AC 12V 24V Wind GeneratorUS$ 180 - 280MOQ: 100 Pieces
Place of Origin
Shandong, China
Brand Name
Xinchang
Model Number
XCH-10KW
Type
Wind Power Generator
Specifications
Sufficient watts power Permanent Magnet Generator1. synchronous generator
2. Carbon steel
3. NdFeB
10KW permanent magnet generator
| 10kw 200rpm | |
| Tech Data | |
| rated power(W) | 10kw |
| rated speed(RPM) | 200 |
| start up torque(<N*M) | 9.5 |
| rated torque(N*M) | 477.5 |
| rated voltage(V) | DC230 |
| rated current(A) | 43.47 |
| insulation class | F |
| efficency | >88% |
| PMG collocation | Y connection,three phase three wires |
| service life | >20y |
| working temperature | -25centidegree - 40centidegree |
| speed range | 0-240rpm |
| weight | 238kg |
| Material Data | |
| shaft | 40# carbon round steel with quenching and tempering treatment |
| bearing | C&U or as your requirment |
| shell | casting |
| winding temperature class | 130 centidegree |
| permanent magnet | rare earth NdFeB |
| magnet temperature class | 150 centidegree |
| core | high grade cold rolling silicon sheet 50WW470 |
| protection grade | IP54 |
