Specifications
500w Wind Generator China Farm And Home UseHigh energy yield
Reliable
Safe
Quiet,Clean energy
500w Wind Generator China Farm And Home Use
The Features of 0.5kw wind turbine generator as follow:
1) The start and running capacity of the vane is the strongest.
2) The rotate speed of the vane is the fastest, which can reach 2,200 cycle/minute without stalling (Presently most wind driven generators will stall when they reach 1,200 cycle/minute.)
3) The comprehensive strength of the vane is the highest.
4) The thickness of the vane is the thinnest.
5) The weight of the vane is the lightest.
6) The service life of the vane is the longest.
7) The thunder and lightning-proof performance of the vane is the most reliable and safest.
8) The anti-corrosion and anti-salt spray corrosion performance of the vane is the strongest.
9) The noise of the vane is the lowest.
10) The anti-sand storm and anti-bird strike performance of the vane is the strongest.
500w wind generator technical parameters
Model No. |
XC-500 w |
Rated power |
500 w |
Wind Roter Diameter |
2.5 m |
Number of Blades |
3 pcs |
Cut-in wind speed |
3 m/s |
Working wind speed |
3.0-20 m/s |
Survival wind speed |
35 m/s |
Start Torque |
0.8 n/m |
Rated wind speed |
8 m/s |
Maxed output power |
750 w |
Rated rotate speed |
500 rpm |
Blade material |
FRP strengthened |
Working voltage (V) |
Dc 24V/AC220V |
Generator style |
PM, three phase,AC |
Speed regulation method |
Electromagnetic brade and yawing |
Stop method |
Electromagnetic brade and manual |
Wind turbine main body weight |
45kgs |
Zipper under the weight: |
67kg/6m |
Independent under the weight |
237kg/8m |
Controller Model |
24V 60A |
Battery specifications |
12V 200AH*2 |
Product name |
0.5kw wind power generator home use |
Blades:
Lifts and rotates when wind is blown over them, causing the rotor to spin. Most turbines have either two or three blades.
Brake:
Stops the rotor mechanically, electrically, or hydraulically, in emergencies.
Pitch:
Turns (or pitches) blades out of the wind to control the rotor speed, and to keep the rotor from turning in winds that are too high or too low to produce electricity.
Rotor:
Blades and hub together form the rotor.
Our wind turbines are ideally suited for working farms, businesses, rural properties, and community projects, and installing one or more Gaia-Wind turbines provides an easier and more convenient way of generating ROI than medium wind turbines.
We are dedicated to ensuring our customers benefit from the outstanding performance and economic advantages offered by our wind turbines.
Picutures for 500w Generator Wind China
Blades:

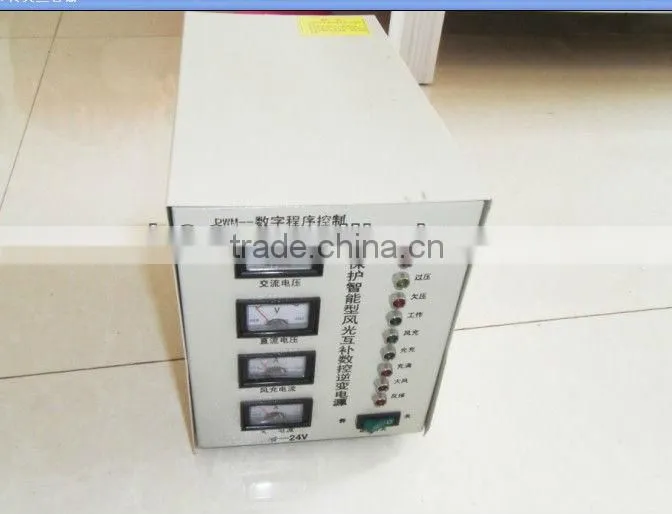

Controller and inverter

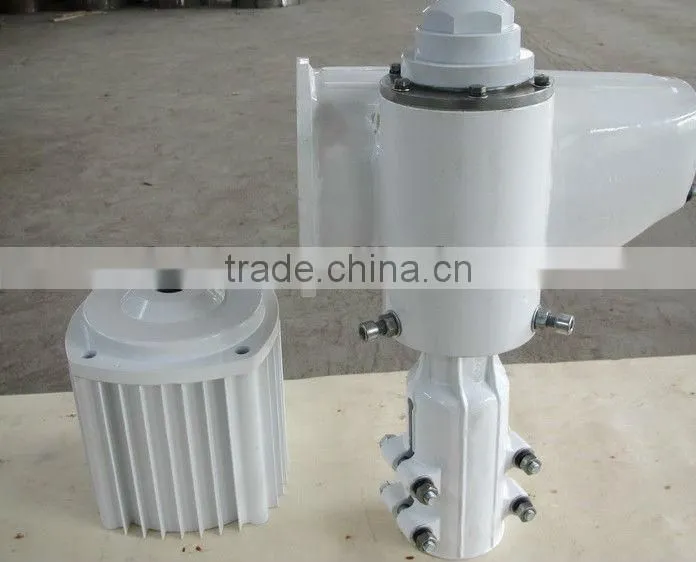

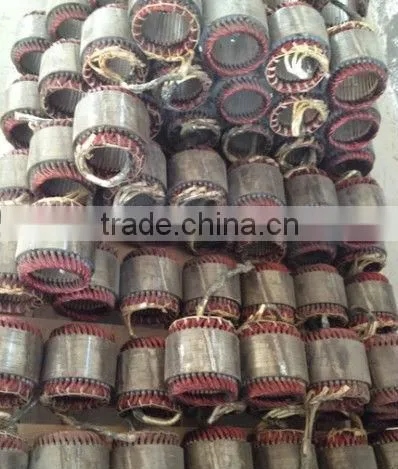

Generator for Wind turbine

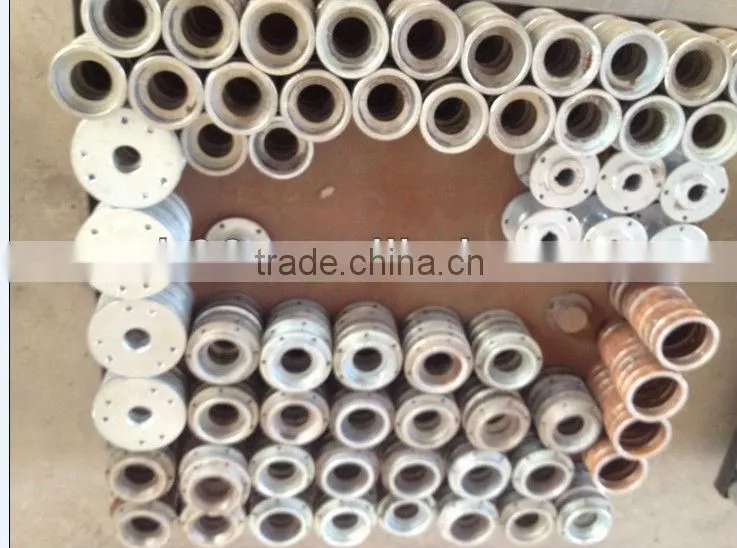

Accessories for wind turbine
Packing for 0.5 KW Windmill For Home
