2700K/6400K 8000Hours 60Lm/w Spiral 23W Energy Saving Lamp
The Dimensions of Spiral 23W Energy Saving Lamp
| Model | Power | Tube Size(mm) | Lamp Size(mm) | Qty/carton | Carton Size |
| full spiral-23 | 23w | 12mm | L146xD61 | 50pcs | 69x35x19cm |
| half spiral-23 | 23w | 10mm | L138xD52 | 50pcs | 60x30x18cm |

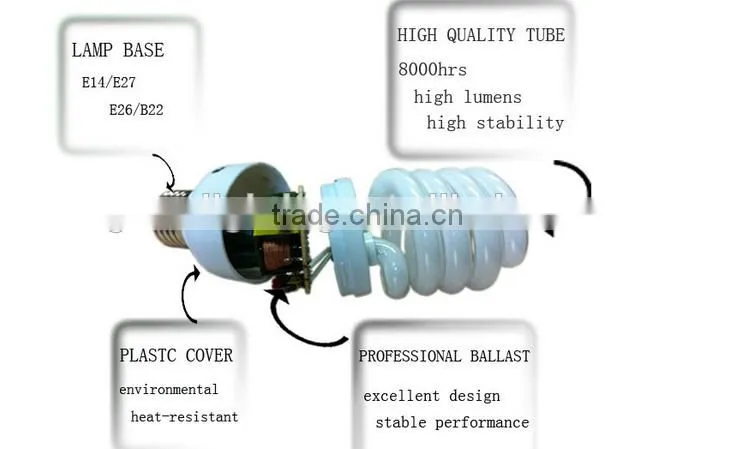

The Structure of Spiral 23W Energy Saving Lamp
| Lamp Base | Material:Nickle plated Iron/Copper/Aluminum |
| Base Type: E27/B22 | |
| Ballast | Specialized Ballast,excellent design and assembling,8000hours |
| Lamp Tube | Shape:full spiral,half spiral |
| Material: 100% tri-phosphor | |
| Ballast Plastics | PBT(fireproof) |
The Specifications of Spiral 23W Energy Saving Lamps
| Shape | full spiral,half spiral |
| Wattage | 23w |
| Lumen Efficiency |
>60lm/w |
| Tube Size | 10mm,12mm |
| Tube Powder Material | 100% tri-phosphor |
| Voltage | 110-130V;220-240V AC |
| Color Temperature | 2700K/6400K |
| Frequency | 50-60Hz |
| Color Rendering Index | ≥80Ra |
| Power Factor | ≥0.5 |
| Lifetime | ≥8000Hours |
Principles of Energy Saving Lamps
Energy Saving Lamp is a type of light bulb which uses fluorescence as its primary means of creating visible light. An energy saving lamp consists of a glass tube which is coated with a fluorescent material on the inside. Fluorescent materials are able to absorb certain frequencies of light and then glow, emitting new light at a greater wavelength than they absorbed. Energy saving lamp tubes are filled with a mixture of gases containing trace amounts of mercury which becomes excited and emits ultraviolet light when an electrical current is sent through it. The ultraviolet light is absorbed by the fluorescent coating on the inside of the glass tube, and is converted into visible light which has a longer wavelength than ultraviolet light. The amount of energy needed to excite the gas is far less than the amount of energy needed to heat up the filament in a normal light bulb, and as a result, less energy is lost in the form of heat.
Advantages of Energy Saving Lamps
- No flicker,no glare,soon start.
- wonderful design,beautiful appearance.
- 80% energy saving than ordinary incandescent lamp,save cost.
- more than 8000hours lifetime,much longer than incandescent lamp.
- Excellent color rendering index.
- Energy Saving Bulb With PBT fireproof plastics material.
- Eco-friendly,eyes-protection.
- All color temperatures to choose,2700-6500K optional
- Application: Marketplaces, hotels, houses, offices museums etc.

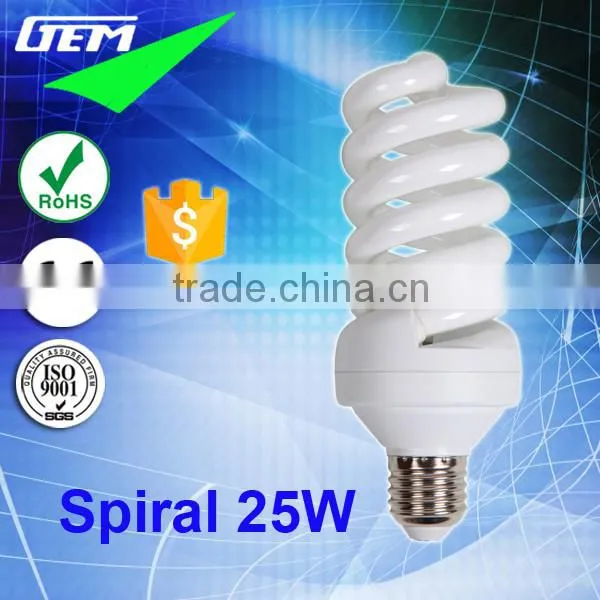

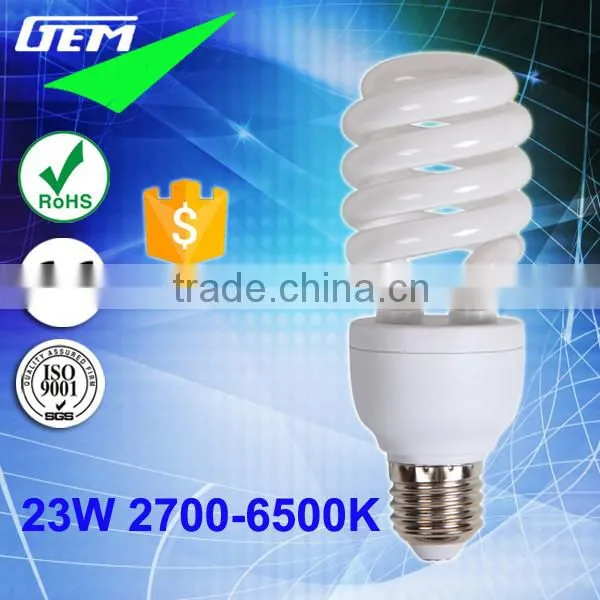

Pictures of Spiral 23W Energy Saving Lamps
Production Process
Box(color box/foam box/blister box) + Inner box+outer carton;
1piece/box; 10pieces/inner box; 50pieces/carton;
carton sizes are according to the detailed 23w lamp shapes.
Color Box Package:
Blister Box Package or Foam Box Package:
Shipping Way
Our Services
| Reputation | Our company has set up a reliable reputation around the world |
| Service | Good service are waitng for your visiting |
| OEM | Acceptable |
| Inquiry | Any inquiries will be replied within 24 hours. |
| Efficiency | Finish your requirements as soon as possible. |
| Concept | GEM.That means green,economic and modern. |
| Quality is first,service is second and the business is the third. | |
| Customer is first, staff is second and business the third. |
