Help CenterTitanium Pipe and Tube
Related Products
Specifications
Titanium Pipe and tube1.Ensure correct tolerance to titanium pipe with tube 2.Standard:ASTM338
3.material:Gr.1,Gr.2,Gr.3-----

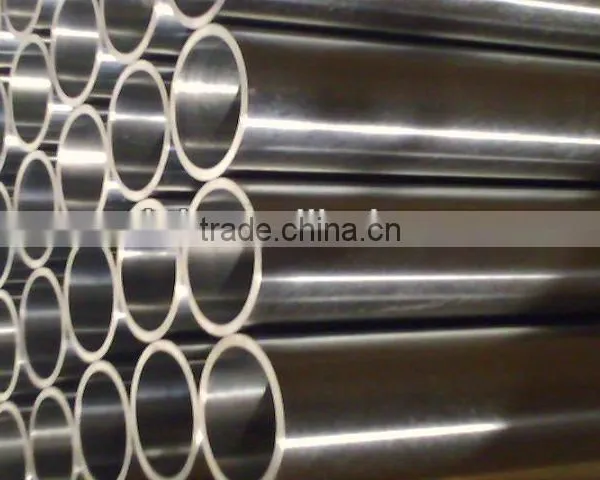

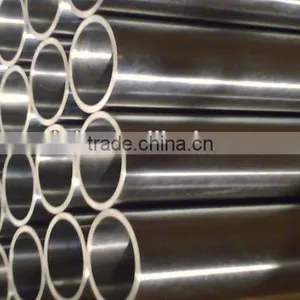

Titanium pipe and tube
ASTM338 titanium pipe with tube
Tensile requirements about ASTM338 titanium pipe with tube
Grade |
Tensile strength |
Yeild strength Mpa kis |
Elongation | ||
MPa |
kis |
min(max) |
min(max) |
% |
|
Gr1 |
240 |
35 |
138(310) | 20(45) |
24 |
Gr2 |
345 |
50 |
275(450) |
40(65) |
20 |
Gr3 |
450 |
65 |
380(550) |
55(80) |
18 |
Gr7 |
345 |
50 |
275(450) |
40(65) |
20 |
Gr9 |
620 |
90 |
483( ... ) |
70( ... ) |
15 |
Gr11 |
240 |
35 |
138(310) |
20(45) |
24 |
Gr12 |
483 |
70 |
345( ... ) |
50( ... ) |
18 |
Gr13 |
275 |
40 |
175( ... ) |
25( ... ) |
24 |
Gr14 |
410 |
60 |
275( ... ) |
40( ... ) |
20 |
Flaring requirements about ASTM338 titanium pipe with tube .
| Grade | GR1 | GR2 | GR3 | GR7 | GR9 | GR11 | GR12 | GR13 | GR14 |
|
Expansion of inside diameter, min,% |
22 | 20 | 17 | 20 | 20 | 22 | 17 | 22 | 20 |
Dimension and tolerance about ASTM338 titanium pipe with tube
|
Outside diameter, in.(mm) |
Diameter tolerance,in. |
Permissible variations ,in. wall thinckness,t, % |
25.4 |
±0.004( ± 0.012) |
±10 |
|
25.4-38.1 |
±0.005( ±0.127 ) |
±10 |
| 38.1-50.8 | ±0.006( ± 0.152) |
±10 |
| 50.8-63.5 | ±0.007( ± 0.178) |
±10 |
| 63.5-88.9 | ±0.010( ± 0.254) |
±10 |
1.Package:Plastic bags and form paper as inside,Wooden case as outside
2.We will choose the fastest ,cheapest and safest shipment way for you,such as
sea transportation,air transportation and land transportation, about ASTM338 titanium pipe with tube .
Factory Photo
Equipment Capacity
Enterprise Certification
Packing and Loading
Engineering Corperation
We Offer:
1. Cost control-manufacturing and exporting by ourselves;
2. Competitive price-without middlemen;
3. Quality guarantee-SGS, Mill Test Certificate, other test as ordered;
4. On-time delivery-30 tons production capability per month and developed logistics;
5. Competitive payment method-different and flexible payment method (full L/C, 20%-70%-10%......)
Applications:
Industry field, aerospace, architectural, automotive, biomedical, chemical processing, marine, military, oil, tooling, racing.
(1)Heat exchangers and condensers
(2)All kinds of corrosive fluid transmission pipeline system
(3)Titanium bicycle pipe, automobile exhaust pip
(4)Offshore aquaculture
Our Advantage:
First-class product,Reasonable price,The fastest delivery
Test:
Final product test: Ultrasonic test, Eddy current test, Hydraulic test, Bend test, Flaring test and so on.Third party inspection is acceptable
Welcome to our factory and contact us at any time !!!
