Specifications
400 Nickel Alloy Monel Pipe AssemblyOut Diameter: 6-72000mm
Wall Thickness: 0.5-40mm

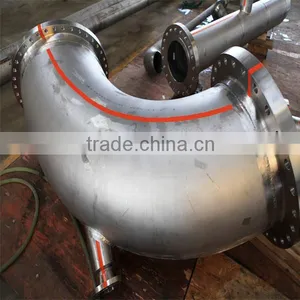

400 Nickel Alloy Monel Pipe Assembly
Supply Capacity: 10000 tons/year
Process Method: Cold drawn and cold rolled
Out Diameter: 6-72000mm
Wall Thickness: 0.5-40mm
Length: 6-25 meters
Steel Grade
200 (Ni: 0.8%), 201B (Ni: 3%), 201H (Ni: 5%)
301 (Ni: 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L, 316L, 316Ti
317, 317L, 309S, 310S(2520), 347, Duplex 2205, Duplex 2207, etc.
StandardsASTM / ASME, GB, DIN, JIS, T14975, etc.
SpecificationO. D: 1/4" - 62" (inch)
W. T: SCH5S, SCH10S, SCH40S, SCH80S, SCH160S, etc.
Or non-regular size to be tailored as required.
ApplicationHeat exchanger, Liquid delivery, Structure, etc.
| Grade | Chemical Composition | ||||||||
| C max | Si max | Mn max | P max | S max | Ni | Cr | Mo | Ti | |
| 200 | 0.15 | 0.35 | 0.35 | 0.010 | 99 min | ||||
| 201 | 0.02 | 0.35 | 0.35 | 0.010 | 99 min | ||||
| 400 | 0.30 | 0.50 | 2.00 | 0.024 | 63 min | ||||
| 600 | 0.15 | 0.50 | 1.00 | 0.015 | 72 min | 14 - 17 | |||
| 601 | 0.10 | 0.50 | 1.00 | 0.015 | 58 - 63 | 21 - 25 | |||
| 625 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 58 min | 20 - 23 | 8 - 10 | 0.40 max |
| 800 | 0.10 | 1.00 | 1.50 | 0.03 | 0.015 | 30 - 35 | 19 - 23 | 0.15 – 0.60 | |
| 800H | 0.05 – 0.10 | 1.00 | 1.50 | 0.015 | 30 - 35 | 19 - 23 | 0.15 – 0.60 | ||
| 825 | 0.05 | 0.50 | 1.00 | 0.03 | 38 - 46 | 19.5 – 23.5 | 2.5 – 3.5 | 0.6 – 1.2 | |
| 904L | 0.02 | 1.00 | 2.00 | 0.045 | 0.035 | 23 - 28 | 19 – 23 | 4 – 5 | |
Monel 400 Pipe
Detailed Brand:
1 Inconel alloy: Inconel 600, inconel 601, inconel 625, inconel 718
2 Incoloy alloy: Incoloy 800, incoloy 800H
3 Hastelloy alloy: Hastelloy C276, hastelloy X, hastelloy C
4 Monel alloy: Monel 400, monel K500
5 Austenitic stainless steel: 304, 304L, 310S, 309S, 316L, 316Ti, Duplex 2205, 2507
6 Nickel alloy: Nickel 52, nickel 48, nickel 60, nickel 99
Monel 400 Corrosion resistance
Monel 400 alloy in the fluoride gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives have a very good corrosion resistance property, and possess better corrosion resistance more than the copper alloy in the sea water. Acid medium: Monel 400 have corrosion resistance in less than 85% consistency of sulfuric acid. Monel 400 is an important material that resistant to hydrofluoric acid. Water corrosion: Monel 400 alloy in most corrosion cases of water, not only excellent corrosion resistance, but also less pitting, stress corrosion, the corrosion rate less than 0.025mm / a. High temperature corrosion: Monel 400 for the work of the highest temperature at about 600 in general in the air, in the high temperature steam, the corrosion rate less than 0.026mm / a. Ammonia: Monel 400 can be resistant to an hydrous ammonia and aminate conditions corrosion below 585 due to the high nickel.
Monel 400 Application field
Monel 400 alloy is a multi-purpose material in many industrial applications:
1). Seamless water pipe in the power factory
2). Sea-water exchanger and evaporator
3). Sulfuric acid and hydrochloric acid environment
4). Crude distillation
5). Sea-water in the use of equipment and propeller shaft
6). Nuclear industry and used in the manufacture of uranium enrichment isotope separation equipment
7). Manufacturing hydrochloric acid equipment used in the production of pump and valve
Factory Show
Equipment Show
Certificates Show
Project Show
Packing
1. With plastic cap to protect both ends
2. Plastic bag wrapped outside the pipe
3. Bundles to be covered by polythene & strapped securely.
4. If require, then pack into wooden box.
