High Inconel Welded Pipe
US$ 10 - 1,000
MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
5, 100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Metal Price per kgUS$ 10 - 100MOQ: 1 Ton -
Excellent Hastelloy C276 Pipes ManufacturerNegotiableMOQ: 1 Ton
-
Best Chinese Welded Titanium Pipe ManufacturersNegotiableMOQ: 10 Pieces
-
High Quality Tc4 Alloy Titanium Bend PipeNegotiableMOQ: 1 Ton
-
China Thick Wall Uns Ni201 Nickel PipeNegotiableMOQ: 1 Ton
Thickness
5, 100
Section Shape
Round
Outer Diameter
100 - 1000 mm
Place of Origin
Jiangsu, China
Secondary Or Not
Non-secondary
Alloy Or Not
Is Alloy
Application
Other, Industria inconel welded pipe
Surface Treatment
Other, Pickling, Passivation, Polishing
Certification
Other, SGS,BV,PED
Specifications
High Inconel Welded pipe1.Pass:ISO9001 certification
2.fine after-sale services
3.small order accepted
4.samples availab
Inconel Welded pipe
Chemical Composition
Characteristic as below:
1. Excellent corrosion resistance of different kinds of media in both oxidation and reduction environments.
1. Excellent corrosion resistance of different kinds of media in both oxidation and reduction environments.
2. Excellent resistance of pitting and crevice corrosion, and won't happen stress corrosion cracking because of chloride.
3.Excellent resistance of the inorganic acid corrosion performance, such as nitric acid, phosphoric acid, sulfuric acid, hydrochloric acid and the mixture of sulfuric acid and hydrochloric acid.
4. Excellent corrosion resistance of different kinds of inorganic acid mixture performance.
5. Good corrosion resistance of a variety of concentrations of hydrochloric acid when the temperature up to 40°C .
6. Good machining and welding, no weld cracking sensitivity.
7. Have pressure vessel authentication for the wall temperature between -196 ~ 450°C .
8. Apply for the highest standard lever VII of acidic environment by the NACE ( MR-01-75) authorized.
Inconel 625 Metallurgical structure
625 is face-centered cubic lattice structure. Dissolve out the carbon granule and instability quaternary phase, then change it to stability Ni3 (Nb,Ti) trimetric lattice around 650°C after a long time heat preservation. nickel-chromium content will strength the mechanical performance in the state solution while suppress the plasticity.
Inconel 625 Corrosion resistance
625 own a very good corrosion resistance in many media, especially with excellent resistance to pitting, crevice corrosion, intercrystalline corrosion, and erode in oxide, also good resistance to inorganic acid corrosion, such as nitric acid, phosphoric acid, sulfuric acid and hydrochloric acid. 625 can resist the alkali and organic acid corrosion in the oxidation and reduction environment. Effect resists the chloride reduction stress corrosion cracking. Normally no corrosion in the sea-water and industry environments since high corrosion resistance to the sea-water and salting liquid,as well as in high temperature, without sensitivity during welding. 625 have the resistance to oxidation and carbonizing in the static and cycle environments, also hacve the resistance the chlorine corrosion.

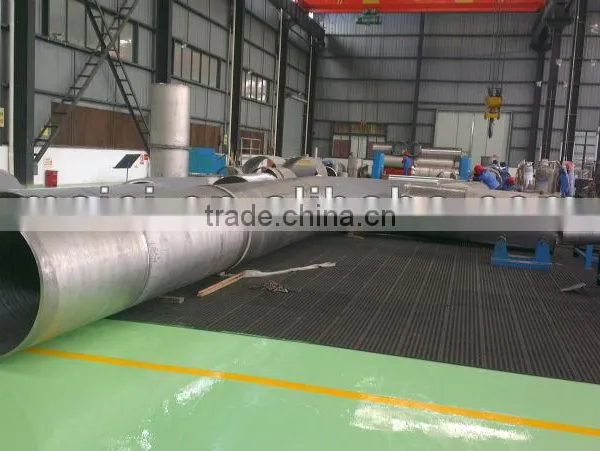

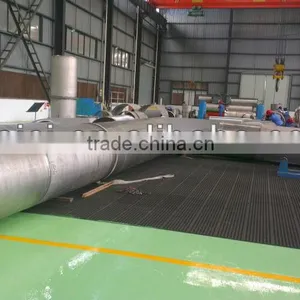

Factory Photo
Equipment Capacity
Enterprise Certification
Packing and Loading
Engineering Corperation
Welcome to our factory and contact us at any time !!!
