MDF Plywood Door and Furniture Lacquer Sanding Machine

MDF Plywood Door and Furniture Lacquer Sanding Machine photo-1
MDF Plywood Door and Furniture Lacquer Sanding Machine photo-2
MDF Plywood Door and Furniture Lacquer Sanding Machine photo-3
MDF Plywood Door and Furniture Lacquer Sanding Machine photo-4

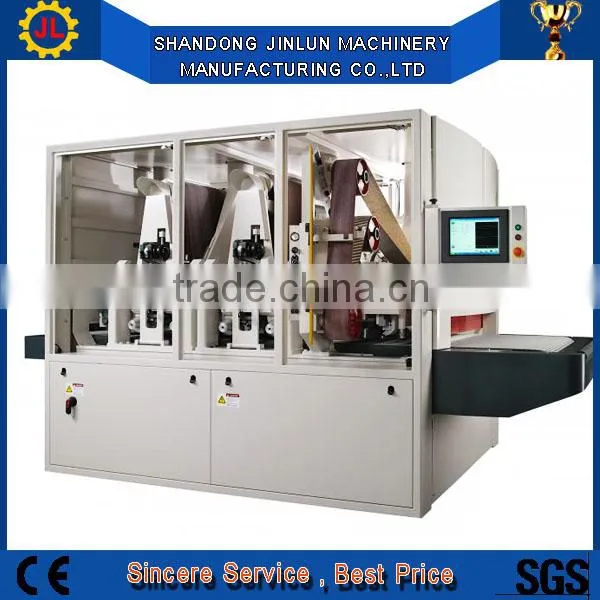

MDF Plywood Door and Furniture Lacquer Sanding Machine photo-5
MDF Plywood Door and Furniture Lacquer Sanding Machine photo-6
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sander
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Sander
Place of Origin Shandong, China
Brand Name JINLUN
Model Number JXR-R
Voltage 220V/380V
Power(W) 68-99KW
Dimension(L*W*H) 100*2820*2500mm
Weight 8500Kgs
Certification CE SGS ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

MDF plywood door and furniture Lacquer sanding machine

Plywood sander

Video watching site: /channel/UCCeci7m5Egz8bbu-QcqfDOg

     Video download site:/open?id=0B5KvIyj-K88OVWp5WmNTR1Mzclk

MDF plywood door and furniture Lacquer sanding machine

       This sander is designed for thickness calibration,surface sanding and fine surface polishing of MDF,

     multi-plywood, solid wood panel, solid wood flooring, multilayer solid wood laminate flooring, three

     layers solid wood laminate flooring, bamboo flooring, bamboo-wood laminate flooring, wooden floor,

     wooden window, wood plastic composite materials, etc.

    Parameters

Model

JXR-R-P600

JXR-R-P1000

JXR-R-P1300

Working Width

30~600

30~1000

30~1300

Working Thickness

2~110

2~110

2 ~110

Feeding Spee

6~38

6~38

6~38

Belt Size

650*1700

1020*2200

1320*2200

Sanding  Roll Size

190

190

240

Polishing Roll size

190

190

190

Work Voltage(mpa)

0.55

0.55

0.55

Wind Velocity(m/s)

25~30

25~30

25~30

Convey Power(kw)

1.5

1.5

1.5

Polishing roll power

4

4

7.5

Belt      Power(kw)

5.5

7.5

11

Total Power(kw)

11

13

18.5

Machine Size(mm)

1800*1000*2040

1800*1300*2040

1800*1600*2040

Machine Weight(kg)

1600

1800

2000

   Machine Specification:

    1.Adopting foundry frame, the sanding units can not be distorted and have good effect

        of vibration and absorption..

    2.Fault display makes maintenance and repair easy. When fault happens,the machine will

       be powered off, brake, the table fall and protect work pieces from being damaged.

    3.PLC is used to control the sanding belt sawing and thickness display, which guarantees

       the anti-jamming function of the machine.



MDF plywood door and furniture Lacquer sanding machine

Plywood sanding machine

MDF plywood door and furniture Lacquer sanding machine

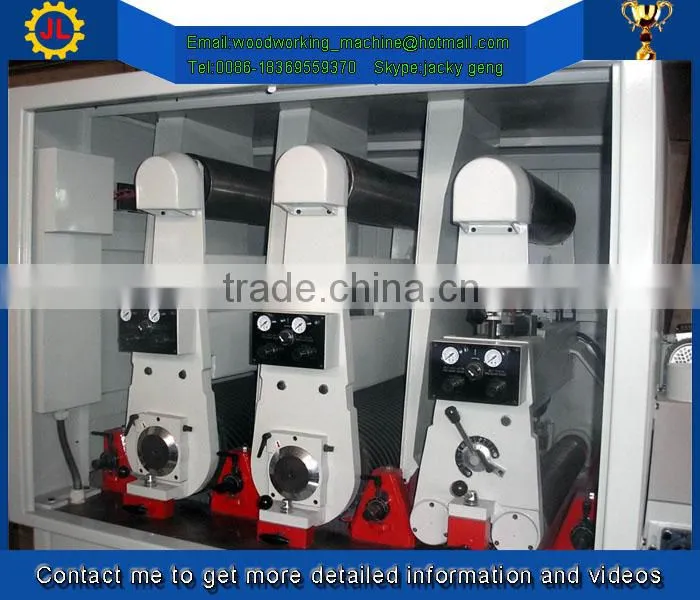

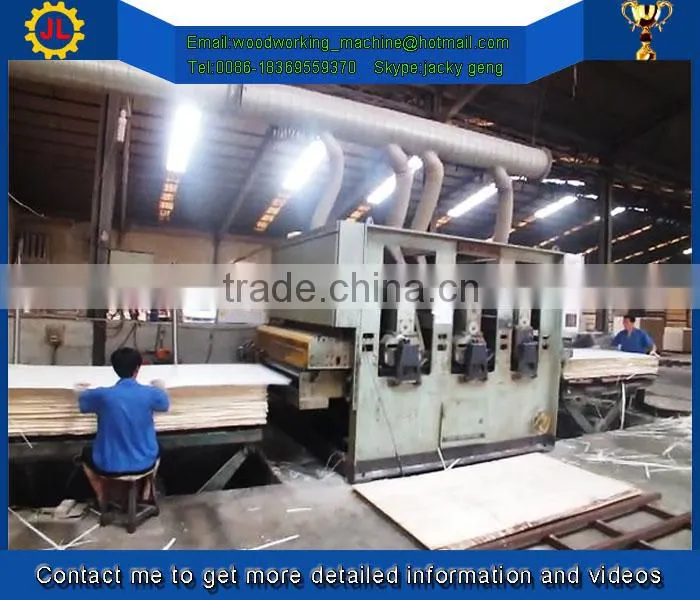

Working Picture Showing

MDF plywood door and furniture Lacquer sanding machine

MDF/plywood/door/furniture Sander

MDF plywood door and furniture Lacquer sanding machine

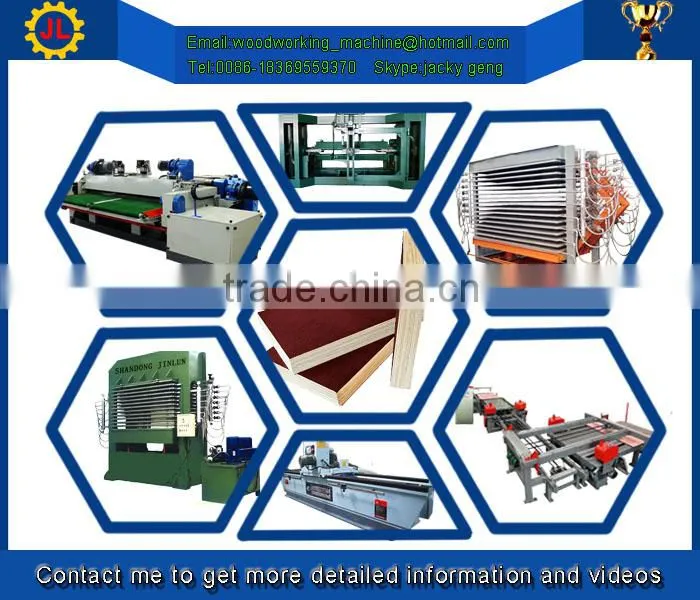

More Products

MDF plywood door and furniture Lacquer sanding machine

Packaging & Shipping

  Delivery Picture Showing

MDF plywood door and furniture Lacquer sanding machine

Company Information

  Company Information

MDF plywood door and furniture Lacquer sanding machine

      Our company is located in State-level economic development zone Linyi city Shandong

     province,The Jinlun machinery Co., ltd was initiated and established since 1999 ,We

     specialize in manufacturing veneer working peeling machinery.It has earned more than

     20 national patents and formed a whole series of high-technique equipments and a

     completely set of production line ,such as 4 feet ,8 feet ,10 feet of peeling machine for

     spindle and spindleless,hot press,cold press,plywood cutting saw,core veneer composer,

     glue spreader,sander ans so on.We are one of the largest professional manufacture

     factory in China.

         200 workers,50000 square workshop,17 years experience,ISO,CE,GS certificated.

     three factories,group corporation,this is how we keep good quality and sincere service.

World Sale Diagram

MDF plywood door and furniture Lacquer sanding machine

   Our machines own the highest domestic market share and exported to more than 20 countries,

     such as Vietnam, Thailand, Indonesia, Malaysia,Philippines,India,Pakistan,Turkey,Russia,

     South Korea, Brazil,Paraguay,Nigeria and so on.

Certificate Showing

MDF plywood door and furniture Lacquer sanding machine

Customer In Factory

MDF plywood door and furniture Lacquer sanding machine
