Specifications
2014 heating element low voltage CS 0301 CE certification
2 OEM sevice
3 Energy saving
4 safety
2014 heating element low voltage CS 030
Specifications of heating element
1.Compact design
2.High heating performance
3.Double insulated
4.Integrated thermostat(optional)

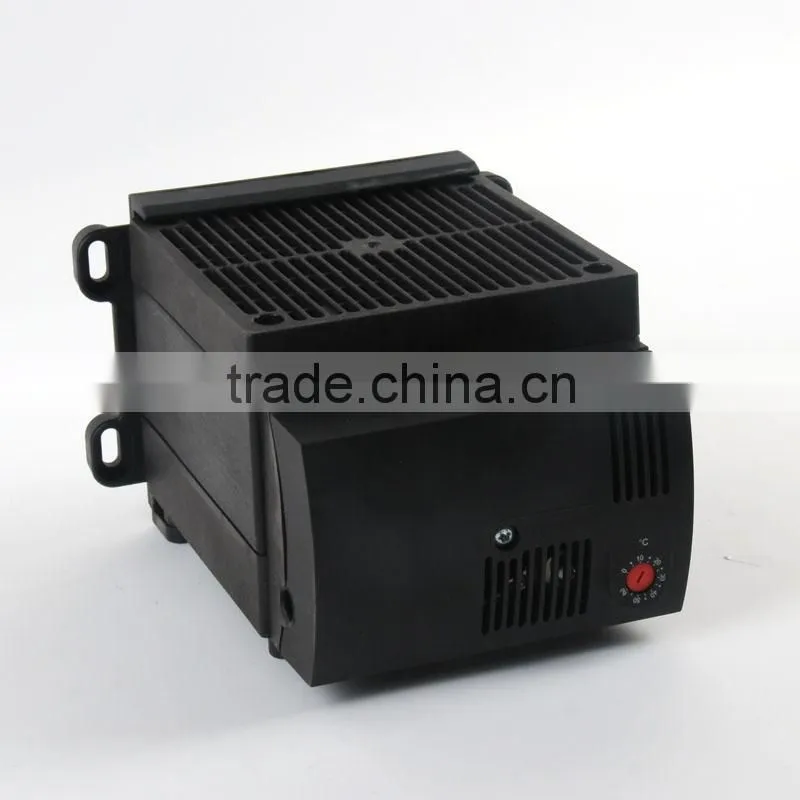

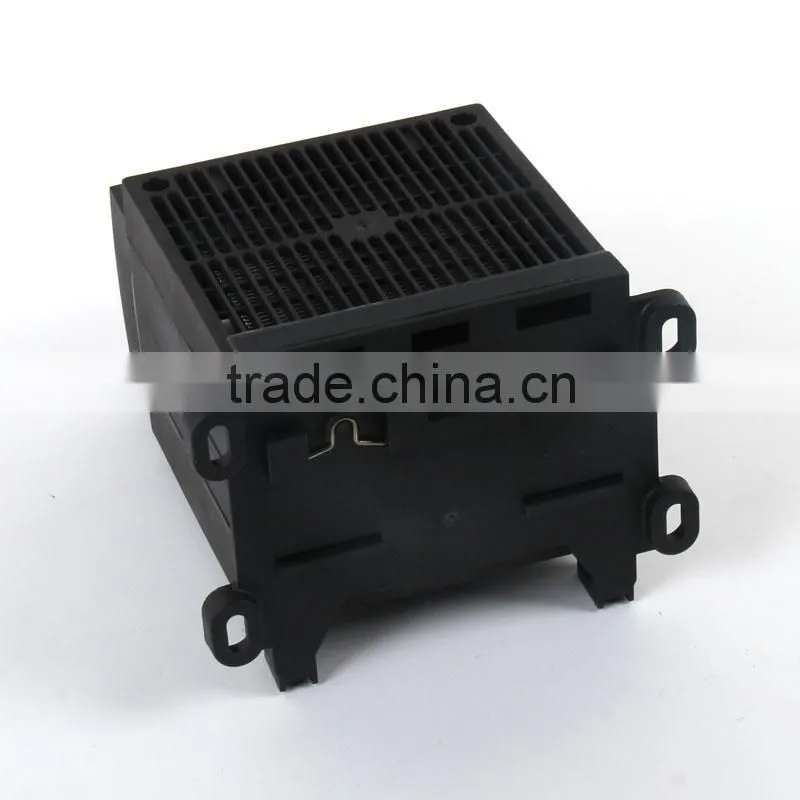

The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric / electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat for temperature control. The CS 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CS 030 is recommended .
Technical Data of heating element
| Heating element | PTC resistor - temperature limiting |
| Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
| Axial fan, ball bearing | airflow 160m³/h, free flow |
| service life 50,000h at 25°C (77°F) | |

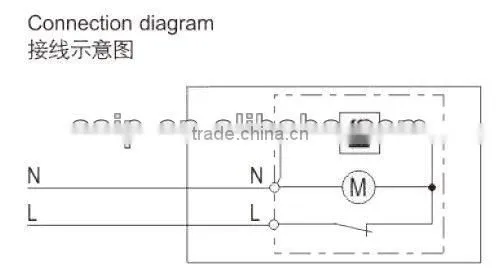

| Connection | 2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Mounting | screw fixing (M5) |
| Fitting position | horizontal |

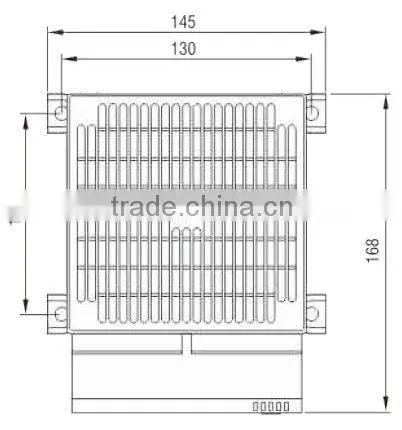

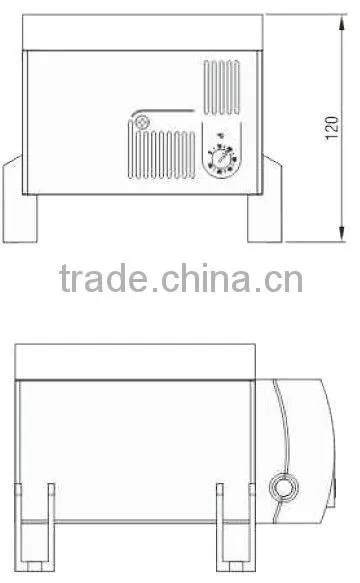

| Dimensions | 168*145*120mm |
| Weight | approx. 1.20kg |
| Operating / Storage temperature | -45 to +70°C (-49 to +158°C) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type / Protection class | IP20 / II (double insulated) |
Art.No. |
Model |
Operating voltage |

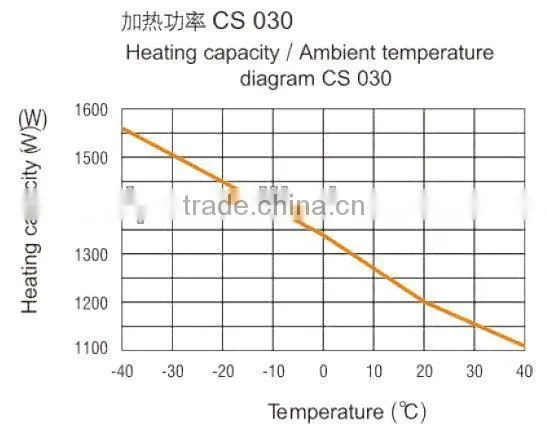

Heating capacity |
Setting range |
03051.0-00 |
Fan Heater with thermostat |
230VAC, 50/60Hz |
1200W |
0 to +60°C |
03051.0-02 |
Fan Heater with hygrostat |
230VAC, 50/60Hz |
1200W |
- |
03059.9-00 |
Fan Heater with thermostat |
120VAC, 50/60Hz |
1200W |
+32 to +140°F |
Product detail of heating element
