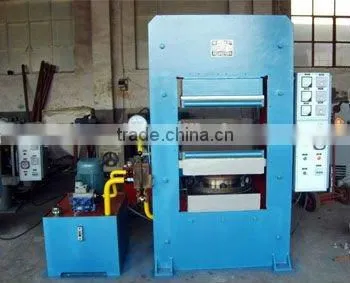

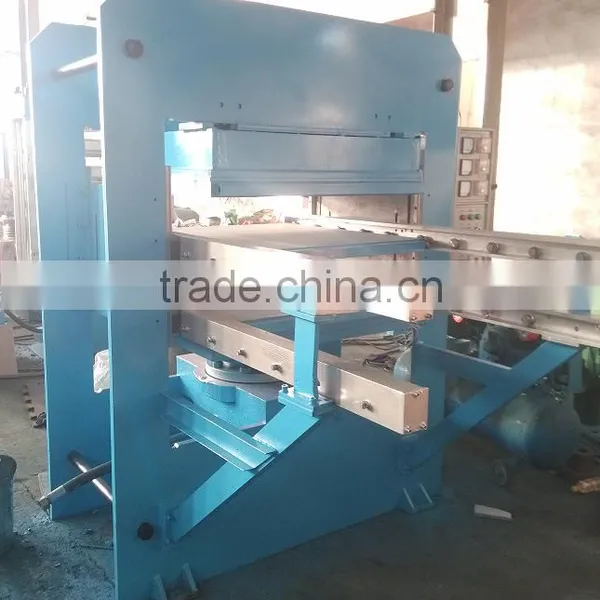

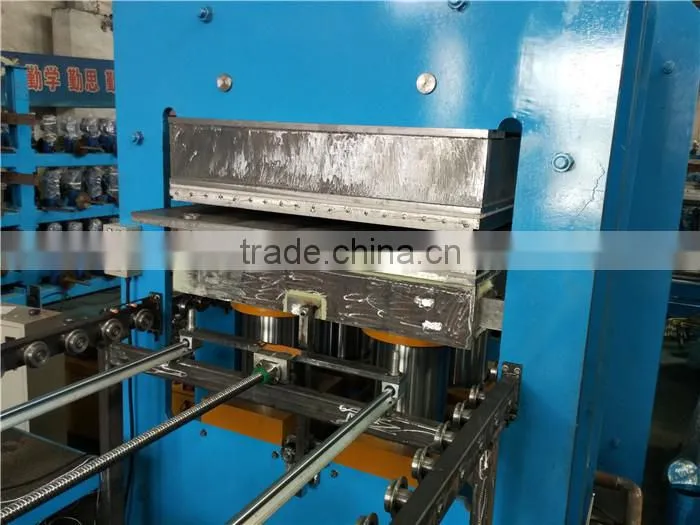

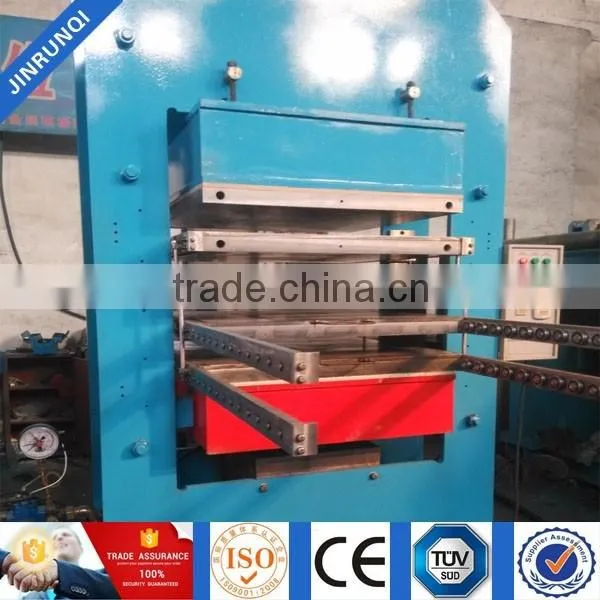

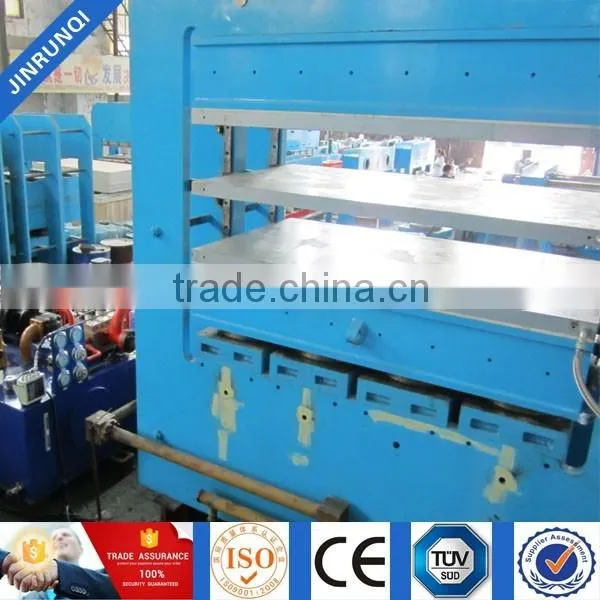

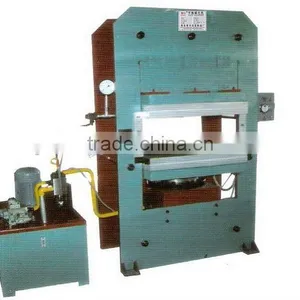

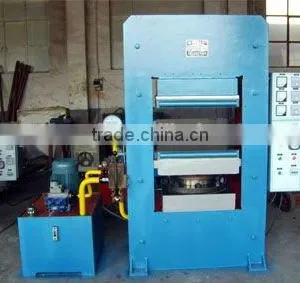

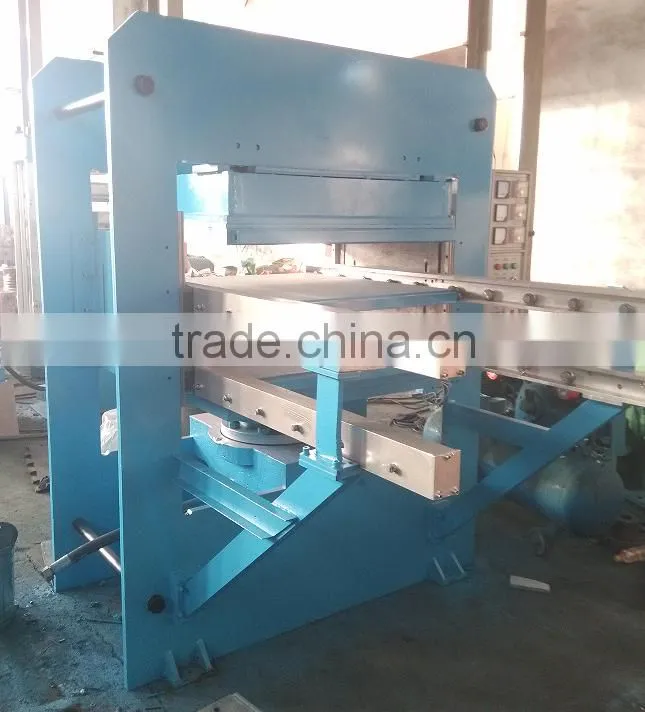

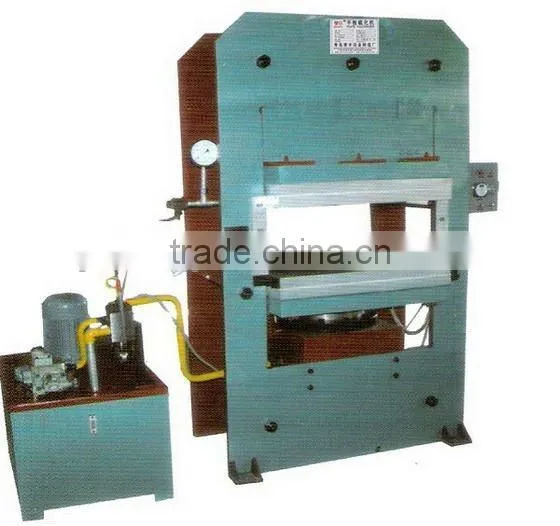

Hot Rubber Hydraulic Molding Press Machine a frame structure, which make it easy to remove the speed humps .So it have a more bigger distance than the speed limiting humps making machine with automatic push-out mold system.Increase the layeres of the machine can produce more speed hump a time.
Vulcanizer Type rubber moulding press has several types for your choice.
ITS MAJOR CONSTRUCTION DETAIL
- Press frame : made out of steel Q-235
- Capacity : from 100 ton - 5000 ton
- Cylinder : Cylinders made out of Solid Steel Forging material.
- Pressure ring : gunmetal ring
- Oil seal : Chevron packing oil seal
- Mould :Made out of M.S. Prime Plate Tested material, accurately machined finished and Hard Chrome Plated. Moulds are hydraulically pressure tested to ensure no leakage.
- Heating methods : steam , thermic fluid
- Operation : manual , automatic , PLC
-
Many Specifications are available.
Structure:Frame structure
Pressure:500 ton
Plate unit pressure:4.2Mpa
Plate size:1700×700×70
Daylight:280mm
Layer: 2
Plunger Diameter:φ360mm
Piston stroke: 400mm
Working fluid pressure:16.5Mpa
Cylinder No.:3
Close/Open mold speed:≥10/15 mm/s
Low/High pump moter power:5.5kw+3kw
Total weight: 15000kg
Packaging: Standard seaworthy packing or as the customer's requirement for sales Service Provided and Vulcanizer Type rubber moulding press
Delivery: 30-60 workdays for production of Vulcanizer Type rubber moulding press
Shipping: Shangdong.QingDao
Export packaging standard : channel steel fixed at the bottom and covered with plastic sheet
Warranty :1 year for quality guarantee of hydraulic press for rubber speed bump vulcanizing press machine
24 hours technical support by email
Calling or door - to -door service.
Provide videos for each machine.
Installation terms and training for Vulcanizer Type rubber moulding press
