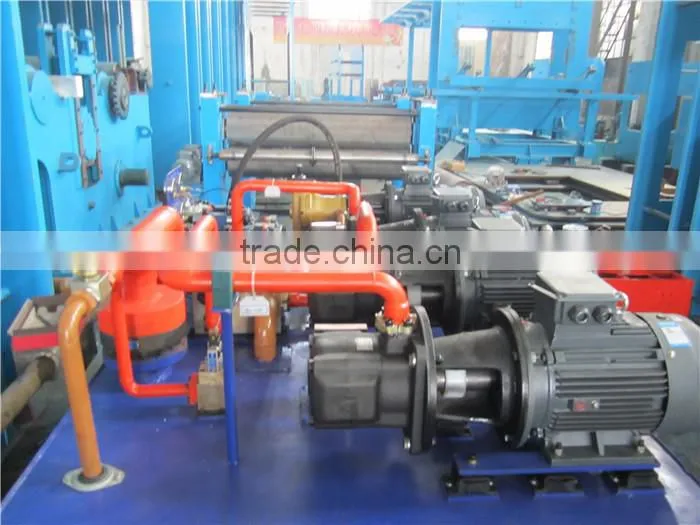

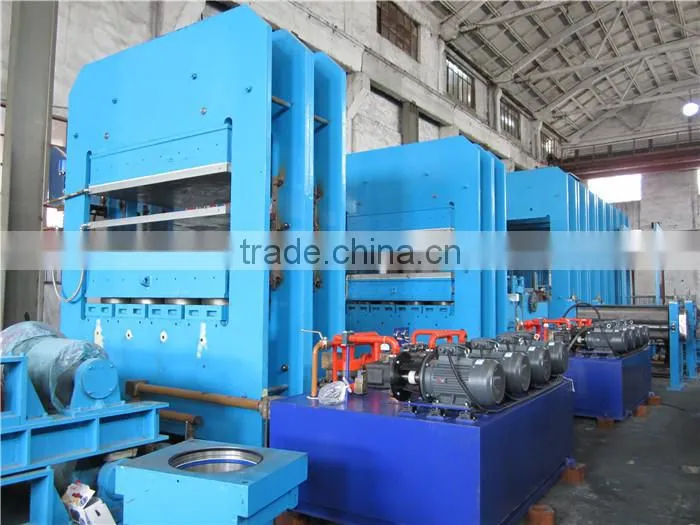

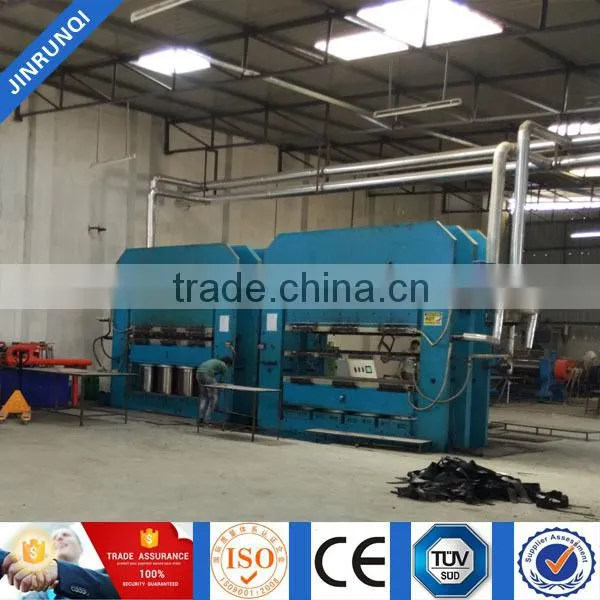

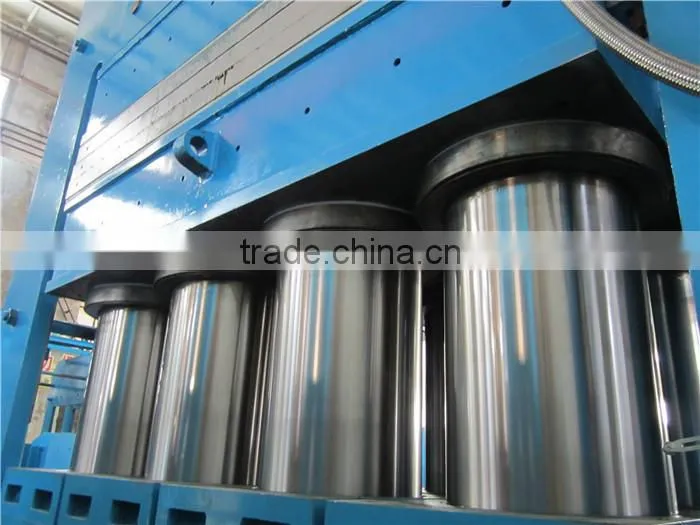

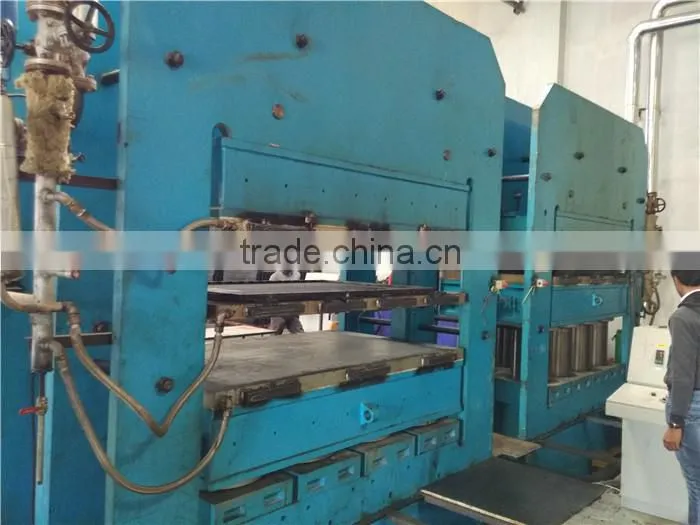

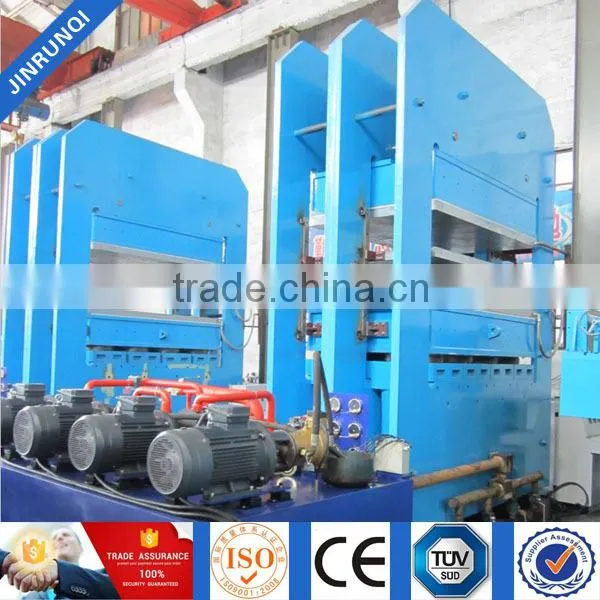

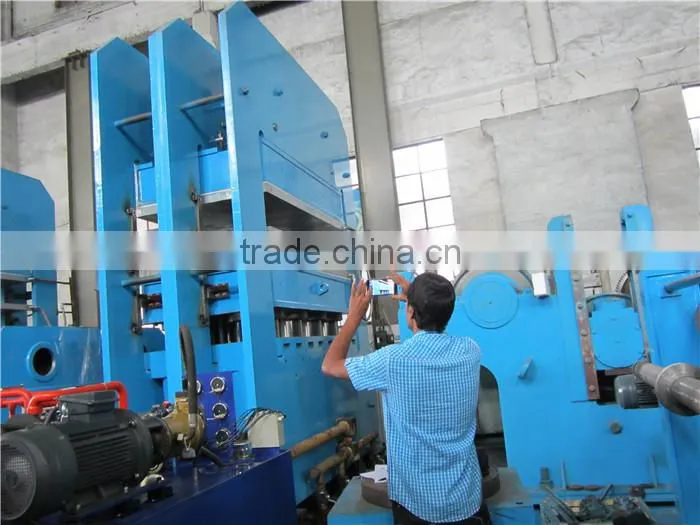

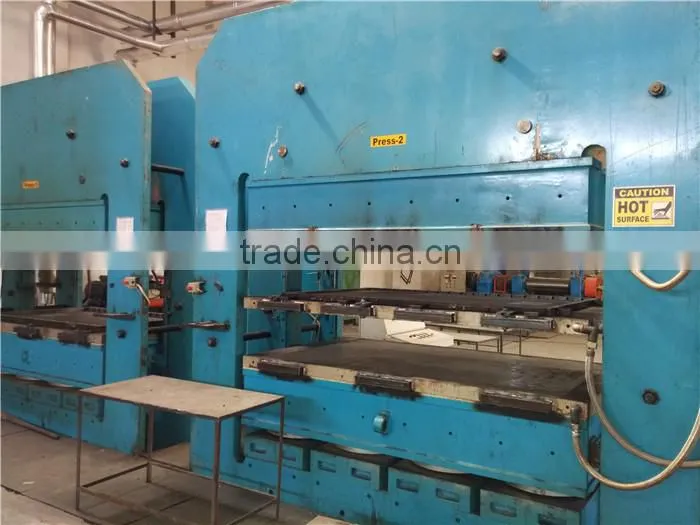

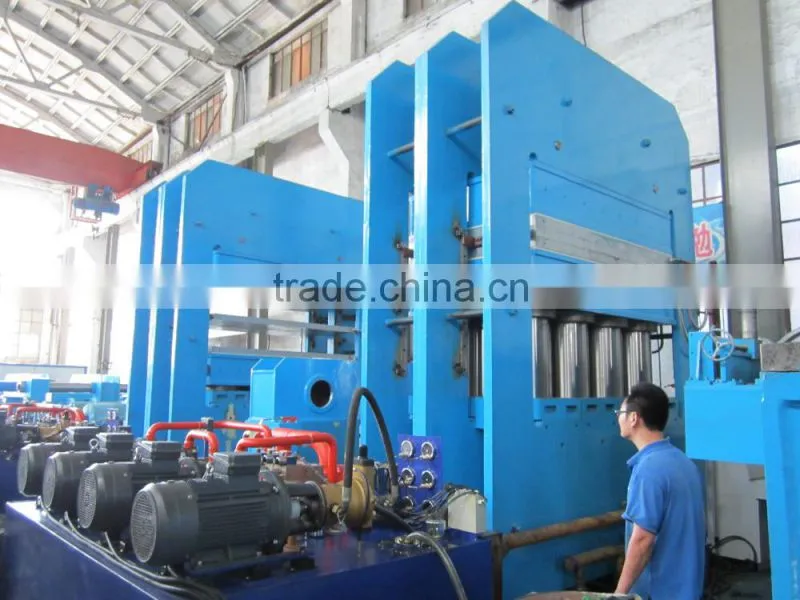

Large rubber matting vulcanizing press moulding machine
Structural features:
- The machine with automatic lifting, automatic exhausting, curing time, alarming and open mould automatically so as to improve the production efficiency.
- This series of products have high press in unit area, so that could ensure the quality. Machine can be equipped with pulling and pushing devices to reduce work strength. Depend on customerss requirements, manual control, electrical control and PLC control is optioanl.
- Electrical system adopts PLC control, convenient and correct.
Applications:
- To produce large rubber band, damping and also to produce solid tire.
- This machine could produce rubber watertight strip, rubber tile and other hot-pressed materiall products.
Main technical Data:
Type |
1500×2000 |
1800×1800 |
2000×2000 |
3000×3000 |
3100x4200 |
Norminal Mould Clamping Force(MN) |
12.00 | 20.00 |
20.00 |
31.50 |
48.00 |
Plate size (mm) |
1500×2000 |
1800×1800 |
2000×2000 |
3000×3000 |
3100x4200 |
Daylight of plate (mm) |
300 |
300 |
300 |
800 |
250 |
Working layer number |
2 |
2 |
2 |
1 |
1 |
| Diameter of piston | 500 | 500 | 600 | 600 | 600 |
| Stroke of piston | 600 | 600 | 600 | 800 | 250 |
| Unit area pressure of hot palte |
4.0 | 6.17 | 5.0 | 3.5 | 3.7 |
| Main motor power | 17.5 | 20.5 | 22 | 61 | 66 |
| Number of cylinder | 4 | 4 | 4 | 6 | 12 |
| Overall size ( L x W x H ) | 2000x2500x4040 | 2500x2300x4100 | 2500x2500x4180 | 4500x4820x4200 | 4800x6500x4500 |
| Weight | 30000 | 35000 | 42000 | 85000 | 140000 |
| Speed of closing (mm/s) | ≥6 | ≥6 | ≥6 | ≥5 | ≥4 |
| Speed of opening (mm/s) | ≥4 | ≥4 | ≥4 | ≥3 | ≥3 |

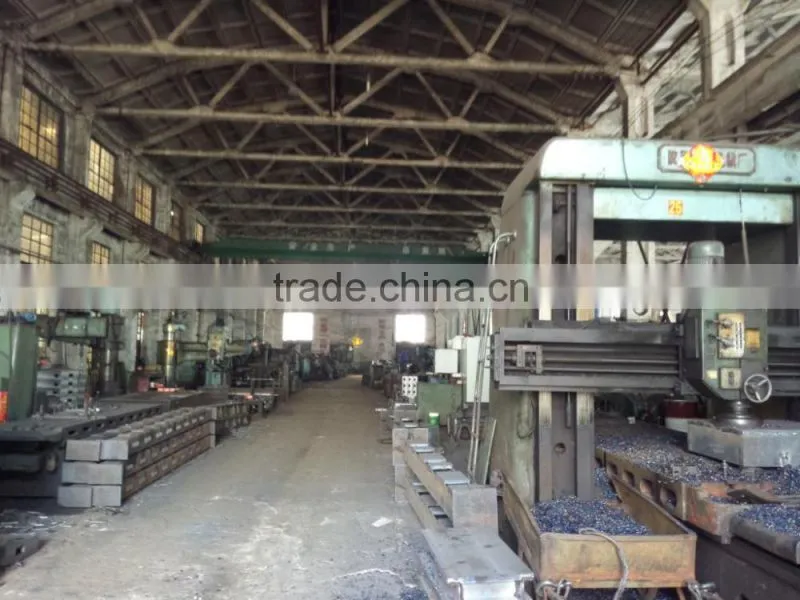

We are QINGDAO Jinrunqi Rubber Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
Also we can make non-standard rubber machinery as customer’s requirements.
