Company information We are 100% factory
Qingdao Jinrunqi Rubber Machinery Co.,Ltd.
Our main products of are: various types of Conveyor belt vulcanizing press,rubber fining mixer,rubber crusher,plate vulcanizer,rubber cutter and other kinds of rubber machinery.we can also make all kinds of nonstandard rubber machines according to customer's requirement.
With many years producing and selling experience, we try our best to produce products with high quality and high standard,our tenet is “we seek survival with quality and technology in our products.we win market and earn reputation with good faith and brand.” Shredded Rubber Tire
Products Description

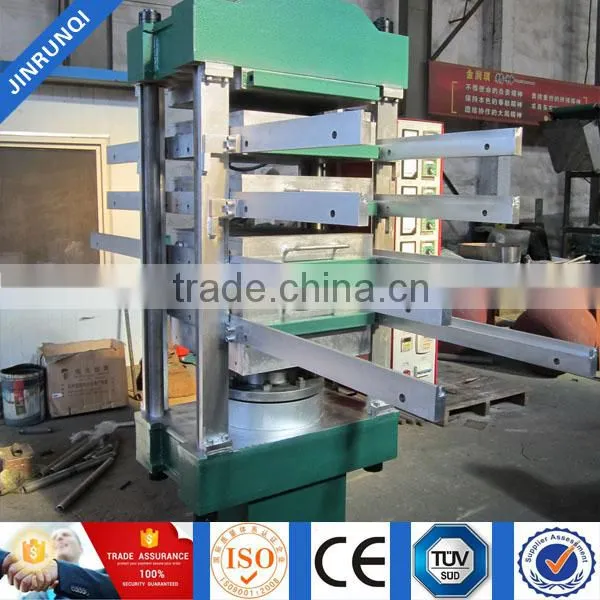

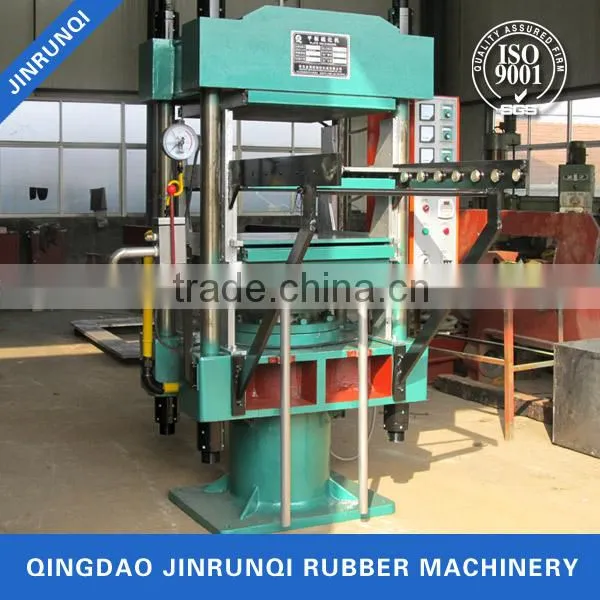

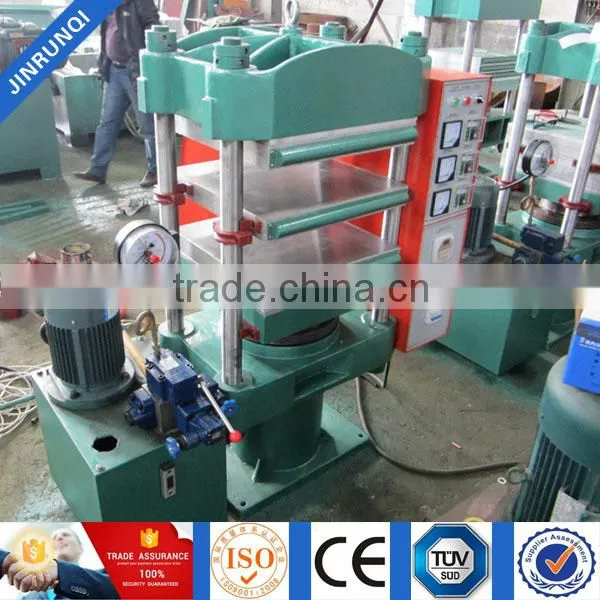

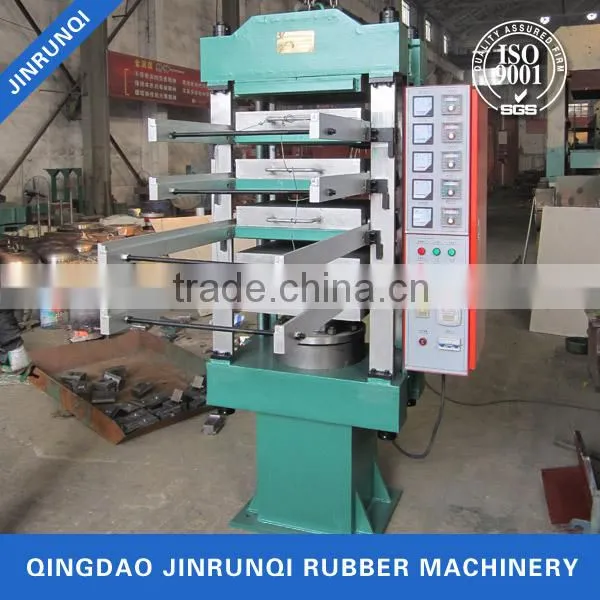

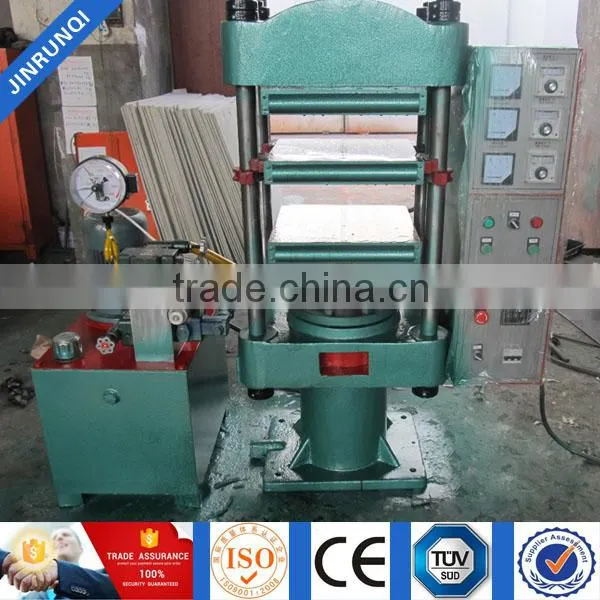

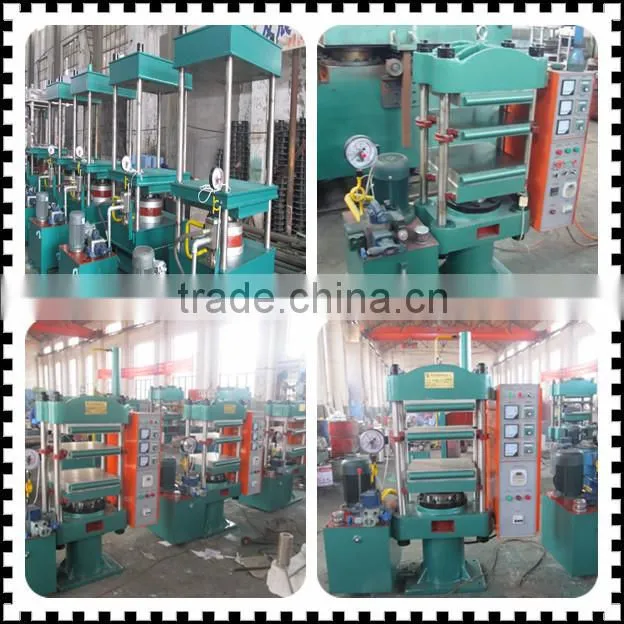

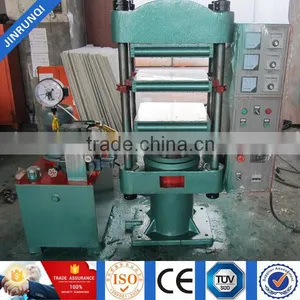

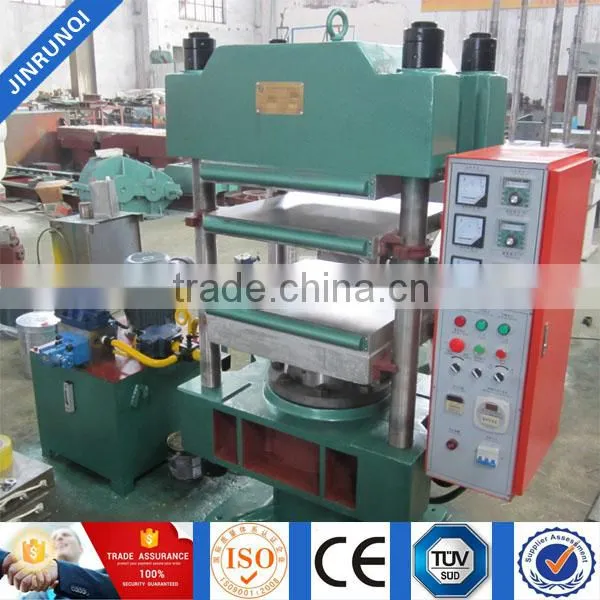

Plate vulcanizer is the machinery which produce all of kinds of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on. this kind machinery has three types of frame type, pillar type, and jaw type(for some round rubber products). It is economical, advantage of compact structure, high working pressure, high producing efficiency,. Operation is safe and reliable. Also we can provide all kinds of sizes, types, and operation ways according to the customer’s request. Shredded Rubber Tire

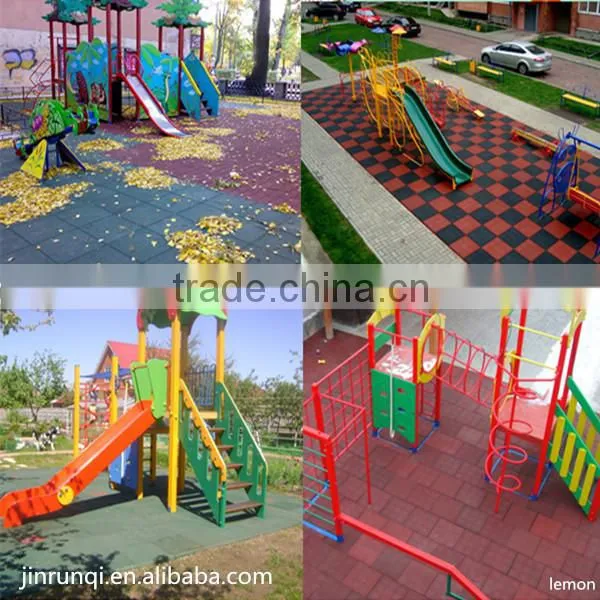

Floor Tile Making Machine

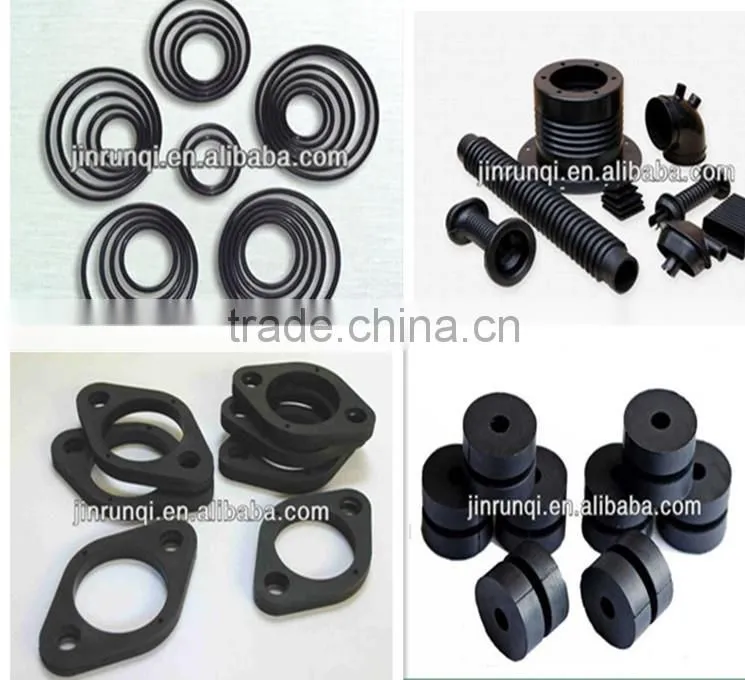

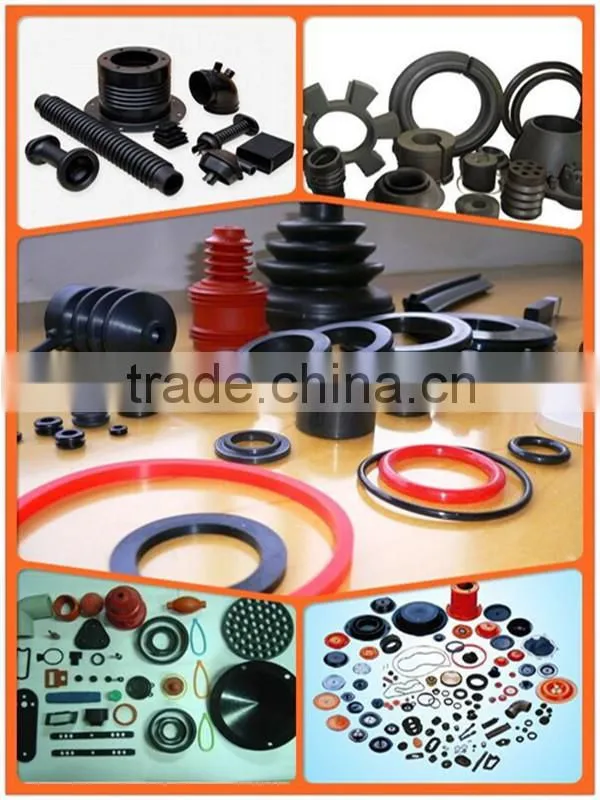

It is applied to produce O rings , Sealing ring ,Rubber Sheet ,other rubber products if you have the mould. Floor Tile Making Machine

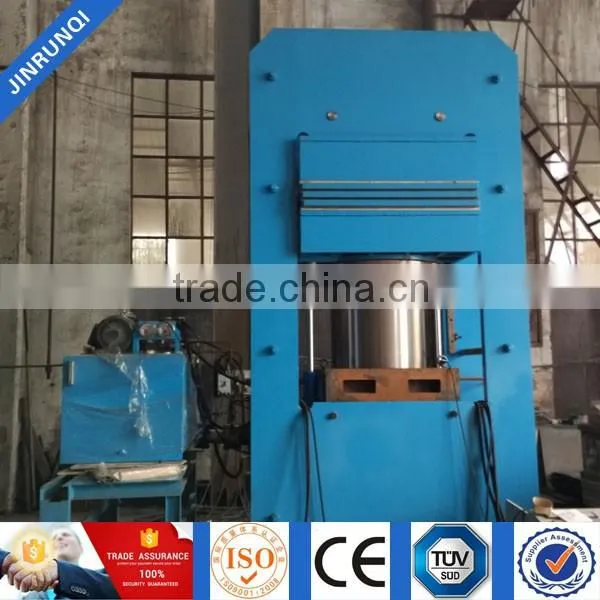

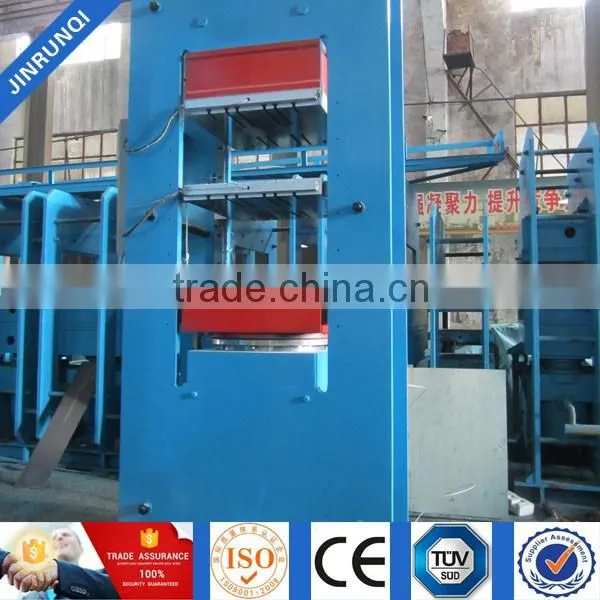

Frame type plate vulcanizing press is used for pressing rubber products and thermosetting plastic products, and also be used to make seals, project rubber and rubber plate, rubber sheet, rubber waterstop, Air Spring, Bridge Bearing etc. High unit pressure ensures good rubber products quality. Based on different products, the machines can be equipped with model pulling and pushing device to reduce manual labor. Manual control, electrical control and PLC control is optional. Shredded Rubber Tire Floor Tile Making Machine Floor Tile Making Machine
1. The machines with its frame structure, is easy to handle and convenient to use. The two deckle boards, with its holistic processing, are of the same size. This ensures no error on the depth of parallelism; the up and down platforms, are processed after being distressed and annealed. This helps keep its shape. The hot plates, being ground finished, ensures an error of less than 0.01.And it can be lifted and lowered with quickly or slowly according to the customers’ requirements.
2. The main parts, pistons, are made of cold and hard alloys, abrasion index can reach 100%. With a main oil seal, its service life can reach 5 years without change.
3. Operation modes of this machine can be divided into manual and automatic mode. The heating methods can be divided into electric heating and hot oil heating.
Plate Vulcanizing press
| Type | 350*350*2 | 400*400*2 | 500*500*2 | 600*600*2 | 750*850*2 | 600*600*2 |
| Nomnal clamp mould force | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.0 |
Piston size |
350*350 | 400*400 | 500*500 | 600*600 | 750*850 | 600*600 |
| Number of working layer | 2 | 2 | 2 | 2 | 2 | 2 |
| Piston diameter | 150 | 200 | 250 | 300 | 360 | 400 |
| Stroke of piston | 250 | 250 | 250 | 250 | 500 | 300 |
| Piston diameter hot plate | 125 | 125 | 125 | 150 | 250 | 150 |
| Unit area pressure of hot plate | 2.1 | 3.1 | 3.2 | 2.78 | 2.5 | 5.6 |
| Power | 2.2 | 2.2 | 2.2 | 2.2 | 3.0 | 3.0 |
| Overall size(L*W*H) | 1500*400*1350 | 1800*500*1700 | 1800*550*1600 | 2000*700*1700 | 2000*1000*1900 | 2550*960*2100 |
| Weight | 1000 | 1500 | 2000 | 2600 | 4300 | 5000 |
| Close mould speed | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
|
Opent mould speed |
≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
Frame Type Plate Vulcanizer
| Type | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
| Nomnal clamp mould force | 1.60 | 2.00 | 2.50 | 3.15 |
| Piston size | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
| Number of hydro-cylinder | 1 | 1 | 1 | 1 |
| Piston diameter | 360 | 400 | 450 | 500 |
| Stroke of piston | 300 | 300 | 300 | 300 |
| Piston diameter hot plate | 300 | 300 | 300 | 300 |
| Unit area pressure of hot plate | 2.5 | 2.0 | 1.8 | 1.5 |
| Power | 3.0 | 5.5 | 8.0 | 8.0 |
| Overall size(L*W*H) | 900*1600*2500 | 1100*1900*3600 | 1300*2100*4000 | 1600*2450*4200 |
| Weight | 4000 | 5800 | 6800 | 8000 |
| Close mould speed | ≥6 | ≥6 | ≥6 | ≥6 |
| Opent mould speed | ≥4 | ≥4 | ≥4 | ≥4 |

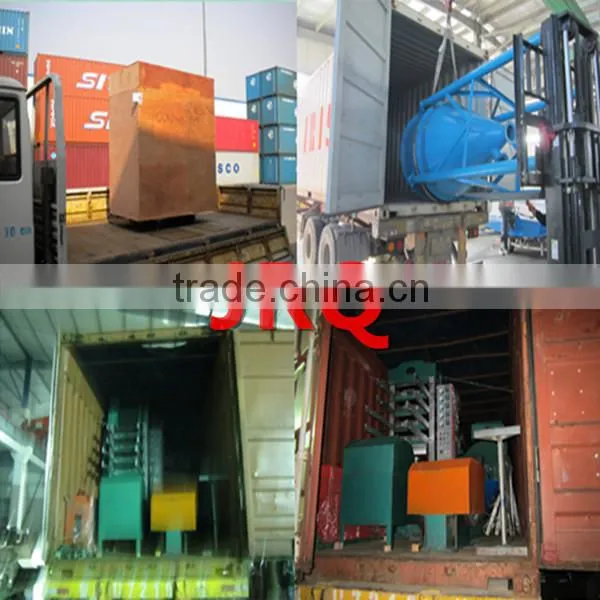

playwood box
Receipt of deposit 30-60 days delivery
We welcome everyone to visit and negotiate business.let you come happily ,go back satisfactorily on the basia of high quality products and warm service.
