Specifications
1/ the optimal Solution for Die Making Automation2/ automatic Feeding,bending,double side broaching,briging ,cutting function

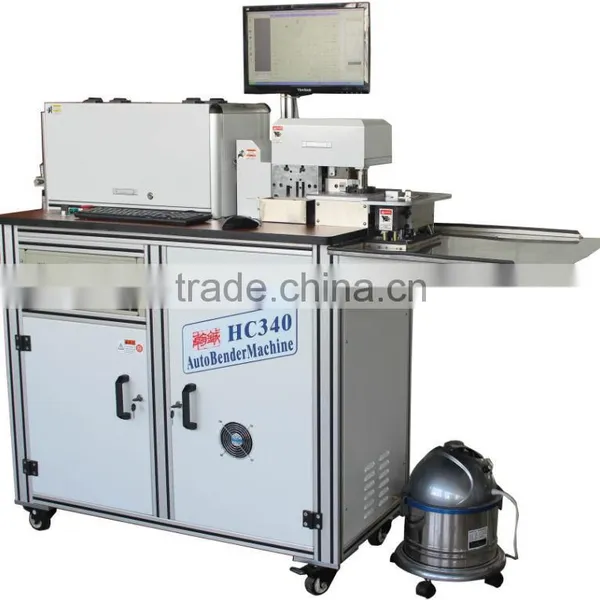

Auto Bender Machine from New Hancheng
Product introduction:
Hancheng Auto Bender Machineis operated by Auto Bender Manager, a professional driving program with artificial intelligence and standard Windows style. The users can finish almost any work on the computer.
Auto Bender Machine has the strongest plotting function among all auto bender driving software. It is not worse than professional CAD plotting software. Users can edit graphics easily in Auto Bender Manager.
Specifications:
Material Form |
roll ,strip(1000mm) |
Specification |
0.71× 23.8mm,1.07× 23.80mm |
File formats |
dxf,dwg,nc,abd,cff2,ddes2,ai |
Weight |
480kg |
Measurements |
2600 × 700 × 1500mm |
Power |
Three-phase four lines AC 380V+/-5% 50Hz,AC220V |
Air pressure |
0.5 ~ 0.8MPa |
Technical parameters:
Capability |
Thickness |
|||
0.45mm |
0.53mm |
0.71mm |
1.07mm |
|
Max bending angle |
100 ° |
95 ° |
90 ° |
90 ° |
Min 90 ° bending radius |
1.0mm |
1.0mm |
1.0mm |
1.5mm |
Min head end length |
1.5mm |
2.0mm |
2.5mm |
3.0mm |
Min tail end length |
1.5mm |
2.0mm |
3.0mm |
3.5mm |
High accuracy, high efficiency
1. It supports several document formats such as dwg, dxf, nc, cff2,ddes2,ai. It also supports network file transfer.
2. Excellent forbending rulesfor cartons and complicated graphics.
3. It controls blade length precision automatically and it is not necessary to edit compensation length manually. You don’t have to test the blade again and again; just one bend and you will have what you want.
4. Multi-task design: Users can open several graphics files at the same time and put several figures together bending. Latency time is reduced.
5. It takes one minute to change the bending tools.This is our Patented Technology.
6. Auto Bender Manager is similar to AutoCAD. All users of AutoCAD can use Auto Bender Manager easily.
Inexperienced users can use simulation bending function provided by Auto Bender Manager to avoid operation errors
Safety &Expertise
1. The program can control the working speed automatically when operation line corner, arc corner, cutting or overlong figures etc., and in the procession of working, the users can choose “stop”, “emergency stop” and “step by step” to guarantee safety.
2. Auto Bender Manager can optimize itself automatically when dealing with intersection, tangency, connection, break point, etc. and users can eliminate ill tangency or ill connection in the drawings by pre-setting.
