SND Lamella Doctor Blade
Negotiable
MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SND
Model Number:
Standrad
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GNUI Standard Doctor BladeUS$ 1 - 210MOQ: 5 Boxes -
SCHNEIDER Premium Preground Doctor BladeNegotiableMOQ: 1000 Meters
-
SND Preground Doctor BladeNegotiableMOQ: 1000 Metric Tons
-
GNUI Standard Doctor BladeNegotiableMOQ: 1000 Meters
-
SCHNEIDER Stainless Printing Doctor BladesNegotiableMOQ: 1000 Meters
Place of Origin
Fujian, China
Brand Name
SND
Model Number
Standrad
Type
Doctor Blade
Use
Other, Whatever
Printing Type
Other, Gravure/Flexo Printing/Coating/Polishing
Specifications
1. SND Pre-grounded Doctor Blade2. Professional manufacturer
3. Suitable for Gravure/Flexo Printing/Coating/Polishing

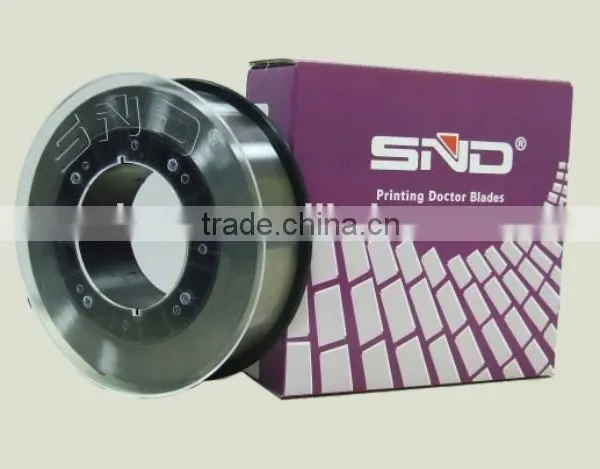

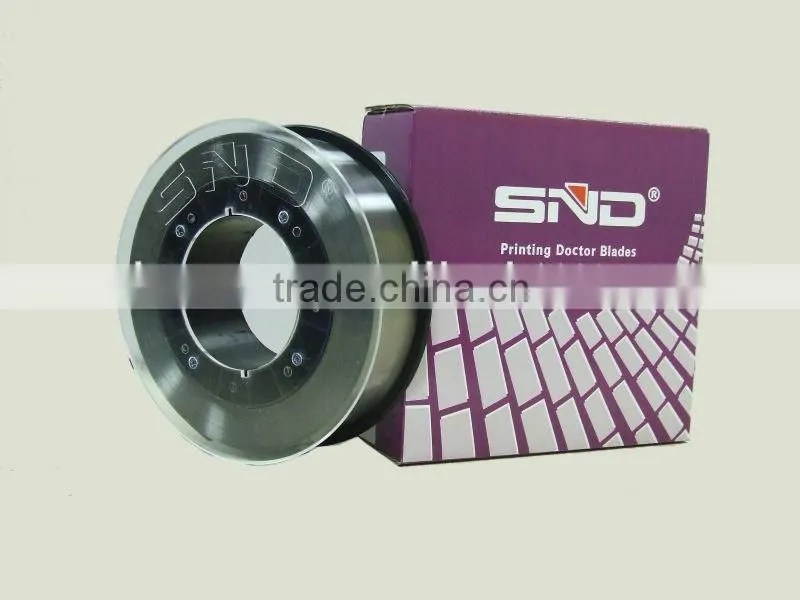

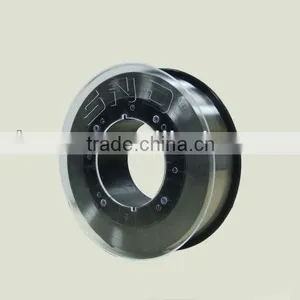

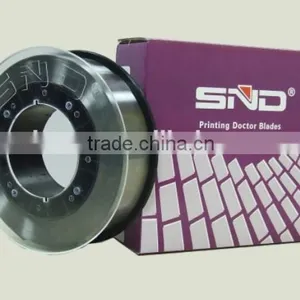

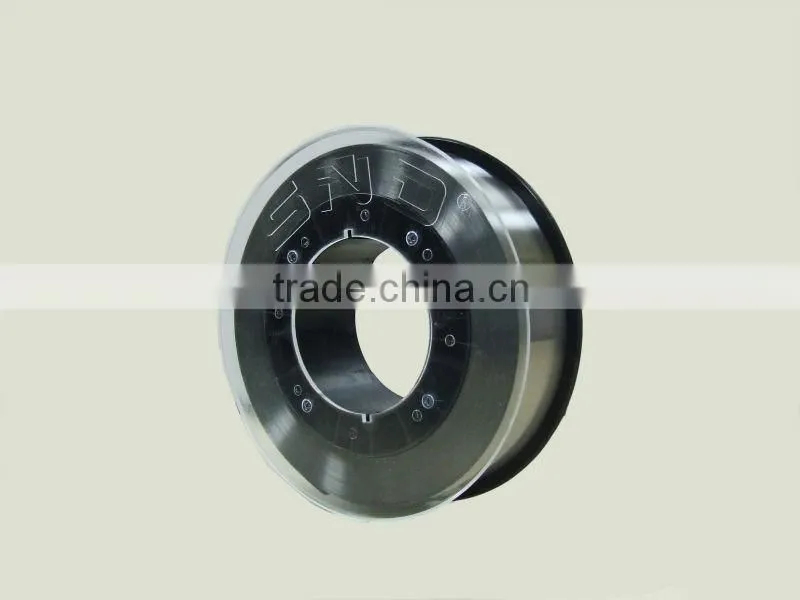

SND Lamella Doctor Blade
Product Introduction:
SND Pre-grounded Doctor Blade are made of Swedish high quality steel strip, with high precision and advanced grinder and high quality polishing machine, the blade has high flexibility, durability and high straightness. With a unique processing treatment on the blade tip, the blade without streaks when in printing and extend the blade life.
SND Pre-grounded Doctor Blade especially suitable for high precision, multi-level delicate printing and apply to medium/high speed press.
Technical Data:
| Brand: | SND | Application: | Gravure/Flexo Printing, Coating, Polishing |
| Blade Thickness: | 0.152mm/0.203mm(0.006"/0.008") | Certificate: | ISO9001:2008 & CE |
| Blade Width: | 10mm-60mm(0.394"-2.364") | Tensile Strength: | 1960N/mm 2 |
| Tip Thickness: | 0.075mm-0.125mm(0.003"-0.005") | Hardness: | 580HV |
| Tip Width: | 1.3mm-1.7mm(0.051"-0.067") | Packaging: | 100M/box or by request |
| Material: | Carbon Steel | MOQ: | 1 Box |
