Specifications

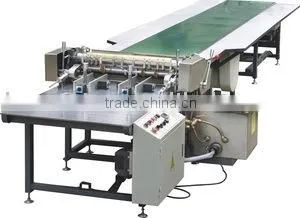

This is used glue cover papepaper for for making book cover, rigid box, set up box, etc.HM-650B Gluing Machine (coverpaper pile fed by rubber wheels) is suitable for feeding and gluing the paper which is for making book cover, rigid box, set up box, etc.
It has the function of automatic feeding paper and gluing, automatic temperature control and 24-hours timer.
The suction devices for the assembly lines prevent cover paper from curling and bubbling.
Rubber wheels are used for paper feed in a rolling manner, which contributes to the characteristic of steady and quick paper conveyance.
Hot melt adhesives (animal adhesives) are used for health and environmental protection, and they also save cost because of the recycle system and the adjustable speeds .
Ps:
1, Standard 5m working table; 7m, 9m working table can be customized per to the customer's need.
2, Remodel for white glue.
There are 3 sizes for this Gluing Machine, as the following machine parameters:
Model |
HM-650B |
HM-750B |
HM-850B |
Case Size |
W80-600mm |
W80-700mm |
W80-800mm |
Sheet Thickness |
80-200g |
80-200g |
80-200g |
Cardboard Thickness |
1-4mm |
1-4mm |
1-4mm |
Production Speed |
7-40pcs/min |
7-40pcs/min |
7-40pcs/min |
Voltage |
380V |
380V |
380V |
Power |
6.6KW |
6.6KW |
6.6KW |
Overall Dimension |
6350x1650x1100mm |
6350x1650x1200mm |
6350x1650x1300mm |
Net Weight |
790kg |
836kg |
886kg |
