High end Linux touch screen handheld POS with RFID and barcode reader
Over 15 Years' Manufacturing Experience
Shenzhen Cardlan Technology Co. Ltd was established in 2000, with a registered capital of over $1.6 million. We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems.
Application:
1. Bus, Taxi, Metro, Highway, Supermarkets, Gas station, Kiosk, Store, Theater and so on fast payments fields;
2. Government, Institution, Company, Factory, School, Hospital, Hotel;
3. Urban public transportation ticket payment system, Company shuttle bus ticket payment system , School shuttle bus payment system
Features:
1. Made of industrial grade material, Fully adapt to special circumstances on bus
2. Sealed, dustproof, waterproof, shockproof and anti-electromagnetic interference
3. Dedicated stable power supply, voltage overload protection
4. With the most advanced Linux system, high-definition LCD display
5. WIFI Communication + USB data acquisition, support remote upgrading
6. Contactless smart card, read/write capability, light display for reading card
7. Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card";
8. Support Mifare1 card, CPU card
9. With Thermal printing module, can connect to POS58 slip printer
10. Optional GPS positioning module, for global positioning satellite positioning;
11. Great stability of data storage, data kept as long as 10 years even with power outage
12. Card Capacity: 91,880,000 pcs;
13. Can check the nearest 20 records, to prevent ticket payment dispute.
Technical specifications:
Name: |
Portable POS( Fifth generation) |
|||
Model: |
CL-B0511B |
|||
Software Platform: | ||||
Operating system: |
Linux2.6.38 |
|||
Compiler: |
GCC-4.5.1 |
|||
QT |
QT Extended4.4.3 |
|||
Hardware specifications: | ||||
CPU: |
ARM1176JZF-S |
|||
Frequency: |
St:533MHZ,Max:800MHZ |
|||
Memory: |
DDR2:256Mbyte |
|||
HD: |
256MByte |
|||

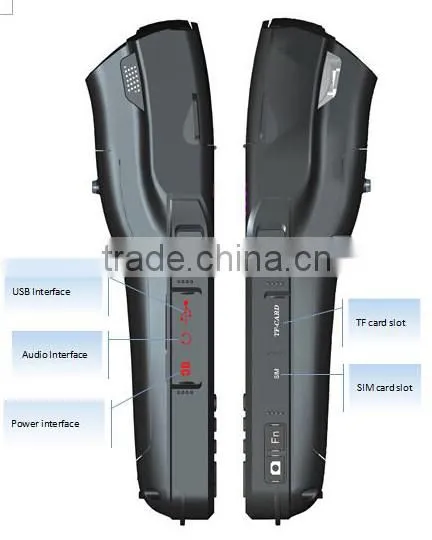

TF-card: |
Micro TF card,Max 32GB |
|||
USB: |
Micro AB / support USB OTG |
|||
RTC: |
Support |
|||
Graphic acceleration: |
Hardware 2D,3Dgraphic acceleration |
|||
LCD: |
3.5inch TFT-LCD320*240(RGB) |
|||
TP: |
4-wire resistance-type |
|||
Loudspeaker: |
8OHM/1W buzzer |
|||
Camera: |
3Megapixel |
|||
Phone Jack: |
international standard4 pin,support voice and earphone |
|||
Key: |
USB key, hardware logic keys |
|||
Supporting card | ||||
Read card |
Contact |
ISO 7816-3compatible(reserved);one SIM card,4PSAM |
||
Contactless |
ISO/IEC14443 A/B layer compatible |
|||
voice function(reserved) | ||||
voice |
input |
Only through ear phone |
||
output |
GSM,only support ear phone |
|||

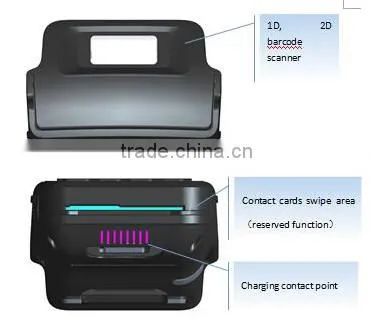

scanning:scanning and camera only choose one | ||||
scanning: |
1D, 2D barcode scanning |
|||
camera:scanning and camera only choose one | ||||
camera: |
Support 3Megapixel |
|||
Positioning | ||||
Positioning: |
Beidou 2 |
Optional |
||
GPS | ||||
Wireless communication | ||||
Bluetooth |
BT 2.1 |
default |
||
Bluetooth 4.0 BLE |
optional |
|||
WIFI |
IEC802.11 B/G/N |
default |
||
IEC802.11 A/B/G/N |
optional |
|||
GPRS |
Data,SMS,Voice |
default |
||
CDMA |
Data,SMS,Voice |
optional |
||
3G |
Data,SMS,Voice |
optional |
||
Power supply | ||||
Working voltage: |
DC:9V 2A/3A |
|||
Battery supply: |
Removable ,7.4v@3800mA/polymer lithium battery ;Wide temperature battery |
|||
Power consumption: | ||||
Power consumption:: |
48H(Standard environment and configuration / theoretical value) Power off:8uW |
|||
Working environment | ||||
Workingtemperature:: |
-25℃~75℃ |
|||
Storage temperature: |
-40℃~85℃ |
|||
Working Humidity: |
0-90%(non-condensing) |
|||
|
physical parameter
| ||||
Dimension: |
218.2*87.8*61.6mm |
|||
Housing material: |
engineering plastics,TPU |
|||
LCD display | ||||
display: |
3.5" TFT LCD 320*240 (RGB) |
|||
Pilot lamp: |
LED Pilot lamp |
|||
Key function | ||||
Key: |
23-key keyboard |
|||
Sound prompt | ||||
sound: |
buzzer,loudspeaker |
|||
RFID | ||||
standard: |
ISO-14443 Type A/B |
|||
Reading distance: |
0~50mm |
|||
Working frequency: |
13.56Mhz |
|||
Card capacity: |
91880000 |
|||
Card type: |
Mifare 1 card,CPU, Union pay IC card |
|||
Interface | ||||
Communication interface: |
USB |
|||

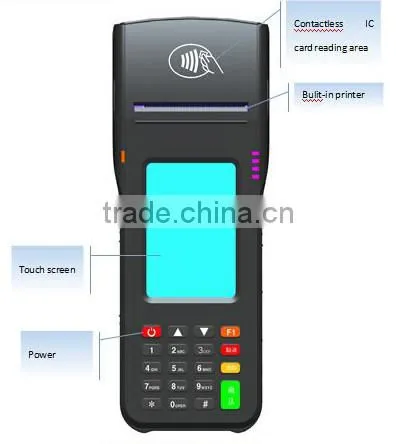

Printing function | ||||
printing module: |
Built-in thermal printer |
|||
Receipt width: |
58mm |
|||
Working pattern | ||||
Working pattern: |
Stand alone or network |
|||
Alarm | ||||
Alarm |
Insufficient balance or data is full |
|||
Data collection | ||||
Wireless data collection |
WIFI,Bluetooth,GPRS,CDMA,3G |
|||
Cable data collection |
USB cable data collection |
|||
After-sale services
Offering 24-hour Online Service
We offer 24-hour online service, and door-to-door installation service. Our hardware carry one-year warranty and software have lifetime maintenance service. Inquire today to begin sourcing.
Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.
More information,pls contact kathy online directly,thanks!
