Help CenterSG65*55 Hammer Mill 37-55kw
Related Products
-
1-2t/h Wood Hammer Mill/straw Hammer Mill (CE)US$ 1,000 - 78,000,000MOQ: 1 Set -
Biomass Pellet Wood Crusher Machine Poultry Feed Grinder / Corn Stalk Grinder 45kwUS$ 1,000 - 30,000MOQ: 1 Set
-
Waste Rubber Straw Hammer Mill , Multi Purpose Wood Chip Grinder MachineUS$ 1,000 - 30,000MOQ: 1 Set
-
2015 Best Full Automatic PVC Hammer MillUS$ 1,460 - 5,000MOQ: 1 Set
-
Hot Sale Corn Straw Hammer Mill/High Quality Hammer MillUS$ 1,460 - 5,000MOQ: 1 Set
Specifications
wood hammer millcrushing biomass material into fines
high atiabrasion hammers
CE&ISO9001
Chapter 1:Brief Introduction to YULONG machine
Zhangqiu Yulong Machine Co., Ltd,a hitech biomass crushing/grinding, pellet fuel making equipments manufacturer,was established in 1998 which have developed into a group enterprise whose business integrates scientific research,manufacturing,training and international trade.Professional in complete biomass fuel pellet production line supplying since 1998.
Main products include wood/biomass hammer mill/grinder/crusher,wood chipper and sawdust making machine,XGJ vertical ring die and SKJ flat die wood/biomass pellet mill/press/machine,all kind of mixer machine,pellet cooler machine, air flow dryer and rotary drum dryer,vibrating screener or separator,multigrade separator,pellet bagging and sewing machine,bucket elevator,belt conveyor,hydraulic rolling silo...
All the above equipments approved by SGS,CE&ISO9001 and Chinese government organization. DIN pellet standard can be easily reached.
YULONG brand biomass fuel pellet making equipments have been exported toEurope,USA,Australia,Canad,South east Asia,Japan,South Korea,Middle east,South Africa etc.from 1998.
Also setting four oversea service and sells centers in Poland,Bulgaria,Thailand,Malaysia,respectively.
Chapter 2:Introduction of the SG series hammer mill :
The SG series hammer mill can crushes corn,soybean,wheat,chaff paper, wood chips, rice husk, agricultural stalk/straw pieces, and shell etc into 2-10mm power . Meanwhile, grind the PVC and rubber with water cooling system, so it is called the multifunctional grinder machine.
The output crushed materials are 2-12 mm according your demand (you can get your wanted final product size through changing the sieve in the hammer mill).
The wood hammer mill is widely used in the professions such as biomass fuel factory, power station, fodder factory, cultivation factory, organic fertilizer factory, Chinese medicine, chemical industry etc.
Technical Parameter of Hammer Mill:
Model |
SG40 |
SG50 |
SG65*27 |
SG65*55 |
SG65*75 |
SG65*100 |
SG130*55 |
SG130*100 |
|
Power (kw) |
7.5 |
15 |
22 |
37-55 |
55-75 |
90-110 |
160 |
220 |
Capacity (t/h) |
0.1-0.3 |
0.2-0.4 |
0.6-1 |
1-2 |
2-3 |
3-4 |
3-5 |
5-8 |
spec of screener (mm) |
650*200 |
840*270 |
1020*270 |
1020*540 |
1020*740 |
1000*940 |
2050*550 |
2050*1000 |
For the hammer mills, they have the requirement for materials' moisture. Low moisture, the capacity will be higher; wet materials, the capacity will be lower. Generally, the water content of materials less than 15% is best working efficiency.

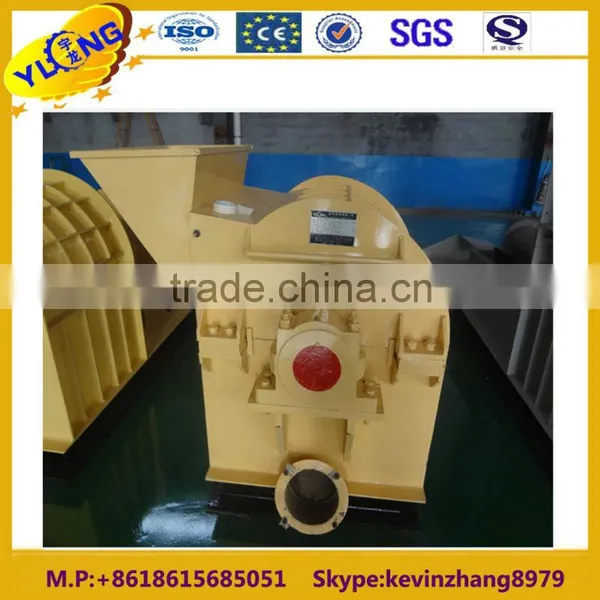

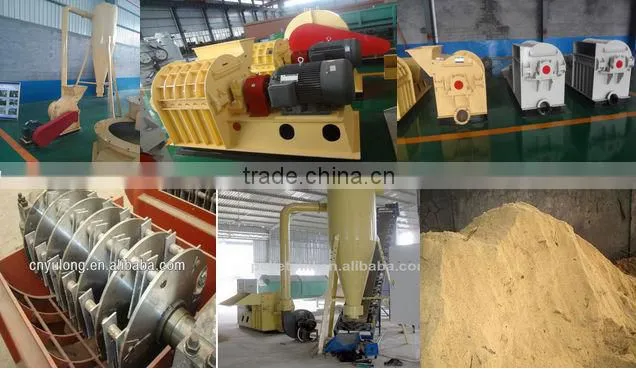

Chapter 3:Machine pictures:
Chapter4:Contact information:
Kevin Zhang
Zhangqiu Yulong machine Co. Ltd.
Skype:kevinzhang8979
MP.18615685051
Tel:+86-531-83483997
Fax:+86-531-83483378
QQ:1044399817
