50-60fps cheap high speed 1.3mp 3d scanning usb camera
SENSOR size |
1/1.8" CMOS color |
Sensor Dimension |
5.3μm×5.3μm |
Scan Method |
Progressive Scan |
Quantum efficiency |
48%@650nm,30%@750, NIR |
Frame rate |
50fps@1280x1024(8bit) |
Shut |
ERS & Global shutter |
Dynamic range |
65dB |
SNR |
41dB |
Spectrum response |
400-1100nm |
Data Interface |
USB3.0 5Gbps |
Control Interface |
1xR485,2xI/O,1xStrobe, 1xTrigger |
USB Cable |
3M |
Power |
DC 5V±5% |
Current |
<500mA |
White balance |
Manual white balance,automatic white balance/area white balance |
Exposure Time |
21us~1.3s |
Auto Exposure control |
Automatic/manual exposure area |
Lens Mount |
CS interface (optional C interface) |
Busy Indicator |
Power light,the trigger light |
Working temperature |
0℃-60℃ |
Working humidity |
0-85% |
Software |
spectrumsee image analysis software with modular designing,including image previeing, capturing,analysing,processing,sharing fuction.It gives users the latest image processing experiences.The software fuction:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc |
Spectral response figure:

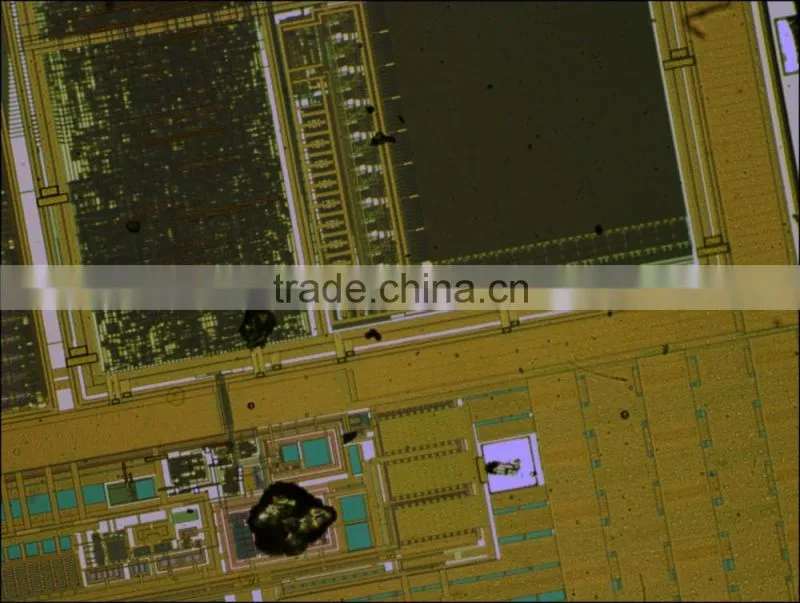

Really imaging:
Packing method |
Every single camera is packed with white foam inside, and packed with carton box outside. |
Packing list |
1PC * Camera body 1PC * USB3.0 Card 1PC * USB3.0 Cable 1~3 meter 1PC * CD with software and driver |
Shipping method |
FedEx Express/UPS/DHL/TNT, Air mail, Transportation by sea, or others convenient shipping carrier for you. |
Lead time |
within 5~7days after payment confirmed |
1.All of our camera come with free software ,and any OEM software you need ,please discuss with us any time !
2.The software function:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc.
3.If you have any camera application ,our professional engineer can offer the best solution to you !
4.If you have any target price ,please let us know ,and we will adjust to you if we can do ,as we did not want to lost the good customer like you !
5.We also guarantee the after-sale service time within 24 hours through email, Skype, WhatsApp, phone, or team-viewer.
Notes
Software function |
Image capturing, Time lapse, Measuring, Data exporting image mosaic, Depth of field overlaying, Text instruction inserting, etc,. |
Software system |
Linux, Windows7, Window8, Window10, Android, etc,. |
Quality warranty |
2 years since you received the goods. |
1.And also we wanted to know if you have any SDK or something for the camera? We need to control the camera via an application.
Answer: Our camera come with free software and SDK,the camera include USB3.0 Card and USB3.0 Cable,Software dis.
2.What is the minimum pcs? 1order OK?
Answer:yes, the minimum order is 1Pc.
3.Whether the quoted prices are Duly packed or not? means includes charges for packing of material before shipping
Answer:sorry that we have not included the freight,and camera price is EXW,it is lowest price.thanks for your kindly understanding in advance.
