API 7K HYDRAULIC DRILL PIPE POWER TONG DRILL PIPE POWER TONG TUBING POWER TONG

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

APS

Certification:

API

Warranty:

1YEAR

Contact Supplier Request Quote Chat Now

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name APS

Certification API

Warranty 1YEAR

After-sales Service Provided Engineers available to service machinery overseas

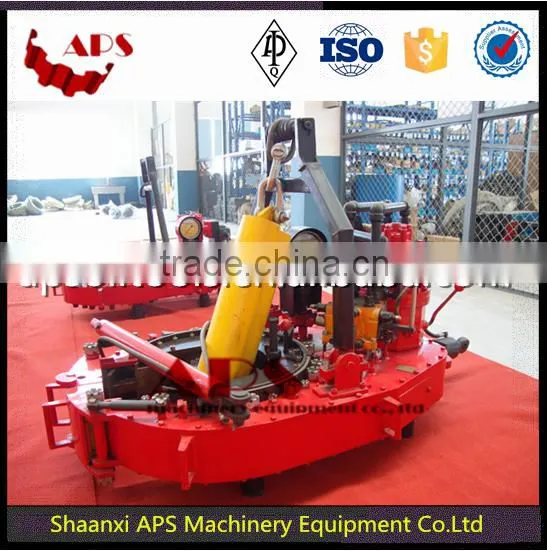

Oilfield API spec type TQ Casing Power Tongs/Hydraulic power tongs with torque control system

Product Description

Description & Features:

1. TQ Series of Casing Tongs are widely used for making up or breaking out pipes or casings diameters of 4"~20".

2. The tong heads are designed open type and can freely clamp and escape from the casing ,TQ Casing Tongs are safe ,reliable ,and easy to handle with high mobility.

3. This series of tongs can be connected to computer controlling units and can serve as ideal well mechanical tool for surface operations in oil fields. National Invention Patent of the tong has been got.The tongs are designed and manufactured according to API Spec 7K specification for Drilling Equipment. TCS torque monitoring system can be matched with drill well Power Tongs casing tong and oil pip Power tong and can be well made-up.

4. The characteristics are as follows: -Record and save the ultimate data, such as: torque, number of circles, torque/time of circles, torque/time. curves, date, time, well-team number, single and total length. -According to the torque and circle number it automatically control the making-up torque and the circle number. It ensures each connected joint in the best condition.

Technical parameter

Model			TQ178-16	TQ340-20Y	TQ340-35	TQ178-16Y	TQ340-35Y	TQ508-70Y
Size range		mm	101.6-178	101.6-340	139.7-340	101.6-178	101.6-340	245-508
Size range		in	4-7	4-13 3/8	51/2-13 3/8	4-7	4-13 3/8	9 5/8-20
Hydraulic system Max. pressure		MPa	18	16	18	18	18	20
Hydraulic system Max. pressure		psi	2610	2320	2610	2610	2610	2900
Hydraulic system rated flow		L/min	114	114	114	114	114	200
Hydraulic system rated flow		gpm	30.1	30.1	30.1	30.1	30.1	52.8
Max. torque	Hi gear	kN.m	2.4-3	3.7	2.5-3	2.4-3	4.0-5.0	8.4-10.7
	Hi gear	ft.lbf	1770-2200	2730	1844-2200	1770-2200	2950-3680	6195-7890
	Mid gear	kN.m	-	-	6.0-7.5	-	-	-
	Mid gear	ft.lbf	-	-	4420-5530	-	-	-
	Low gear	kN.m	16	20	35	15-18	27-30	48.9-70
	Low gear	ft.lbf	11800	14750	25800	11060-13280	19900-22120	36065-51630
RPM	Hi gear	rpm	54-79	50-80	60-86	54-79	80-98	-
	Mid gear	rpm	-	-	21-30	-	-	-
	Low gear	rpm	9-13.1	6-14	2.6-5.3	8.5-12	12-16	-
Overall dimensions		mm	1540760 740	1520850 670	1540900 860	*1500760680*	*1560900850*	*20801280760*
Overall dimensions		in	*613029*	*603426*	*613634*	*593027*	*613533.5*	*825030*
Weight		kg	580	560	780	570	780	1550
Weight		lb	1280	1234	1720	1250	1720	3410
