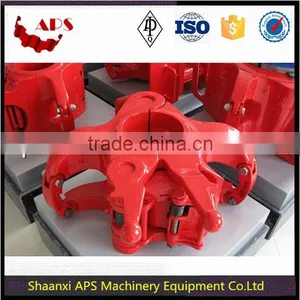

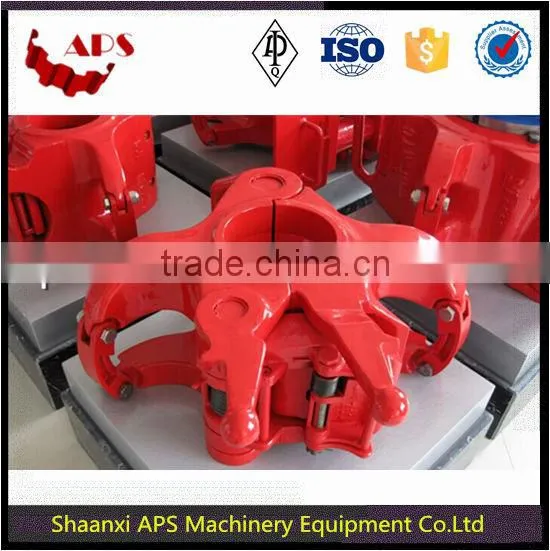

API spec 8A oil well drilling tool Side Door Elevator/DDZ Series Elevator/ drill pipe elevator 2.3/8~6.5/8
DDZ Series Elevators are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. The load ranges from 100 tons to 750 tons, such 100, 150, 250, 350,etc. The size ranges are from 2.3/8" to 6.5/8".
* Main Features of Elevators of Type DDZ, DDZ TD
1) Improve work efficience
2) Easy operation
3) Reduce intensity effectively
Type |
Size(in) |
Rated Capacity |
Remark |
DDZ-100 |
2.3/8-5 |
100 |
MG |
DDZ-150 |
2.3/8-5.1/2 |
150 |
RG |
DDZ-250 |
2.3/8-5.1/2 |
250 |
MGG |
DDZ-350 |
3.1/2-5.7/8 |
350 |
GG |
DDZ-350TD |
3.1/2-5.7/8 |
350 |
For Top Drive |
DDZ-500 |
3.1/2-6.5/8 |
500 |
HGG |
DDZ-500TD |
3.1/2-6.5/8 |
500 |
For Top Drive |
DDZ-750 |
4-6.5/8 |
750 |
For Top Drive |
