Help CenterME45.9 Power Amplifier
Related Products
Specifications
ME45.9 power amplifier8 ohms Stereo Power:2X450W+900W
4 ohms Stereo Power:2X700W+1400W
3-channel power amplifier
ME45.9 POWER AMPLIFIER SPECIFICATIONS
---------------------------------------------------------------------------------------------------
GISEN ME series three-channel power amplifiers adopt SMT modular design where the high quality elements and devices are selected. The unique design for drive circuit makes excellent the ability of timber analysis and expressing, especially that it can guarantee presenting precisely bass in the greatly dynamic state. The advanced circuit protection guarantees the stability of the products while protecting the sound boxes. The unique heat dissipation design makes the thermal conversion more efficient while guaranteeing that it will be non-stop working and non-protective even in the worst working situation.
Applied to situations like KTV, HI Room, Slow Rock Bar, etc.
---------------------------------------------------------------------------------------------------
Model |
ME45.9 |
8 ohms Stereo Power |
2X450W+900W |
4 ohms Stereo Power |
2X700W+1400W |
THD @ Rated Power 4 ohms 1KHz |
<0.01% |
20Hz - 20KHz |
<0.03% |
Hum&Noise |
-103dB |
Input CMRR |
>80 dB |
Damping Factor 1 kHz, 8 ohms |
> 200 |
Input Sensitivity |
1.22V |
Frequency Response |
20Hz-20kHz,+0/-0.5dB |
Input Impedance(actively balanced) |
20kΩ |
Power Requirement |
220 VAC @ 30amps |
Amplifier Dimensions(H*W*L) |
88mmX483mmX483mm |
Carton Dimension(H*W*L) |
155mmX600mmX640mm |
Net Weight |
24.5kg |
Gross Weight |
28.7kg |
More pictures:

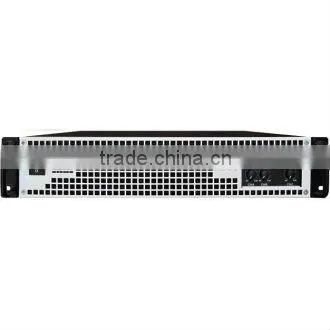

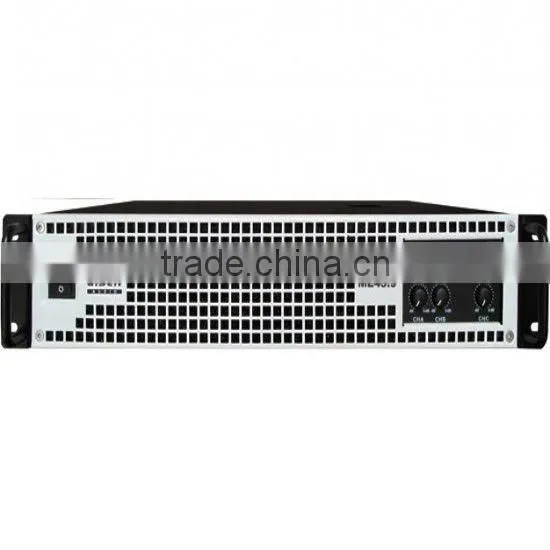

power amplifier front view:
power amplifier top view:
power amplifier back view:
power amplifier back view:
