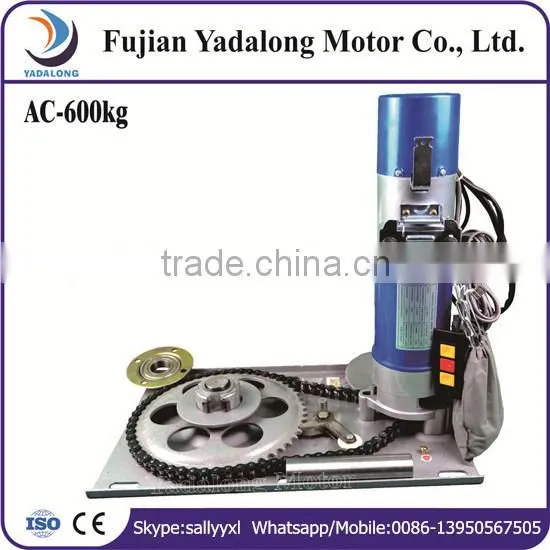

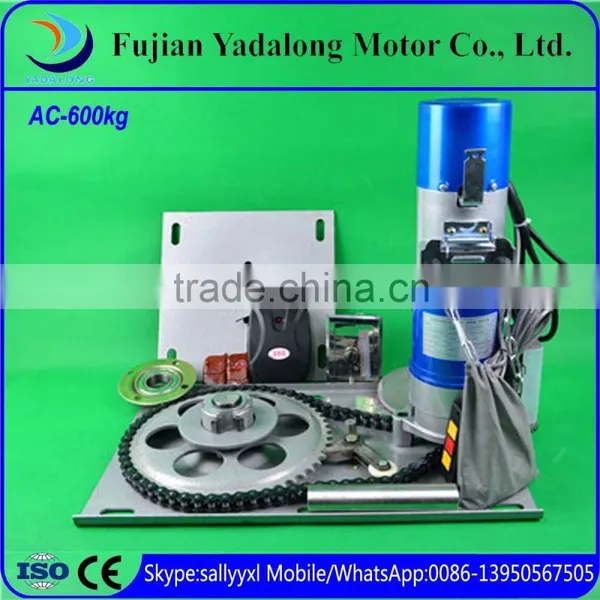

Electric rolling door motor shutter door motor roll up door motor
1Our rolling door motor good design, advance structure, large starting torque, short-time duty.
2 Easy installation, long service life
3 Low noise, Small power wastage, little vibration.
4 Remote control system
5 Limit switch unit enables precise adjustment of door in both up and down positions.
6 Electric and manual operation
7 Easy installation, legerity design, stable operation, low noise, small power consumption
8.Equipped with a motor winding overheating protection device, it will automatically cut off power supply when the temperature reaches 110 °,so as to protect the motors from being burned,and the device can start again when the temperature dropped to 70 ° (after about 8min).
Technology Parameter :
| FUJIAN YADALONG MOTOR CO.,LTD | |||||||
| Model | Rated Power (w) |
Lifting force (kg.f) |
Rated load | Max lifting height(m) | Type of chain | Motor Weight (kg) | |
| Output Torque (N.m) | Output speed (r/min) | ||||||
| AC single-phase rolling door motor 220V 50-60HZ | |||||||
| JD-300-1P | 250 | 300 | 168 | 5.4 | 4.5 | 10A | 12 |
| JD-500-1P | 300 | 500 | 343 | 5.2 | 6 | 10A | 13 |
| JD-600-1P | 370 | 600 | 412 | 5.3 | 6 | 10A | 13 |
| JD-800-1P | 550 | 800 | 647 | 4.4 | 9 | 10A | 14 |
| JD-1000-1P | 550 | 1000 | 809 | 4.4 | 9 | 10A | 15 |
| AC three-phase rolling door motor 380V 50-60HZ | |||||||
| JD-600-3P | 250 | 600 | 412 | 5.3 | 6 | 10A | 13 |
| JD-800-3P | 300 | 800 | 647 | 4.6 | 9 | 10A | 14 |
| JD-1000-3P | 550 | 1000 | 809 | 4.4 | 9 | 12A | 14 |
| JD-1300-3P | 600 | 1300 | 1401 | 4.4 | 9 | 12A | 14 |
| JD-1500-3P | 800 | 1500 | 1617 | 5.2 | 9 | 12A | 15 |
| DC rolling door motor 220V 50-60HZ | |||||||
| JH-300 | 290 | 300 | 210 | 5.4 | 4.5 | 10A | 12 |
| JH-500 | 300 | 500 | 343 | 5.3 | 6 | 10A | 13 |
| JH-600 | 380 | 600 | 410 | 5.3 | 6 | 10A | 13 |
| JH-800 | 550 | 800 | 686 | 5.3 | 9 | 10A | 14 |
Porducts Details
YADALONG EQUIPEMNT
Automatic stator winding and inserting machine
Insert rotor machine DC rotor ARC welding machine
Automatic Rotor winding machine

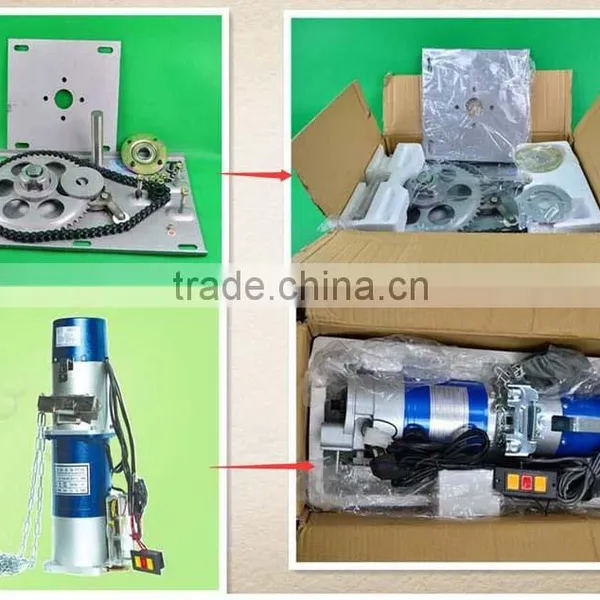

Packaging
Our Service:
1 Any inquiry/question will be reply in 24 hours during working days.
2 Sample order: Available, the customers should charge the sample fee and freight cost.
3 OEM for customers is available.
4 Delivery time: 2-4 weeksafter order confirmation.
5 Terms of Payment: T/T, LC, etc.
6 Warranty: 1 Year from BL date
7 Packing: Carton packed fill with foam; One set in 2 cartons: 1ctn for main motor, 1 ctn for bracket and accessories
8 100% copper material inside the motor
