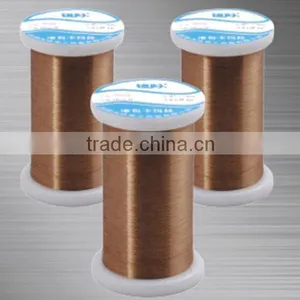

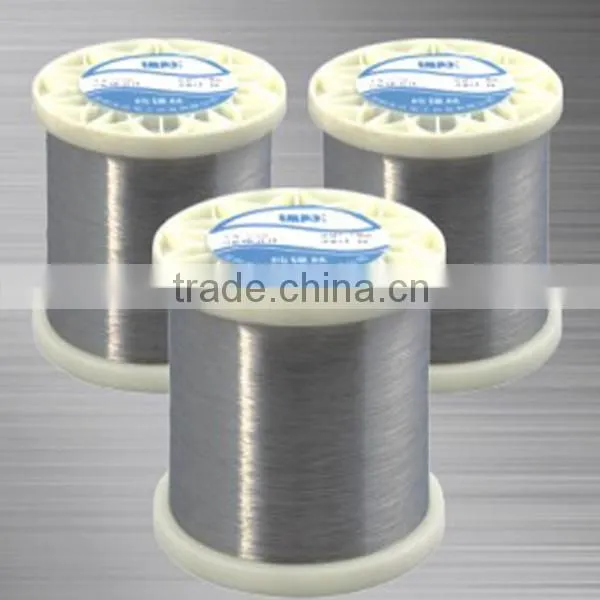

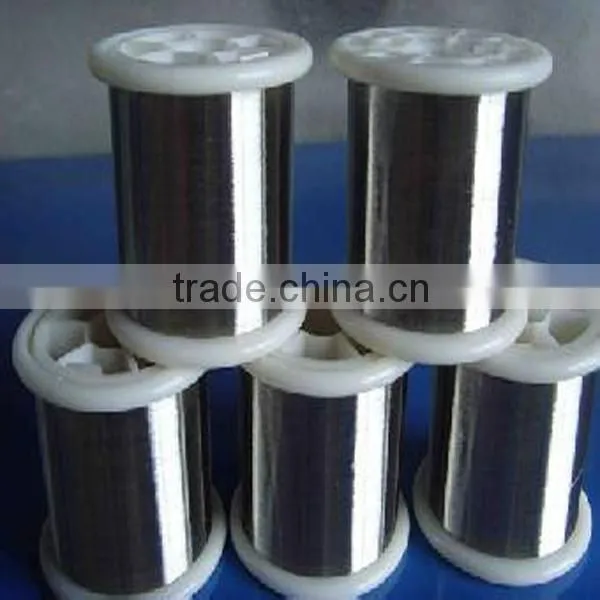

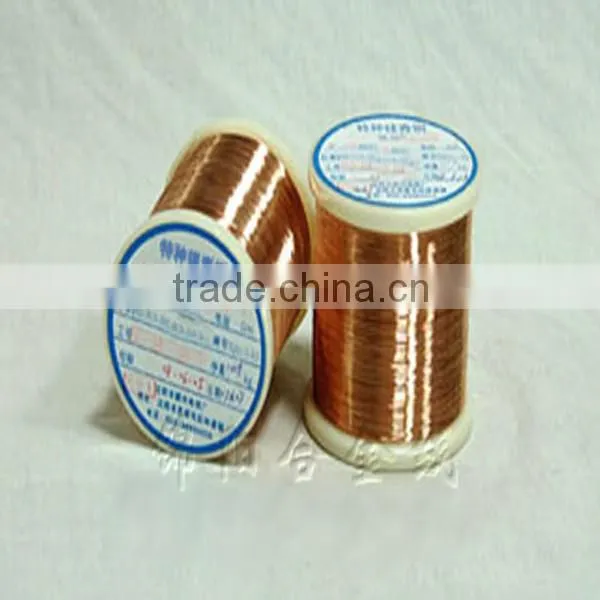

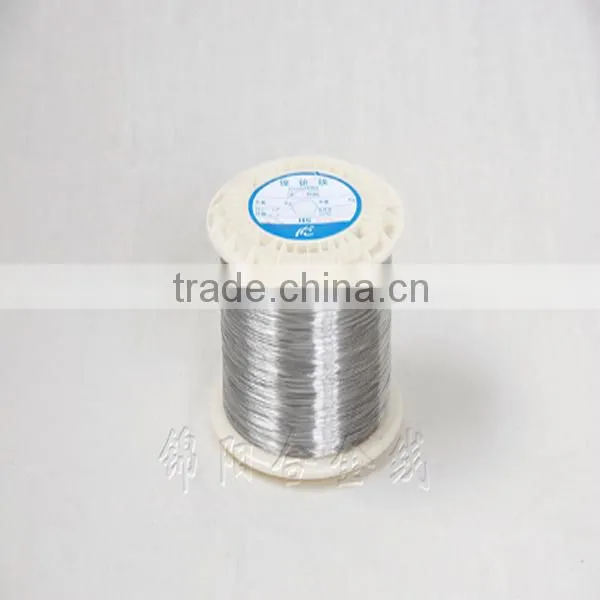

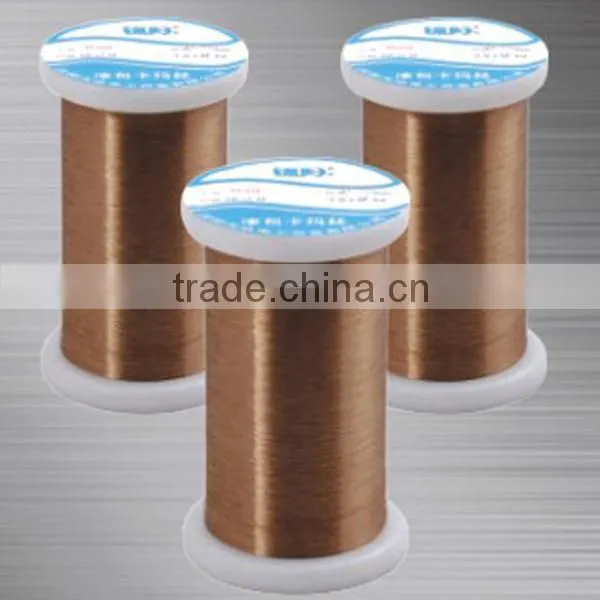

Low Resistivity Cuni Alloy Wires for Heating Elements

Name: Low Resistivity Cuni Alloy Wires for Heating Elements
Brand: Jinyang
SKU: 129890119

Negotiable MOQ: 50 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Red Copper Wire

Application:

the core of thermal over load relay and other fields,etc, Used widely in chemicals, lighting,electronic instruments,etc

Wire Gauge:

0.03mm-1.5mm or according to clients' requirements

Shenyang Tianzhong Alloy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian port and other Chinese port

Delivery Detail:

Delivery time depends on order quantity.

Type Red Copper Wire

Application the core of thermal over load relay and other fields,etc, Used widely in chemicals, lighting,electronic instruments,etc

Wire Gauge 0.03mm-1.5mm or according to clients' requirements

Grade Cooper

Cu (Min) 1% to 44%

Alloy Or Not Is Alloy

Place of Origin Liaoning, China

Brand Name Jinyang

Model Number CuNi1 to CuNi44

Low resistivity cuni alloy wires for heating elements

Product info

Product name: Low resistivity cuni alloy wires for heating elements

Other names: Low resistivity cuni alloy wires; cuni alloy wires for heatings

Application Range

This type of alloy wires is usually as key components assembled into the core of thermal over load relay,

low resistance thermal circuit breaker and other low resistance electronics.

Product features:

The description of products

should be followed the JB/T6454-2008 standard.

Number	ResistivityuΩ·m(20°C)	maximum service temperature(°C)	resistance- temperature coefficient 10⁵/°C (20-600°C)	copper thermoelectric emfs V/K(0-100°C)	chemical composition,%				Mechanical Properties(soft)
					chemical composition,%				Tensile strength N/mm²(no less than)	elongation, %(no less than)
					Mn	Ni		Cu	Tensile strength N/mm²(no less than)	diameter≤1.00mm	diameter>1.00mm
NC003	0.03	200	< 120	- 8			1	remain	210	18	25
NC005	0.05	200	< 100	-12			2	remain	220	18	25
NC010	0.10	220	< 60	-18			6	remain	250	18	25
NC012	0.12	250	< 57	-22			8	remain	270	18	25
MC012	0.12	200	< 38	-	3		-	remain	290	20	25
NC015	0.15	250	< 50	-25			10	remain	290	20	25
NC020	0.20	300	< 38	-28	0.3		14.2	remain	310	20	25
NC025	0.25	300	< 25	-32	0.5		19	remain	340	20	25
NC030	0.30	300	< 16	-34	0.5		23	remain	350	20	25
NC035	0.35	350	< 10	-37	1.0		30	remain	400	20	25
NC040	0.40	350	0	-39	1.0		34	remain	400	20	25
NC050	0.49	400	< -6	-43	1.0		44	remain	420	20	25
