Specifications
Product name:phosphor bronze wireOther names:phosphor bronze;spring wire phosphor bronze
Product info

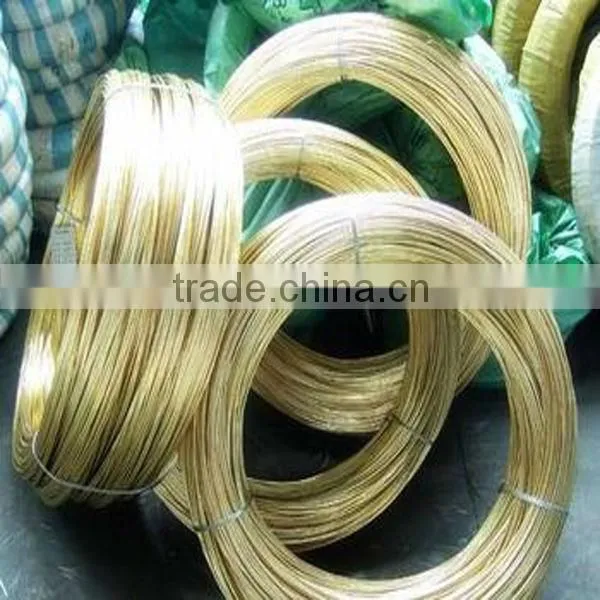

Product name: phosphor bronze alloy wire
Other names: phosphor bronze;spring wire phosphor bronze
Application Range
The product is suitable for lighting industry, electronic appliance, and war industry. They can be used as fuses. They are also available for spring and electronic components. Used widely in chemicals, lighting,electronic instruments,etc
Product features
1) Stabile characteristics of the chemical constituents
2) A high strength against tension, and uniform elongation
3) Low resistivity
4) Good processing performance and welding technological properties
The description of products
Article |
SPECIFICATION |
PERFORMANCE |
APPLICATION |
|||
ASTM |
DIN |
JIS |
GB/QB |
|||
C51100 |
CuSn4 |
C5111 |
QSn4-0.3 |
0.3-12.0mm
|
Excellent corrosion resistance, wear resistance, excellent flexibility and weldability. High strength: tensile strength ≥ 100MPA; High elasticity: modulus> 120; Has a good electrical conductivity: ≥ 20% conductivity;
|
Connectors for aerospace, computer accessories, instrument springs, arc brazing. |
C51000 |
CuSn5 |
C5102 |
- |
|||
C51900 |
CuSn6 |
C5191 |
QSn6.5-0.1 |
|||
C52100 |
CuSn8 |
C5212 |
QSn8-0.3 |
|||
Size and Tolerances
Diameter(mm) |
0.03-0.1 |
>0.1-0.3 |
>0.3-0.6 |
>0.6-1.0 |
>1.0-3.0 |
>3.0-6.0 |
|
tolerances (±) |
advanced |
0.003 |
0.004 |
0.007 |
0.010 |
0.015 |
0.020 |
higher level |
0.004 |
0.005 |
0.009 |
0.015 |
0.020 |
0.025 |
|
ordinary |
0.005 |
0.006 |
0.010 |
0.020 |
0.025 |
0.030 |
|
Mark:
1) According to the negotiation by two sides, we can provide products with other spec and tolerance
2) The size and tolerance should be described in contract, if not, we’ll provide products following the standard of ordinary grade
