Crystal Glass Mosaic Surface Decorative vacuum coating machines for manufacturing ceramic tiles,surface coating for ceramic tile:
| DETAILED DESCRIPTION |
The machine use vacuum coating method can coat ceramic tiles,ceramic cups, plates, tableware,porcelain tiles,ceramic mosaic, floor tiles,glass mosaic.glass tiles. Besides ceramic,you can also coat metal,glass products. The machine is used to Physical deposit TiN (gold color) ,Ti (silver color) and other coating on ceramic products. it can replace the traditional electroplating gold, enhence the adhension, saves cost and improve production efficiency
This is an ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc. The principle of vacuum electric arc ion coating is intergrating cold cathode, arc discharge Self-sustained light, ionization plating material with pulse technique to improve depostion particle energy and survival rate and the properties of the film. It can coat on the surface of the metal as well as nonmetal
| APPLICATION | |
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
WALL FLOOR PORCELAIN TILES
size : 8" x 8" (200mm x 200mm) size : 8" x 12" (200mm x 300mm)
size : 10" x 13 " (250mm x 325mm) size : 10" x 16 " (250mm x 400mm)
size : 12" x 18 " (300mm x 450mm) Size :36" x 36 " (900mm x 900mm)
ALL SIZE CERAMIC TABLEWARE,Including Dishes,spoons,bowls,coffee cup,teapot and others,You also can get all kinds of flower designing on it.
We also produce Continuous ceramic tile coating production line for large quantity production.
| TECHNICAL DATA |
| Mode | LH-1618 | LH-2121 | LH-2522 |
| Dimension | D1600*H1800mm | D2100*H2100mm | D2500*H2200mm |
|
Coating mode and main confirguration |
Eighteen arc targets | Twenty two arc targets | Thirty two arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply | ||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||
|
Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling | ||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) | ||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | ||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | ||

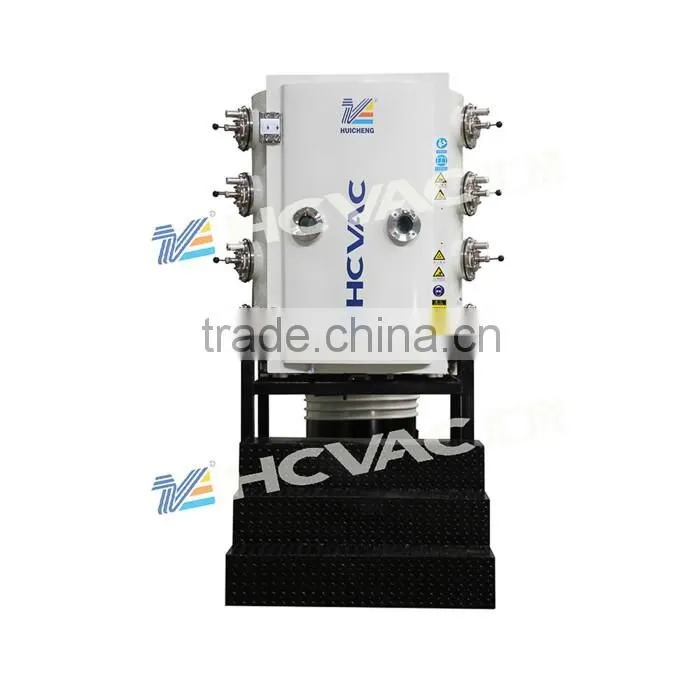

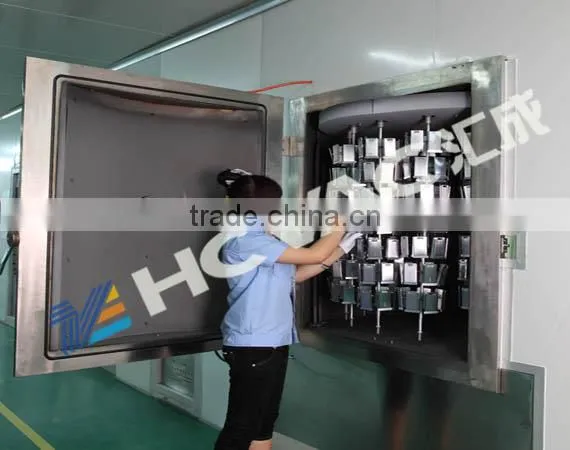

| MACHINE PHOTOS |

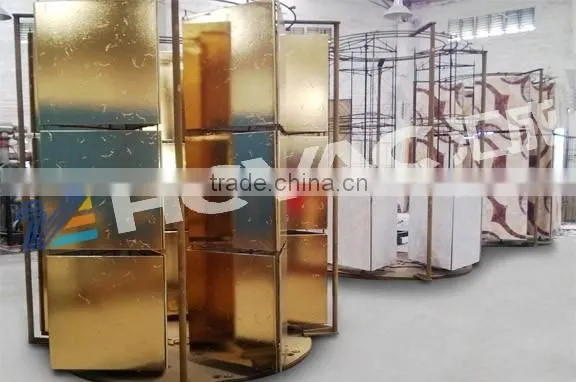

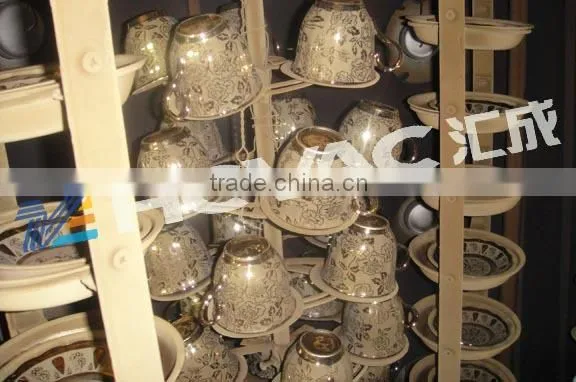

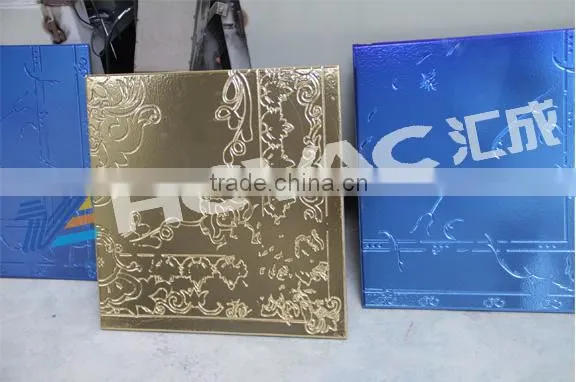

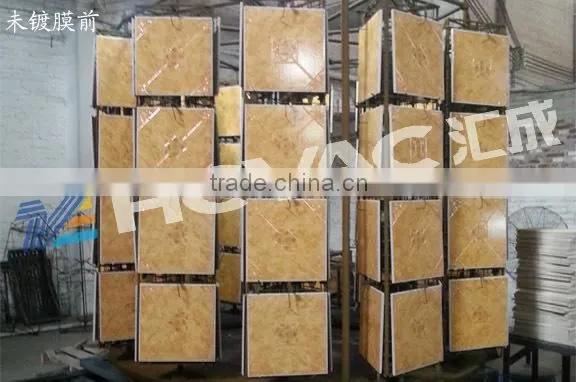

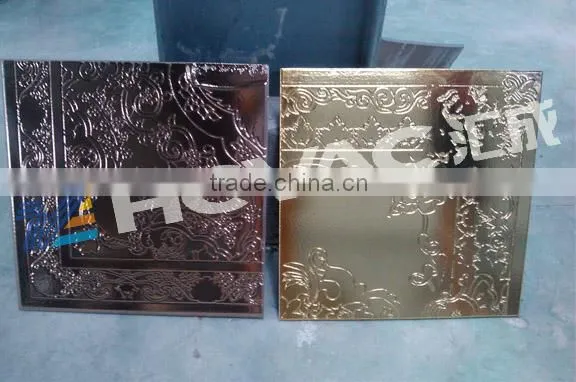

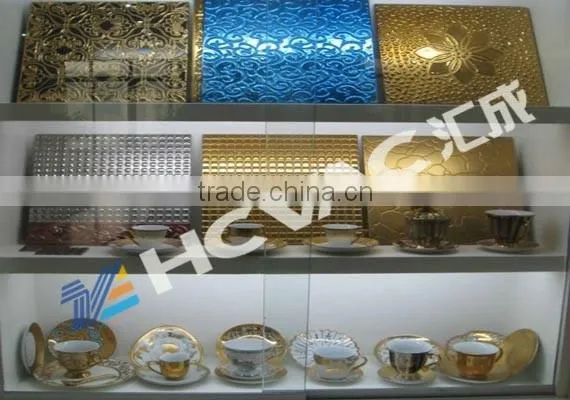

| SAMPLE PHOTOS |
| ABOUT HCVAC |
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement: To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
| HCVAC HONOR |

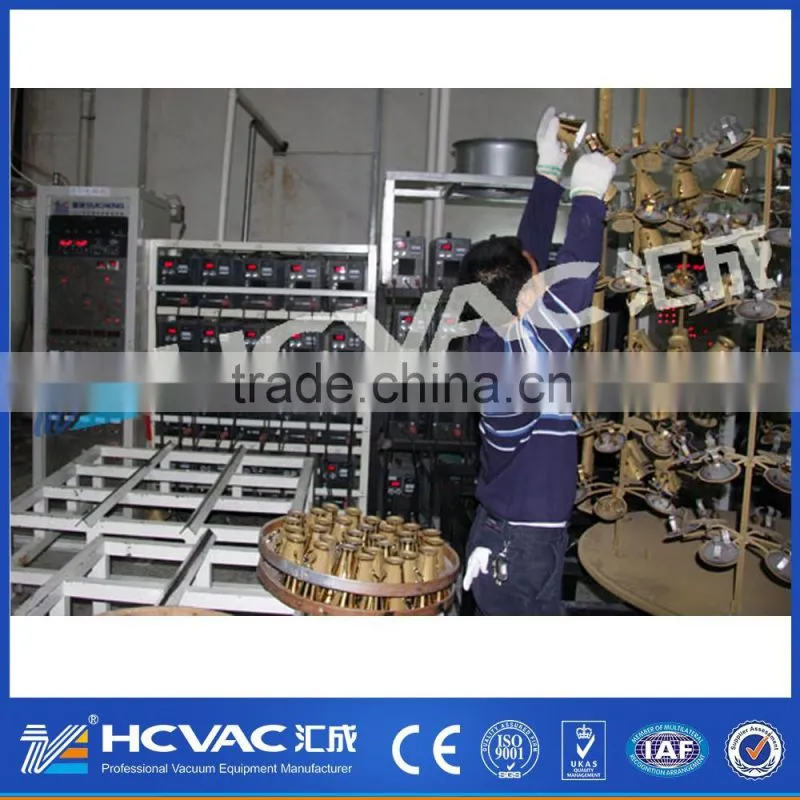

| PHOTO WITH CLIENTS & SUCCESSFUL CASE |
