DC Magnetron Sputtering Coating equipment, magnetron sputtering coating machine
The equipment uses the magnetron sputtering cathode glow discharge technique to ionize and deposit the molecule(target) on the base material(PVD), as well as the resistance heating technique in the vacuum to melt the metal wire and or vaporize the metal molecule. Thus it can metallize the plastic surface of the base material, mobile phone shell, etc. Use the special filming to achieve the function of nonconductive products and electromagnetism shield, thereby to reach the standard of high-end electronic products manufacturing industry .
Characteristic: The equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating technology.The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
Applied industry: Plastic, ceramic, computer, mobile phone, high-end industry, home appliance, aviation, etc. It can coat the composite metal film, alloy film, transparent (translucent) film, nonconductive film, electromagnetism shield film, special film, etc.
Technical parameter:
|
Mode Dimension |
JTZ-1214 |
JTZ-1418 |
JTZ-1619 |
JTZ-1820 |
1200*1400mm |
1400*1800mm |
1600*1900mm |
1800*2000mm |
|
Film type |
Meal film, translucent film, nonconductive film, electromagnetism shield film, dielectric film, etc. |
|||
Power source |
Resistance evaporation power, DC magnetron power, RF power |
|||
Sputtering and electrode structure |
Column magnetron targets, plane rectangle targets, twin targets, evaporation electrode. |
|||
Vacuum chamber structure |
Vertical double door, Vertical single door, pump system postposition, horizontal single door, pump system for side. |
|||
Ultimate vacuum |
4.0*10-4pa |
|||
Vacuum system |
Diffusion pump +Roots pump +Mechanical pump +Holding pump |
|||
Pump time |
Pump from atmosphere to 8.5*10-3,15 minutes |
|||
Control mode |
Manual/Automatic all in one mode, Touch screen + PLC |
|||
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.

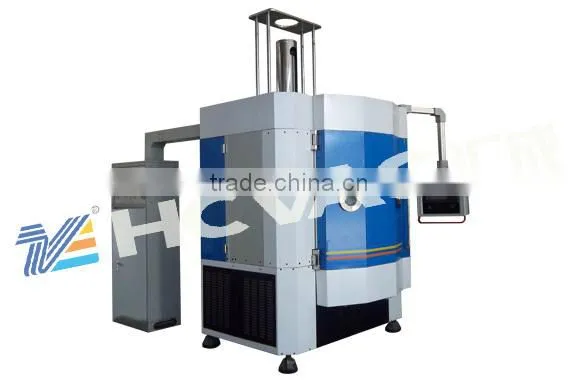

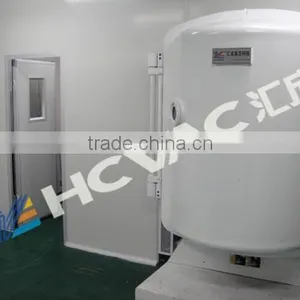

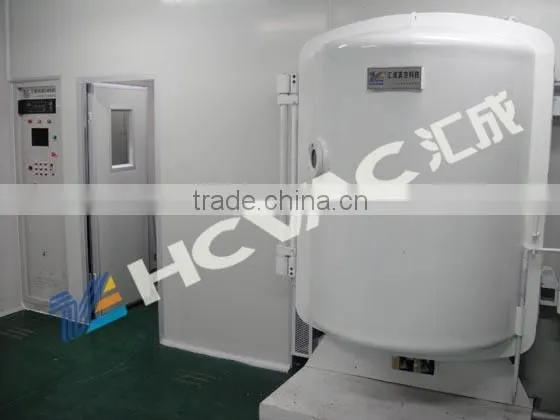

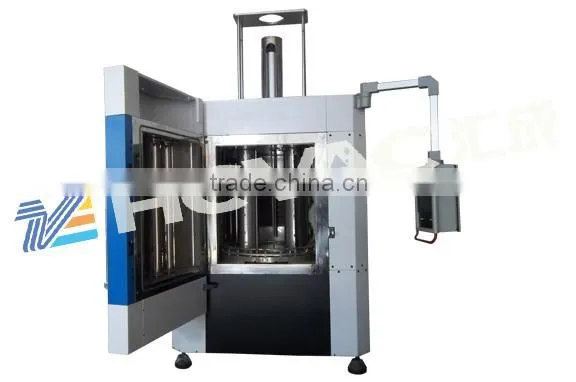

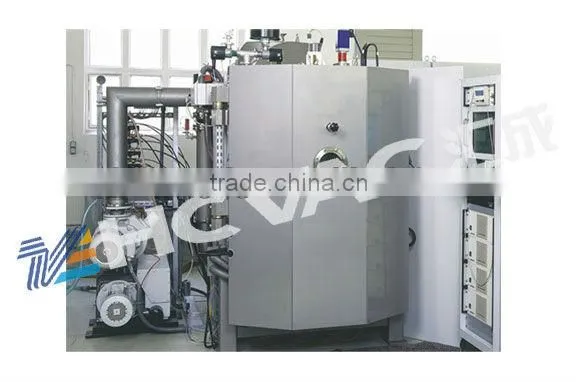

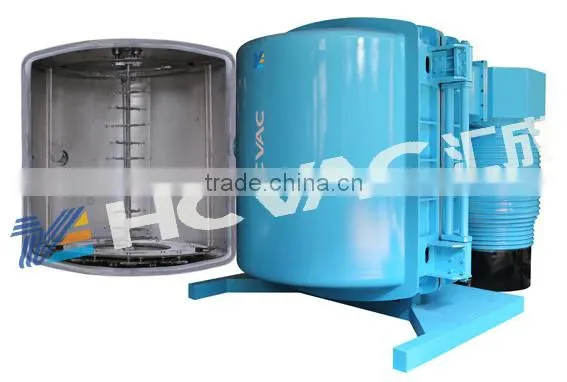

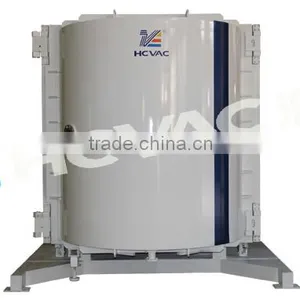

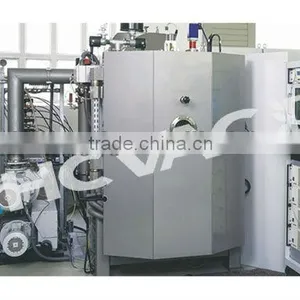

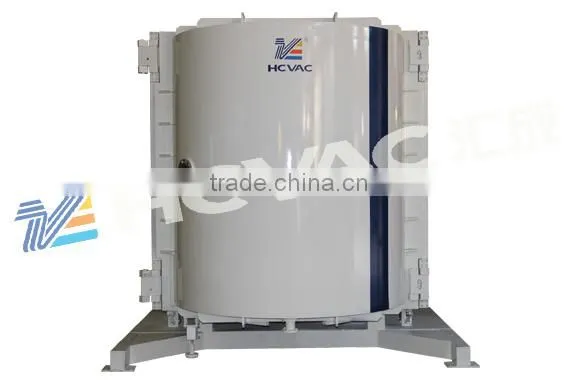

This is our machine

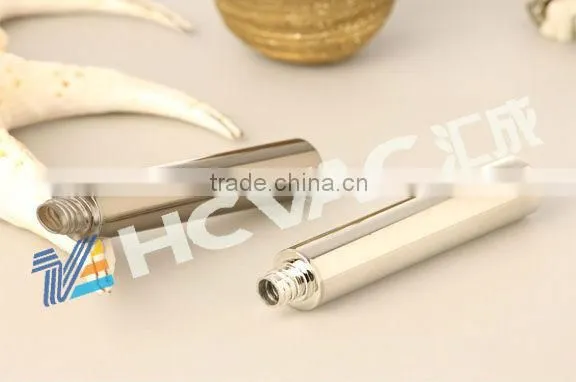

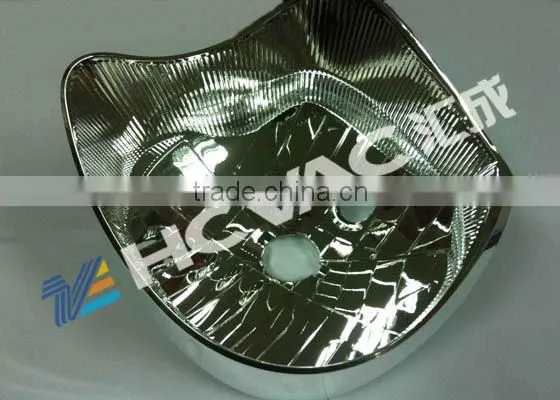

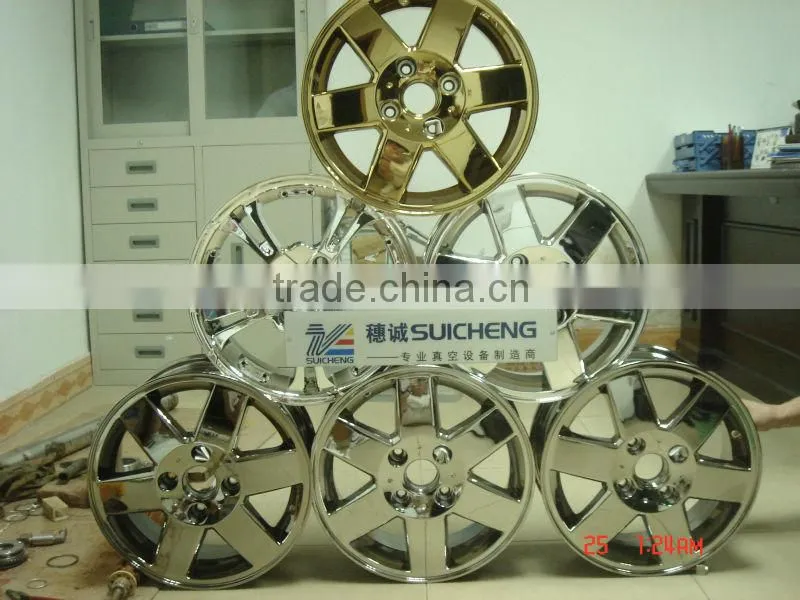

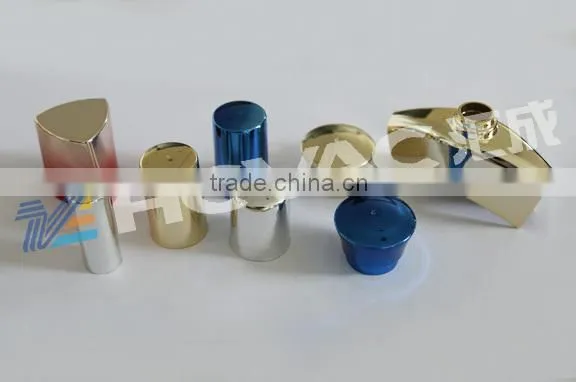

Samples coated by our machine
Some of our honours
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
For more information, please feel free to contact us or visit our website: !
