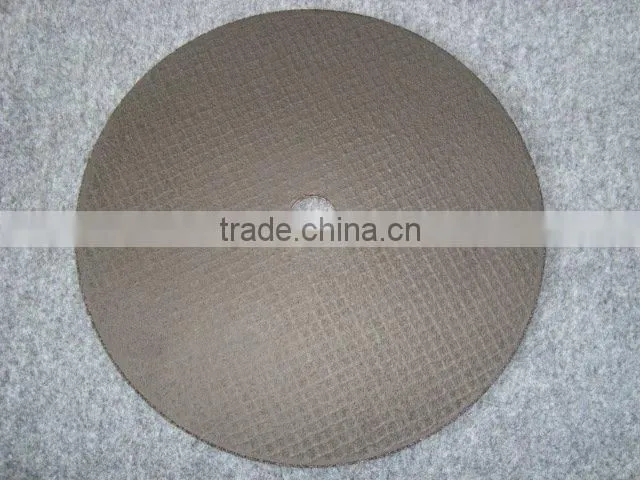

Resin Cutting Wheel for Stone

Resin Cutting Wheel for Stone thumbnail-1
Resin Cutting Wheel for Stone photo-1
US$ 0.114 - 3.214 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Richoice
Model Number:
RQAC0210025A/B
Contact Supplier Request Quote Chat Now
Zhenjiang Richoice Machinery Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Richoice
Model Number RQAC0210025A/B
Type Other, Abrasive Disc, T41, flat
Size 230mm*3.0*22.23

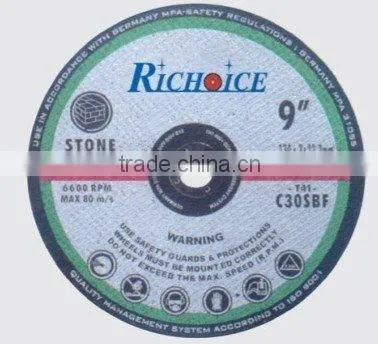

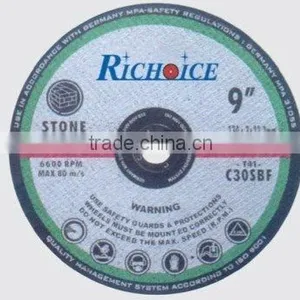

Cutting Wheel for Stone



Material:Aluminium Oxide or Zirconia Aluminium Oxide
Certificate:EN,MPA
Type:T41.T42
Size:100mm, 115mm, 125mm, 150mm...



Art No. Dimension Max.operation speed Standard package
(D*T)(mm) Bore R.P.M. M/S Pcs/box Pcs/ctn Kg/ctn
RQAC0210025A/B 100*2.5 16(5/8") 15300 80 25 400 20
RQAC0210030A/B 100*3.0 16(5/8") 15300 80 25 400 21.1
RQAC0211525A/B 115*2.5 22.2(7/8") 13300 80 25 200 11.9
RQAC0211530A/B 115*3.0 22.2(7/8") 13300 80 25 200 12.5
RQAC0212525A/B 125*2.5 22.2(7/8") 12200 80 25 200 13.1
RQAC0212530A/B 125*3.0 22.2(7/8") 12200 80 25 200 15
RQAC0215025A/B 150*2.5 22.2(7/8") 10200 80 25 200 18.4
RQAC0215030A/B 150*3.0 22.2(7/8") 10200 80 25 200 21.1
RQAC0218020A/B 180*2.0 22.2(7/8") 8500 80 50 200 21.1
RQAC0218025A/B 180*2.5 22.2(7/8") 8500 80 25 100 13.5
RQAC0218030A/B 180*3.0 22.2(7/8") 8500 80 25 100 15.4
RQAC0218030A/B 180*3.0 16(5/8")-Diamond Bore 8500 80 25 100 15.4
RQAC0218035A/B 180*3.5 22.2(7/8") 8500 80 25 100 17.3
RQAC0223020A/B 230*2.0 22.2(7/8") 6600 80 50 100 18.2
RQAC0223025A/B 230*2.5 22.2(7/8") 6600 80 25 50 12.5
RQAC0223030A/B 230*3.0 22.2(7/8") 6600 80 25 50 14.9
RQAC0223035A/B 230*3.5 22.2(7/8") 6600 80 25 50 16.3









Application Chart for Cut-off Wheels(Recommendations)
      Portable Machine Stationary Machine
Application Material Workpiece Size Thickness Range Wheel Diameter Range Wheel Diameter
      100mm-125mm 150mm-230mm 300mm-400mm
Mild Steel Normal Size T=1.0mm-1.6mm A60S,T   A36S,T A60S,T   A36S,T
T=1.8mm-2.0mm A36S,T A36S,T
T=2.5mm-3.5mm A30R,S,  A36R,S A30R,S,  A36R,S A30RQ  A36RQ
Large Size     A30R, A24R  A30P, A24P A24Q, A30Q     A24P, A30P
Alloy Steel, Stainless Steel Normal Size   100mm-125mm 150mm-230mm 300mm-400mm
T=1.0mm-1.2mm A60S A60S
T=1.6mm A36S A36S
T=1.8mm-2.0mm A36S A36S
T=2.5mm-3.5mm A30R,A36R  A30P,A36P A24R,A30R  A24Q,A30Q A24Q,A30Q  A24P,A30P
Large Size T=2.5mm-3.5mm   A30P,A24P   A30Q,A24Q
Stone/Masonry Normal and Large Size   100mm-125mm 150mm-230mm 300mm-400mm
T=1.6mm C36T C36T
T=1.8mm-2.0mm C36S C36S
T=2.5mm-3.5mm C24R,C30R C24R,C30R   C24S,C30S C24R,C30R   C24S,C30S
Cast Iron Normal Size   100mm-125mm 150mm-230mm 300mm-400mm
T=1.6mm AC36R,ZA36R AC36R,ZA36R
T=1.8mm-2.0mm AC36R,ZA36R AC36R,ZA36R
T=2.5mm-3.5mm AC24R,AC30R  ZA24R,ZA30R AC24R,AC30R  ZA24R,ZA30R AC24Q,AC30Q  ZA24Q,ZA30Q
Non-Ferrous Metal Normal Size   100mm-125mm 150mm-230mm 300mm-400mm
T=1.6mm AC36Q,A36Q AC36Q,A36Q
T=1.8mm-2.0mm AC36Q,A36Q AC36Q,A36Q
T=2.5mm-3.5mm AC24Q,A24Q A24Q,A24Q AC24Q,A24Q
