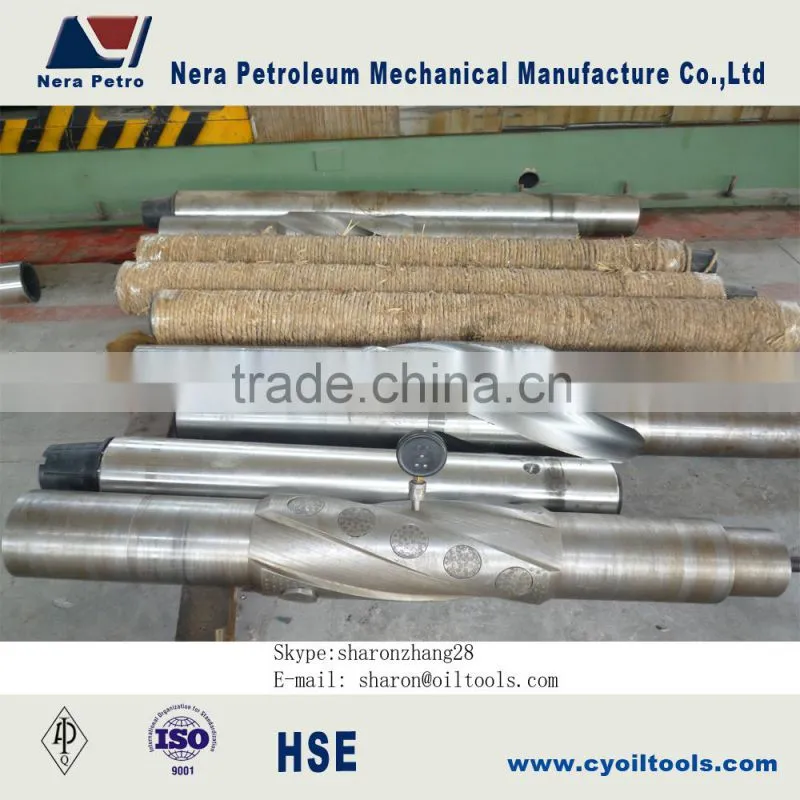

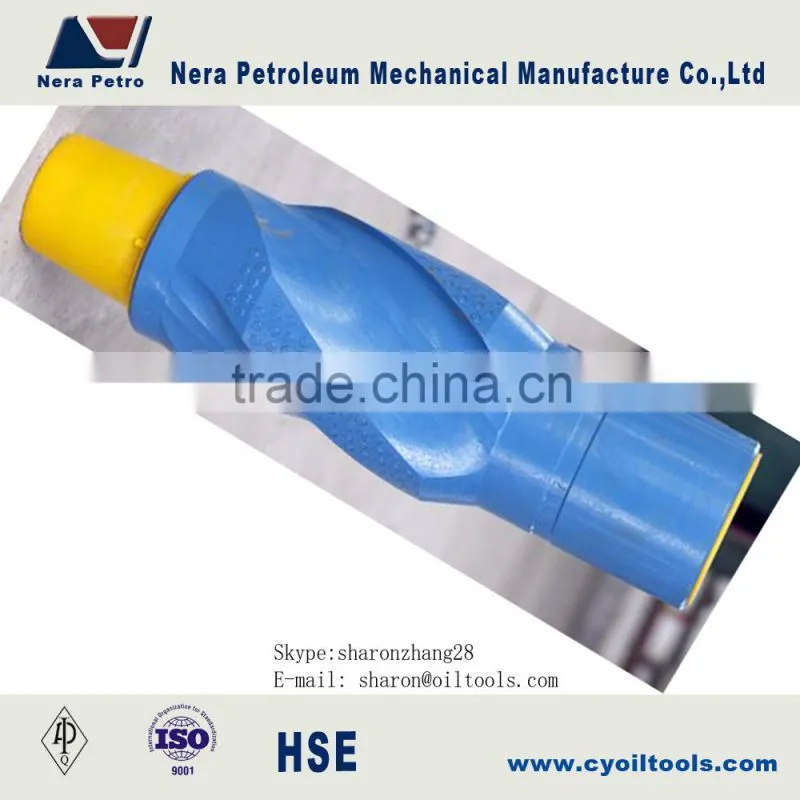

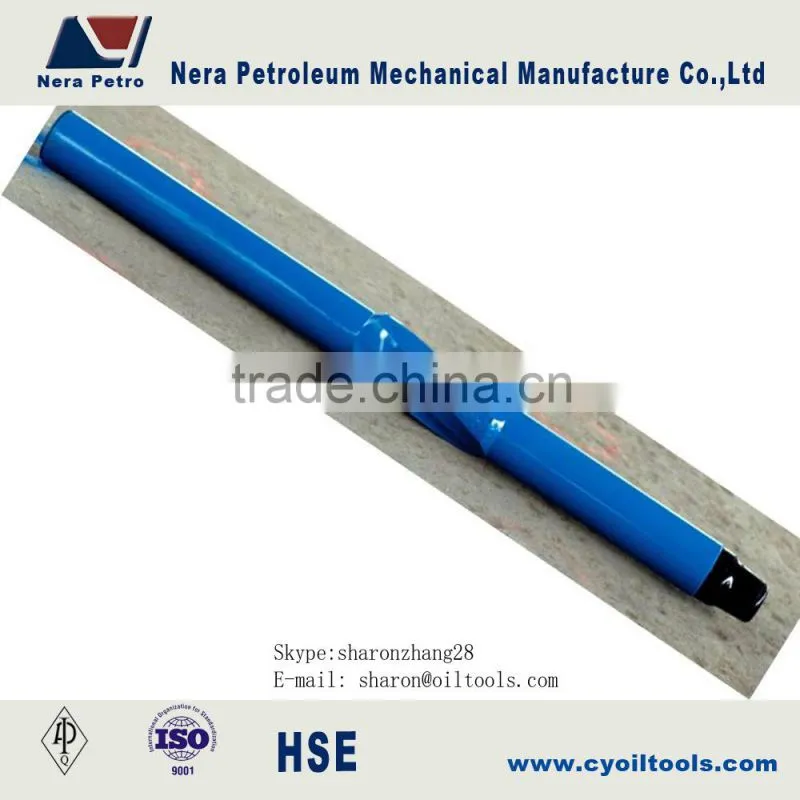

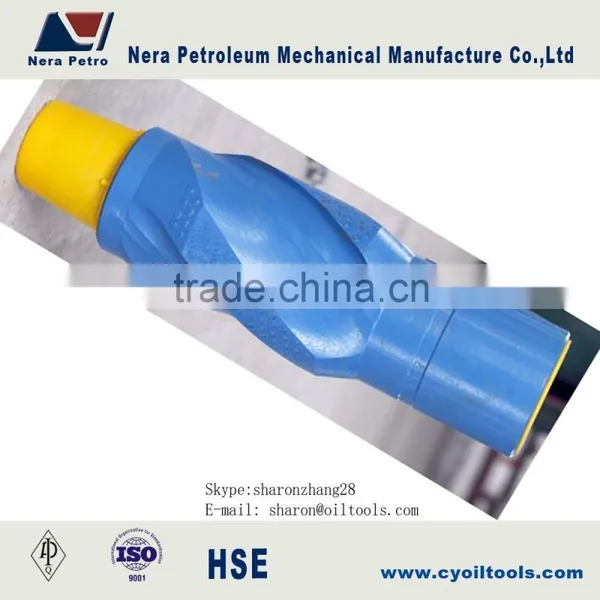

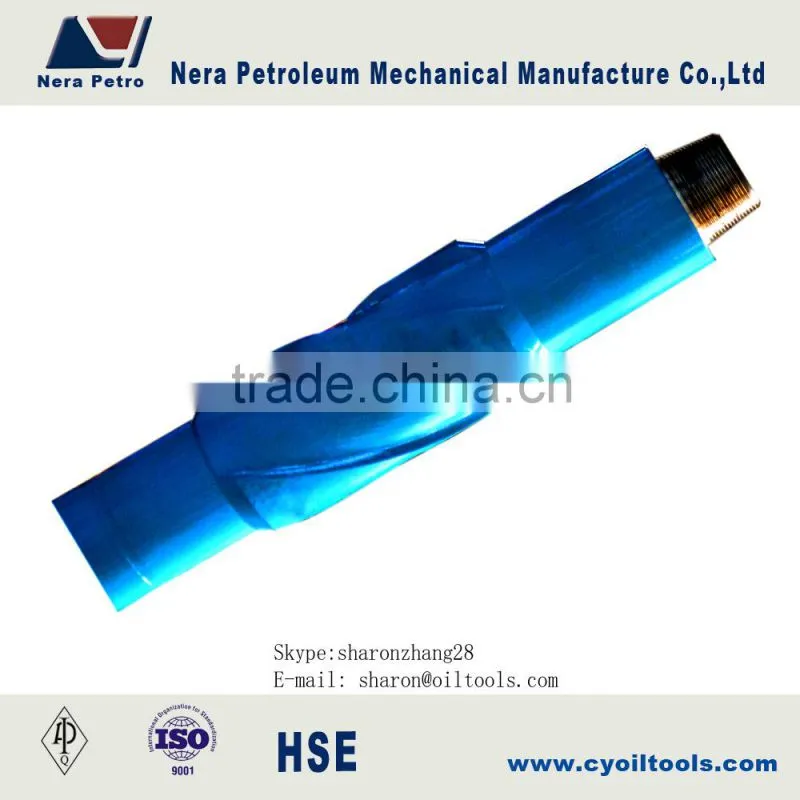

Help CenterIntegral Spiral Blade Stabilizer, API Standard, High Quality and Proper Price
Related Products
-
MWD/LWD Non-magnetic Short CrustUS$ 1 - 10,000MOQ: 1 Piece -
Nonrotary Drill Pipe ProtectorUS$ 1 - 10,000MOQ: 1 Piece
-
API Oilfield Fishing Tools Drilling Junk Sub/die Tap&die CollarUS$ 10 - 500MOQ: 1 Piece
-
Back-pressure ValveNegotiableMOQ: 1 Piece
-
Hydraulic Pressure Damping LoadNegotiableMOQ: 1 Piece
Nara Petroleum Mechanical Manufacture Co. Ltd, estabished in 2007 and located in the industrial park of Chinese second largest oil field in Dongying City-Shengli Oil Field, is a high-tech private limited liability company which takes the lead in developing, manufacturing and selling oil machinery.
As an important tool to control deviation parameter in drilling engineer, drilling stabilizer is used to stabilize the drilling tools in oil, gas and geological exploration drilling process. With effective stabilization function, it prolongs the bit lifetime and improves drilling speed and wellbore quality. Integral stabilizer includes spiral stabilizer and straight edge stabilizer.
Hardening methods of stabilizer belt: HF1000,HF2000,HF3000,HF4000.
Technical specifications and parameters (adjust to your demands)
| O.D on Both Ends mm (inch) | Working O.D (mm) | Applicable Bit Diameter mm (inch) | Near Bit Connection Upper End, Lower End | Drill String Connection Upper End, Lower End |
| 121 (4-3/4) | 158,158.7,157 | 158.7 (6-1/4) | NC35, 3-1/2REG | NC35 |
| 159 (6-1/4) |
190.5,190,189/ 215.9,215,214 |
190.5 (7-1/2)/ 215.9 (8-1/2) |
NC44/NC46, 4-1/2REG |
NC44 |
| 178 (7) |
190.5,190,189/ 215.9,215,214/ 244.5,244,243 |
190.5 (7-1/2)/ 215.9 (8-1/2)/ 244.5 (9-5/8) |
NC50, 4-1/2REG | NC50 |
| 203 (8) |
311.1,310,309/ 444.5,443,441 |
311.1 (12-1/4)/ 444.5 (17-1/2) |
NC56, 6-5/8REG | NC56 |
| 229 (9) |
444.5,443,441/ 660.4,658,655 |
444.5 (17-1/2)/ 660.4 (26) |
NC61, 7-5/8REG | NC61 |
We have adcanced production equipment, which ensures our high-quality products.
We have our own patented products and has passed the attestation of ISO9000:2000 quality system and API, obtained the certificate to enter the net of PetroChina and Sinopec and Class B qualification of PetroChina well control net, and had the honor to win Prizes of Technique Innovation and S&T of Dongying City in 2009.
Our main business includes design and manufacture of downhole drilling tools and wired MWD equipment, manufacture and sales of oil pipe and screw drilling tools, and main products include integral spiral blade stabilizer, hydraulic pressure damping load, oil pressure tapered stabilizer, remote tapered stabilizer, IBOP, flapper type float valve, arrow check valve,casing protector,casing milling tool, adjustable tapered stabilizer, oil pressure tapered stabilizer, nonmagnetic drill collar and so on, totally over 30 series and 10 categories.
We will package and ship products according to your requirements.
Service contributes to quality and quality contributes to confidence, which is our enterpress slogan and mission. We have developed a complete, transplantable enterprise management and operation mode of design, production and after-sale service, with the spirit of "unity, progressive, innovative and efficient," and design tools of three-dimensional solid, finite element analysis, motion simulation and so on.
We will try our best to provide you best service! Looking forward to cooperate with you!
Sharon
Nera Petroleum Mechanical Manufacture Co., Ltd
Add:No. 2 Juzhou Road, Dongying Developing Zone, Dongying, Shandong, China (Mainland)
Mobile NO.: 15066013625
Tel: 86-0546-8175080
Fax: 86-0546-8175070
Skype: sharonzhang28
Web:
