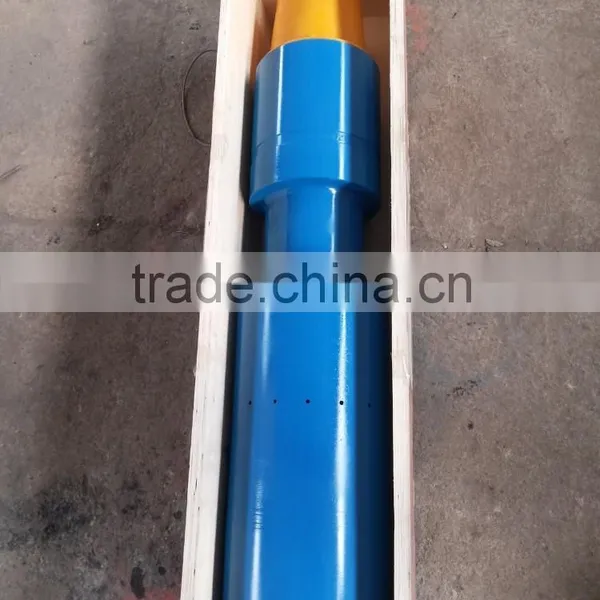

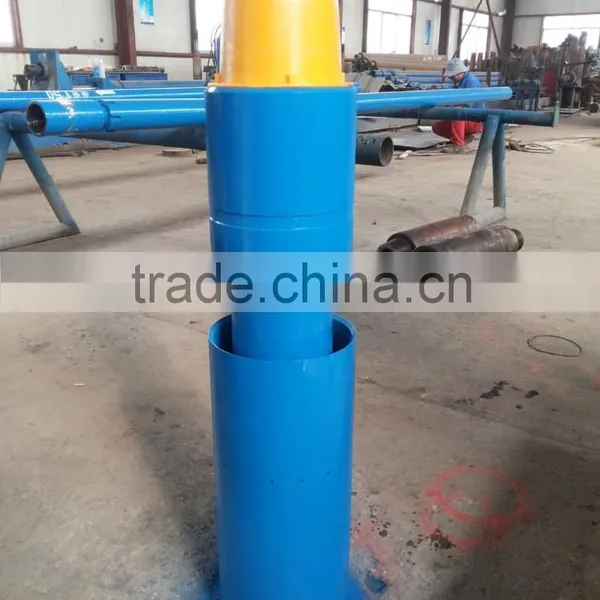

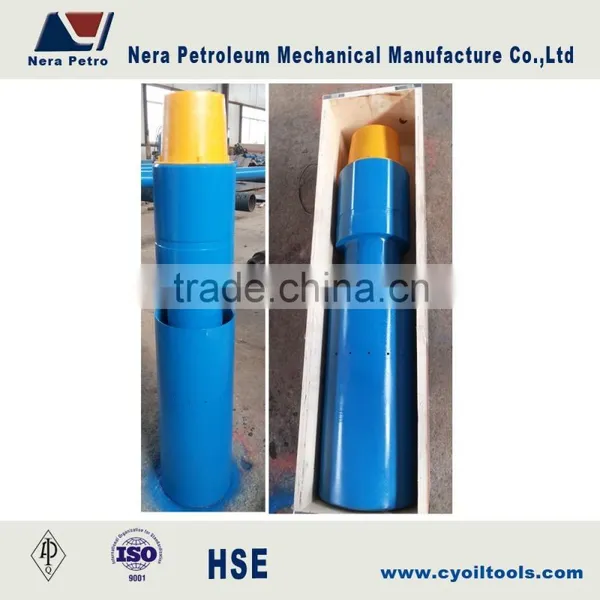

Junk Sub for Drilling
US$ 1,000 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Nera
Model Number:
CY035-001
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Bow Type Casing CentralizerUS$ 1 - 1,000MOQ: 1 Piece -
API Rigid Idler Wheel Casing CentralizerUS$ 1 - 1,000MOQ: 1 Piece
-
Oilfield Drilling Mud Pump,F1600,F1300,F1000 EMSCO Copy,Warehouse SupplyUS$ 1,000 - 100,000MOQ: 1 Set
-
Oil Well Grade D Pony RodUS$ 1 - 8MOQ: 10 Pieces
-
Oil Well Grade D Sucker RodUS$ 1 - 10MOQ: 10 Pieces
Place of Origin
Shandong, China
Brand Name
Nera
Model Number
CY035-001
Type
Other, Junk sub
Machine Type
Drilling Tool
Certification
API
Material
Stainless Steel
Processing Type
Forging
Use
Well Drilling
Junk sub is a special tool for catching the heavy iron fillings or grits which are too heavey to be completely circulated out of the hole. It is important for bottom-hole cleaning, ensuring the normal work of the bit and service lift.
Because of the different interspace to the wellbore between the cup O. and the rim of cup, the fluid speed dropped promptly and form a vortex,meanwhile, the carry ability of fludi also dropped. So the heavy objects in the fluid will fall into the cup and carried out in the trip process.
Specification:
| Model | Hole Size(mm) | Cup OD mm(inch) | Sub OD mm(inch) | ID mm(inch) | Conn. |
| NSLB 94 | 108~117.5 | 94 (3 45/64") | 79.3(3 1/8") | 20(25/32") | 2 3/8 REG |
| NSLB 102 | 117.5 ~124 | 102(4") | 92 (3 5/8") | 32(1 1/4") | 2 7/8 REG |
| NSLB 127 | 152.4~162 | 127(5") | 105(4 1/8") | 38(1 1/2") | 3 1/2 REG |
| NSLB 168 | 165~190.5 | 168 (6 5/8") | 146(5 3/4") | 57(2 1/4") | 4 1/2 REG |
| NSLB 203 | 235~279.5 | 203(8") | 168(6 5/8") | 57(2 1/4") | 4 1/2 REG |
| NSLB 229 | 254~305 | 229(9") | 197(7 3/4") | 71 (2 13/16") | 6 5/8"REG |
| NSLB 330 | 374.7~444.5 | 330(12 63/64") | 241(9 1/2") | 76 (3") | 7 5/8"REG |
