Specifications
widely used in1) Plastic molding machines
2) Rubber molding machines
3) Heaters
4) Furnaces etc.
Digital Temperature Indicator
FEATURES:
- Wide range -50 C to 1200 C.
- Input for J, K, PT-100.
- Highly accurate and reliable.
- 3½ Digit high bright 7 segment L.E.D. display.
- Number of channel 2, 4, 6, 8, 12 etc.
- Built in cold junction compensation for thermocouples.
- Channel selection by rotary switch.
- Compact Standard DIN size.
TABLE:
INPUT |
RANGE°C |
RESOLUTION |
ACCURACY |
Iron/Constant-J |
-50 to 400 |
1°C |
1% |
Chromel/Alumel-K |
-50 to 1200 |
1°C |
0.8% |
PT-100(3Wire) |
-50 to 500 |
0.1 %1°C |
0.5% |
4 to 20 mA |
0 to 1999 |
0.001 to 1 |
0.5 % |
0 to 10 VDC |
0 to 1999 |
0.001 to 1 |
0.5 % |
OPERATION:

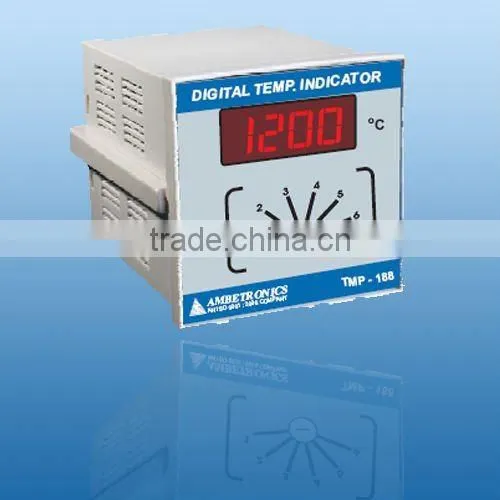

Digital Temperature Indicator TMP-188 is highly accurate and stable to withstand industrial environment. It accepts wider operating range. The 13 mm height bright 7 segments L.E.D display for easy read out. Built in cold junction compensation to provide reading more accurate under variation in Ambient temperature. The channel selection by smooth rotary switch. A large number of channels 2, 4, 6, 8,12 etc is also available on request. TMP-188 is compact and of standard DIN size.
APPLICATIONS:
The TMP-188 is widely used in Plastic molding machines, Rubber molding machines, Heaters, Furnaces etc.
