.Smart Laser Sensor

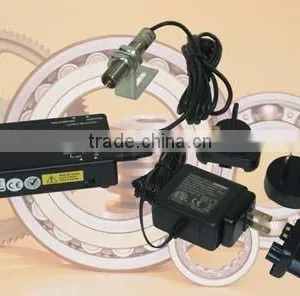

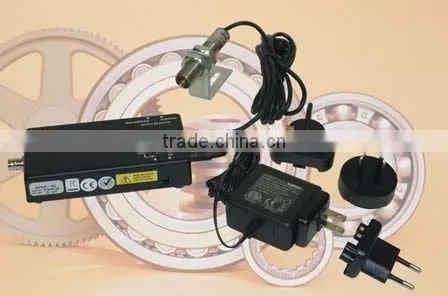

SPSR Series and Smart Laser Sensor
The unique SPSR Series of Self-Powered Sensors provide a TTL compatible pulse output from any of four input sensors.:
- A laser light source (ROLS-P)
- A visible optical red LED light source (ROS-P)
- An infrared light source (IRS-P)
- An amplified magnetic sensor (MT-190P)
The TTL compatible pulse output is switch selectable as either positive going 0-5V pulses or negative going 5-0V pulses provided on a BNC connector. Internal rechargeable batteries provide 40 hours of operation between charges. For continuous operation, all SPSR configurations can be powered by 115Vac, 230Vac or 9-15Vdc. Self-powered sensors are a critical element for providing one TTL pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers and magnetic tape recorders
APPLICATIONS:
- Vibration Studies
- Fans/ Blades
- Engines/Motors
- Balancers
- Tach Input
- Data Acquisition
TECHNICAL SPECIFICATIONS | |
|
SPSR Series |
Range (RPM) |
Same as sensor |
Output Signal |
TTL compatible pulse,0-5V or 5-0 V |
Pulse width |
Determined by size of target and rotational speed |
Output Connector |
BNC |
Power |
Built in rechargeable battery pack (NiMH), 4.8 Vdc |
