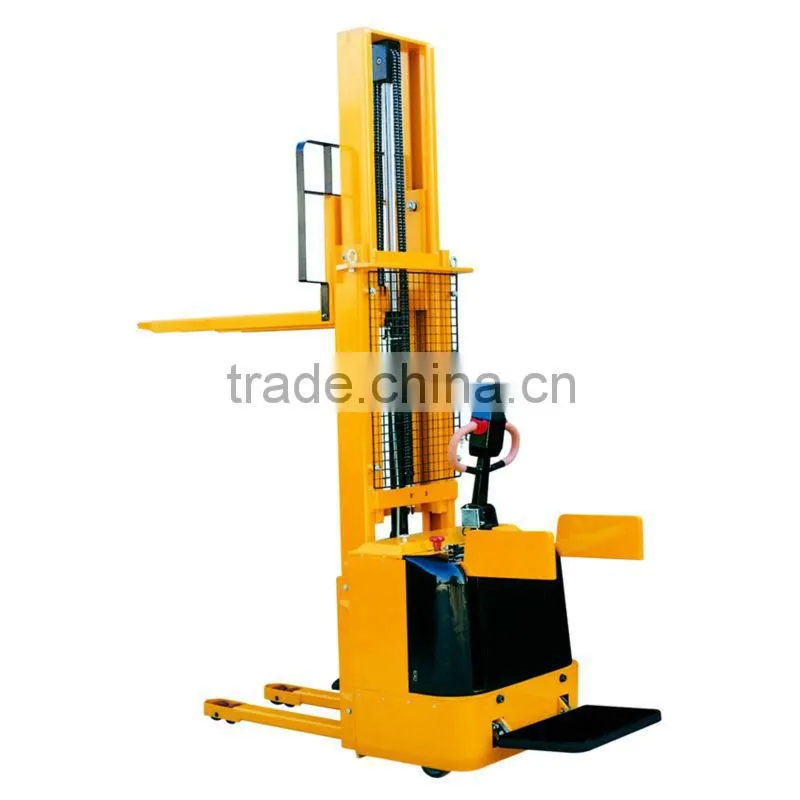

Full Battery Operated Pallet Forklift Stacker With Stand on Platform

Name: Full Battery Operated Pallet Forklift Stacker With Stand on Platform
Brand: NU-LIFT
SKU: 130099537

US$ 3,200 - 5,500 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

NU-LIFT

Nu-Lift Equipment Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name NU-LIFT

Model Number CDS1516, CDS1524, CDS1529, CDS1531, CDS1533

Dimension(L*W*H) 2000x1080x2000mm

Certification CE

Warranty One year

After-sales Service Provided Overseas third-party support available

Heavy duty range for tough application .
Top quality electronic control system from Curtis.
With stand platform and arm rest.

Both AC and DC are available.

Model		CDS1516 CDS1516AC	CDS1524 CDS1524AC	CDS1529 CDS1529AC	CDS1531 CDS1531AC	CDS1533 CDS1533AC
Capacity	(kg)	1500	1500	1500	1500	1500
Lifting Height	h3(mm)	1600	2450	2900	3100	3300
Min.Fork Height	h(mm)	90
Load Centre	C(mm)	600
Fork Length	I(mm)	1150
Fork Width	M(mm)	540
Travelling Speed		Without Load5.5km/h, With Full Load 4.8km/h
Lifting Speed		Without Load144mm/s, With Full Load 95mm/s
Lowering Speed		Without Load65mm/s, With Full Load 150kmm/s
Motors Travelling		1.2KW/24V
Motors lifting		2.2KW/24V
Battery /Charger		200 Ah/24V, 20A/24v
Traction Battery(option)		240Ah/24V
Front Roller	(mm)	78×70
Rear Roller	(mm)	150×75
Drive Wheel	(mm)	250×80
Net Weight	(kg)	624	680	702	715	724

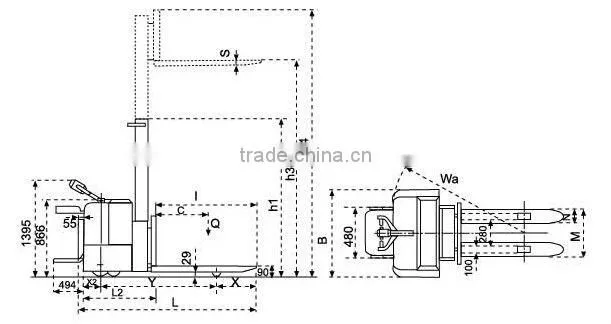

Dimension (mm)	X	460
	S	56
	X2	200
	Y	1270	1270	1270	1270	1270
	L2	780	780	780	780	780
	L	2424	2424	2424	2424	2424
	N	160
	h1	2090	1800	2025	2125	2225
	h4	2244	3094	3544	3744	3944
	B	940	940	940	1080	1080
	Wa	Platform extended:2000mm Platform folded:1540mm
