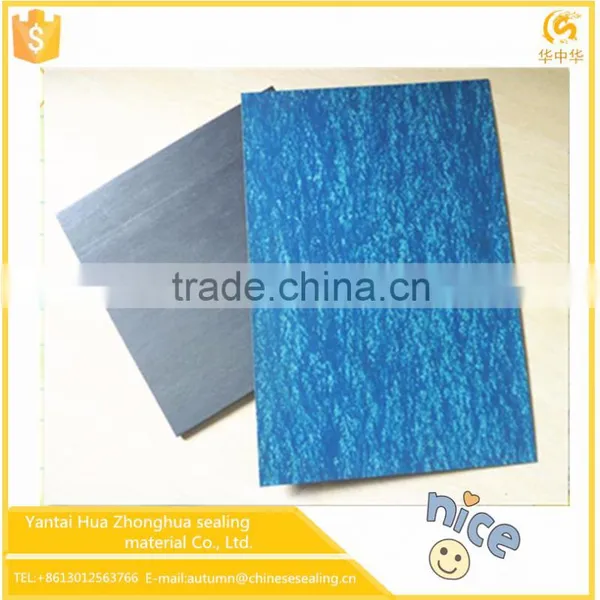

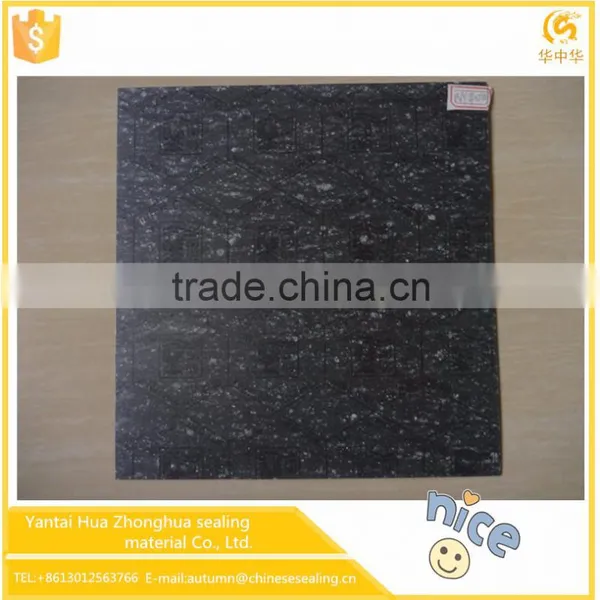

Help CenterNon-Asbestos Jointing Rubber Gasket Sheet
Related Products
-
OIL Jointing Sheet Gasket Sheet - Compressed 100% Asbestos Free Fiber Manufacturer Oil Resistant Gasket SheetUS$ 1 - 2MOQ: 1 Ton -
Non Asbestos Rubber Sheet, Gasket Sheet for Boiler and Pipelines Jointing XB350,sealing Joint Material Sheet XB350US$ 1.9 - 2.1MOQ: 1 Ton
-
No Asbestos Rubber Sheet in Low Temperature No Asbestos Sealing Plate The Highest Temperature 250 , the Maximum Working PressurUS$ 1 - 2MOQ: 500 Pieces
-
No Asbestos Sealing Plate Mainly Used in Machinery, Valves, Petrochemical, Pipe Flange and the Working Condition of Tower VesselUS$ 1.9 - 2MOQ: 500 Pieces
-
2.7 Meters Wide Non-asbestos Rubber Sheet Universal Board and Non-standard Customized Seal Products Non Asbestos Joint SheetUS$ 1.1 - 2.1MOQ: 1 Ton
Designation of Product National Standard : GB/T3985-1995
Colors: red, green, etc.
DESCRIPTION:

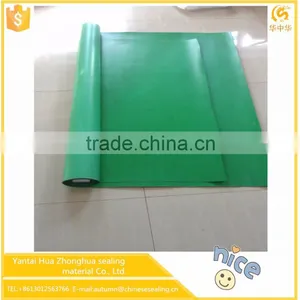

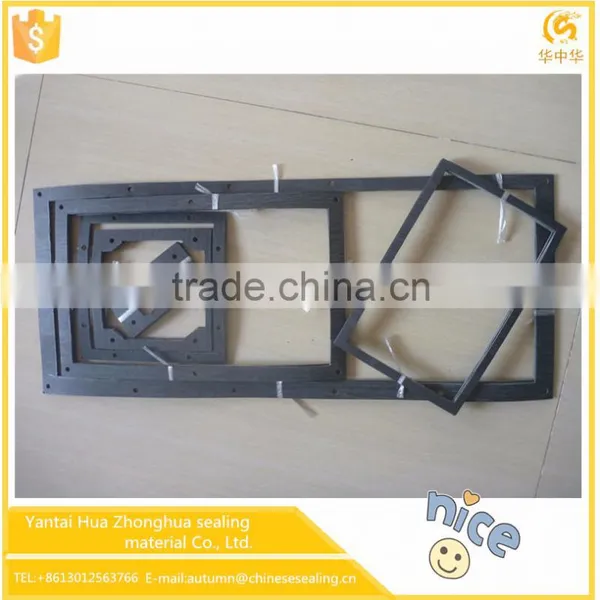

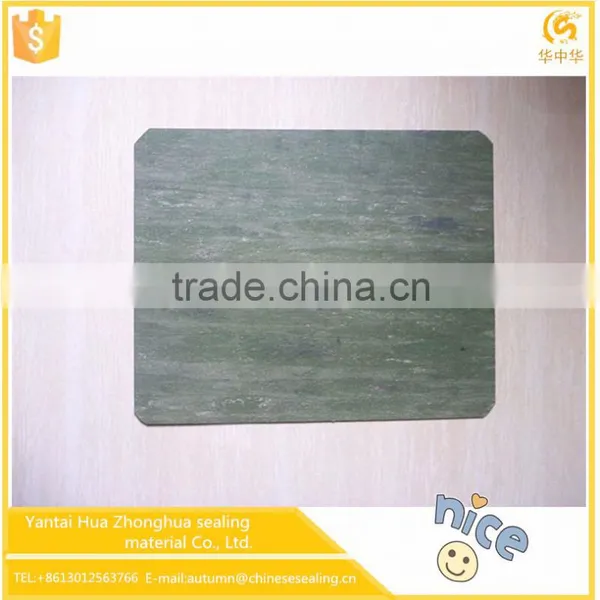

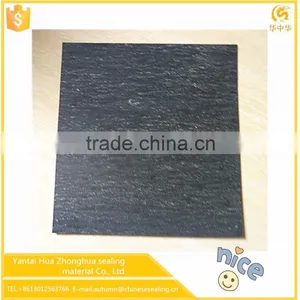

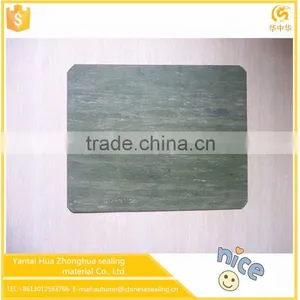

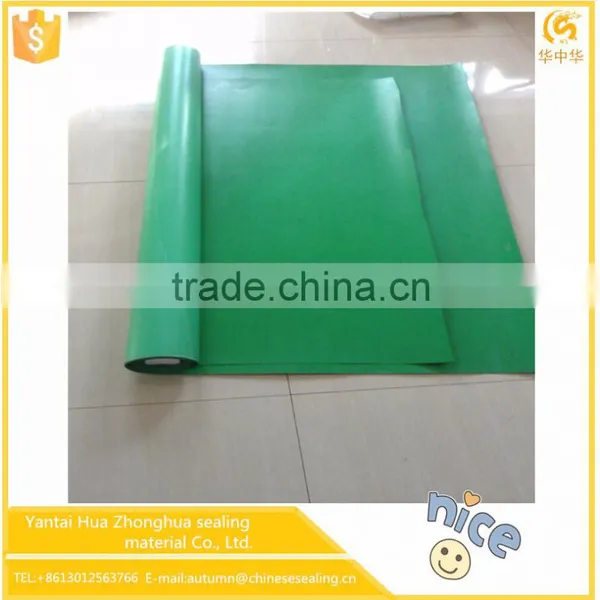

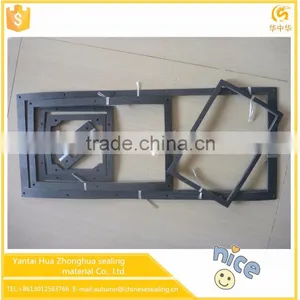

Made from Non-asbestos fiber and rubber by compression.
APPLICATION: Suitable to sealing gaskets for common water caliduct equipment and low pressure water and steam pipe.
PHYSICAL PROPERTIES:
Tensile strength, MPa ………………≥ 6
Density, g/cm3 …………………… 1.6 ~ 2.0
Compressibility, %…………………………12±5
Recovery, % ………………………≥ 35
The item above is supplied in sheets 1500×1350mm,1270×1270mm or 1270×3810mm, and in thickness 1.0, 2.0 or 3.0mm.
Style |
Temperature |
Density |
Pressure |
Tensile Strenght |
Recovery |
Compressibility |
Thickness |
XB200 |
200oC |
1.94g/CM3 |
1.5Mpa |
>=6Mpa |
>=35% |
12+/5% |
0.4mm----6.0mm |
XB300 |
300oC |
1.94g/CM3 |
3.0Mpa |
>=9Mpa |
>=40% |
12+/5% |
0.4mm----6.0mm |
XB350 |
350oC |
1.94g/CM3 |
4.0Mpa |
>=12Mpa |
>=40% |
12+/5% |
0.4mm----6.0mm |
XB450 |
450oC |
1.94g/CM3 |
6.0Mpa |
>=19Mpa |
>=45% |
12+/5% |
0.4mm----6.0mm |
NY150 |
150oC |
1.94g/CM3 |
1.5Mpa |
>=9Mpa |
>=35% |
12+/5% |
0.4mm----6.0mm |
NY250 |
250oC |
1.94g/CM3 |
2.5Mpa |
>=11Mpa |
>=45% |
12+/5% |
0.4mm----6.0mm |
NY300 |
300oC |
1.94g/CM3 |
3.0Mpa |
>=12.7Mpa |
>=50% |
12+/5% |
0.4mm----6.0mm |
NY400 |
400oC |
1.94g/CM3 |
4.0Mpa |
>=14Mpa |
>=50% |
12+/5% |
0.4mm----6.0mm |
NY510 |
510oC |
1.93g/CM3 |
4.0 Mpa |
>=15Mpa |
>=50% |
12+/5% |
0.4mm----6.0m |
Packing by pallets and shiping by sea ,air ,train etc.
MORE detailed questions about the products,pls contact me below:
We have the best service from inquiry till finish the order.And after sale also short time deal with the production question.

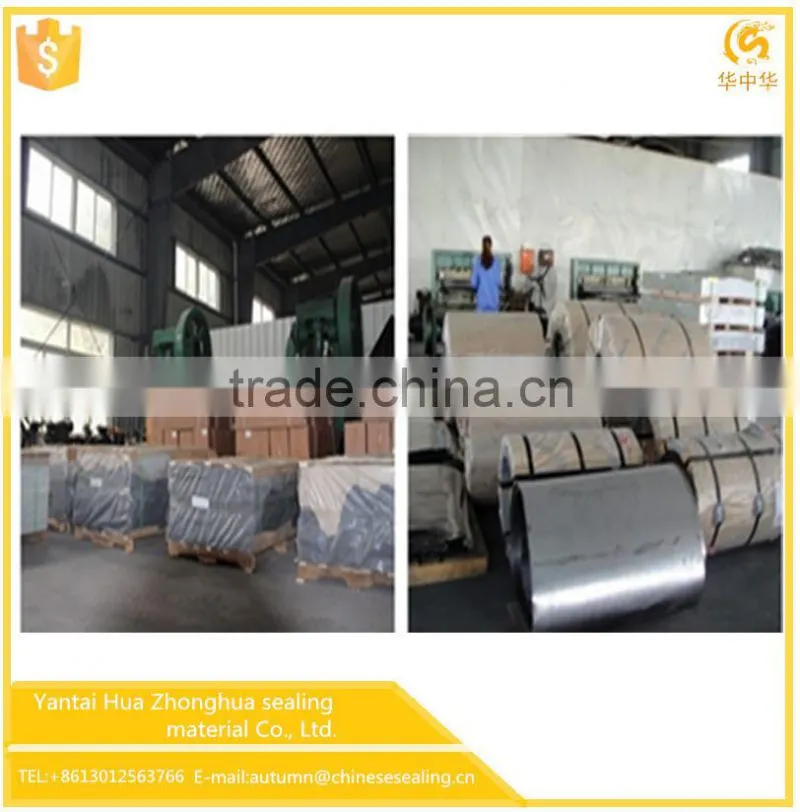

Yantai Hua Zhonghua Sealing Material Co., Ltd. is located in Yantai, Shandong Province, a beautiful downtown ZHIFU, focusing on the production and operation of non-asbestos rubber sheet, cylinder head gasket, gaskets, non-asbestos rubber sheet, graphite plate, composite panels and other sealing materials, sealing products, companies adhere to "providing the market with high-quality, stable, and most cost-effective product" concept to better products and better services market returns. Company goals: advancing innovation, international best domestic products. Sales motto: service-oriented.
