Help CenterPotentiometer B10k
Related Products
Specifications
1)potentiometer b10k2)potentiometers expert
3)potentiometers since 1967 years
4)brand:rocket
5)best price
Potentiometer Expert since year 1967!
Company tenent: "What customer needs is our pursuit!"
Company aim: Pursue technology innovation, create green and intelligent life.
Product Type & Condition :
1. Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated . So,please consult the stock situation when you inquire.
Buyer Reading:
1. Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution .
2. We only guarantee Delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.
-
Rated power
A:1-1.5W
ing voltage
500V
Resistance range & tolerance
100Ω --2MΩ ±20%
Resistance tape
A. B . C.
End resistance
20 Ω max
Rotational noise
≤ 47mV
Shaft material
metal shaft,can be with plastic shaft
Rotation torque
2--20mN.m
Total mechanical travel
260°±10°
Mechanical life
10000cycles
All resistance below
-
-
B101-100Ω
B501--500Ω
B102--1k
B202--2k
B502--5k
B103--10k
B203--20k
B503--50k
B104--100k
B204--200k
B254--250k
B504--500k
B105--1M
-

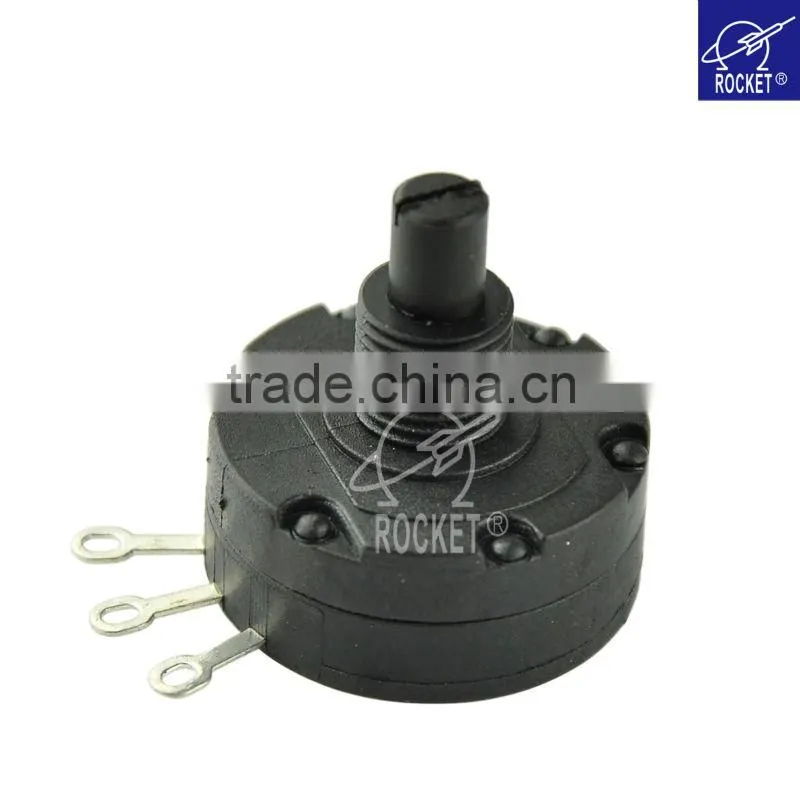

Item No.: RVP28 potentiometer b10k
