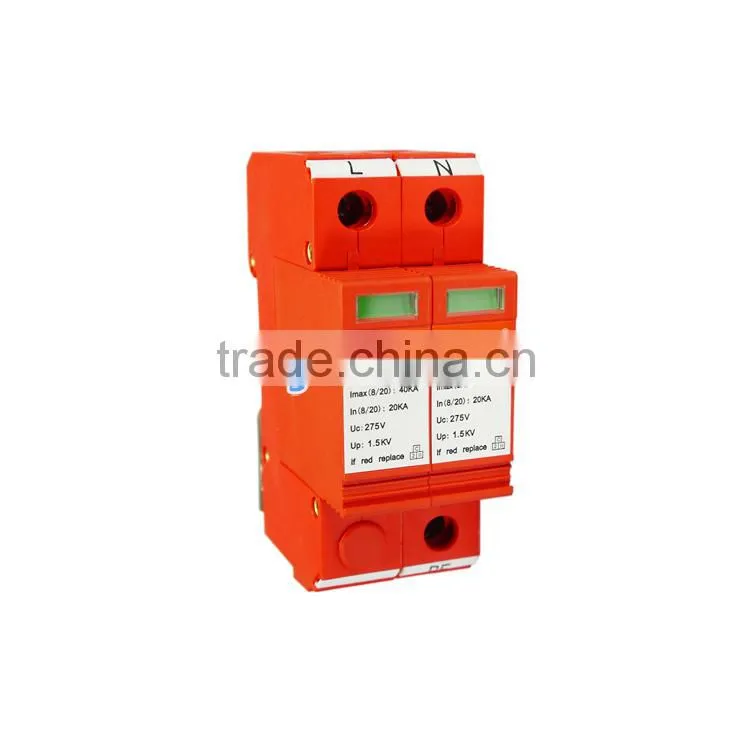

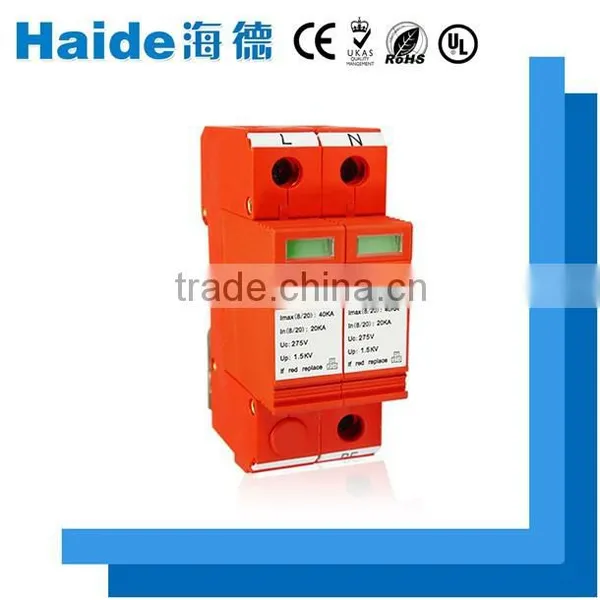

Red 220V 40KA surge protector for trade assurance

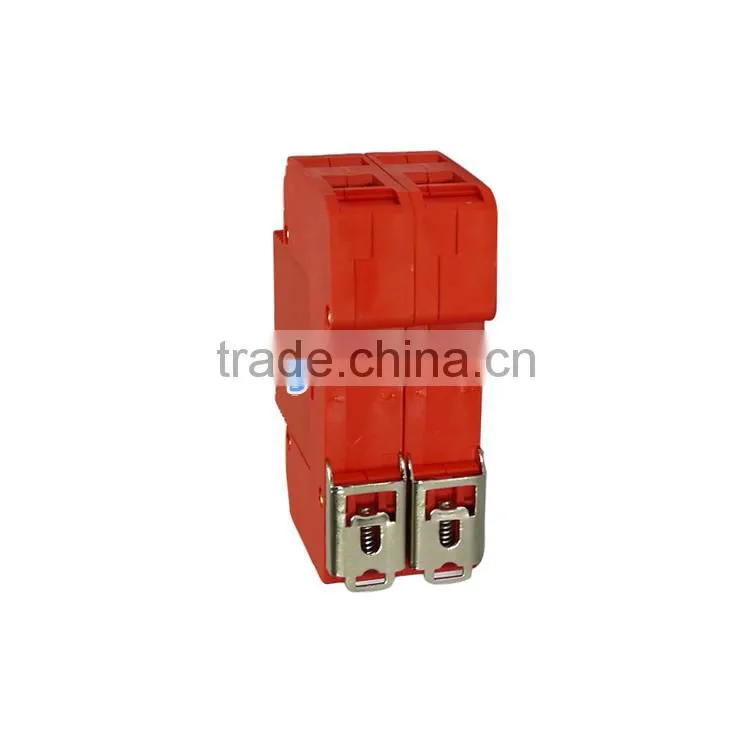

Electrical surge protector of low voltage distribution system is designed according to IEC standard.It has invalidation indication,standard modularization installation,changeable lightning protection module and powerful discharge capacity of lightning current. It's applicable to the protection of buildings' general supply system against lightning. With 35mm standard guide-way,this lightning arrester is very convenient to be maintained.It connects with the circuit parallel and has no limit to the power of equipment fixed later.
surge protector for trade assurance
| Model | HD-D220M40A |
| Nominal working voltage Un | 220V |
| Maximum continuous working voltage Uc | 275V |
| Nominal discharge current In(8/20 us) | 20KA |
| Maximum discharging current Imax(8/20 us) | 40KA |
| Voltage protection level Up | 1.5KV |
| Response time Ta | ≤25 ns |
| Operating temperature range Tup | -40 ℃ to +80 ℃ |
| Section of minimum installed conductor | 10mm² multi-folded wire |
| Protection grade | IP20 |
| External dimension | 36/72*66*90mm,54/108*62*90mm |
| Sheathing material | flame retardant thermoplastic material |
| Mode of connection | parallel connection |
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.

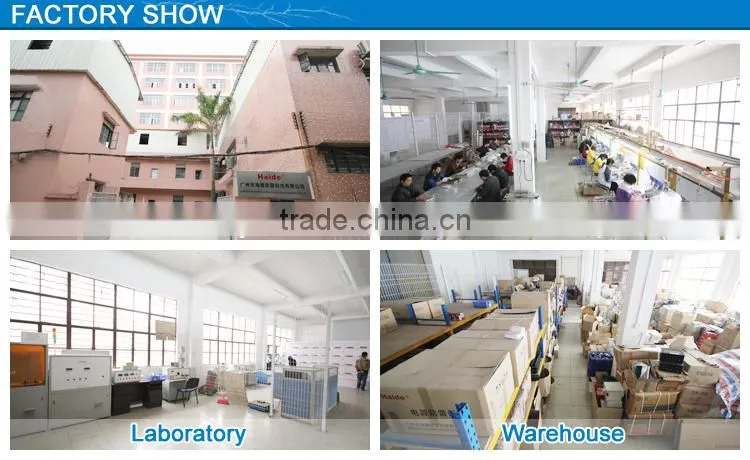

3..Professional manufacture. Welcome to our website:https://img13.fr-trading.com/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
surge protector for trade assurance
