Specifications
1electric surge protection spd1.GB 18802.21-04 & IEC 61643-1-05
2.CE & ISO9001
3.Network lightning arrester

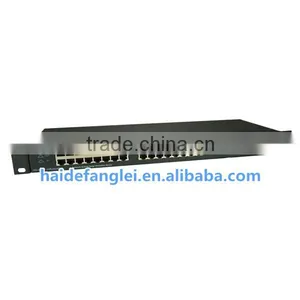

B1 HD-XNET-24RJ45/8 electric surge protection spd
electric surge protection spd

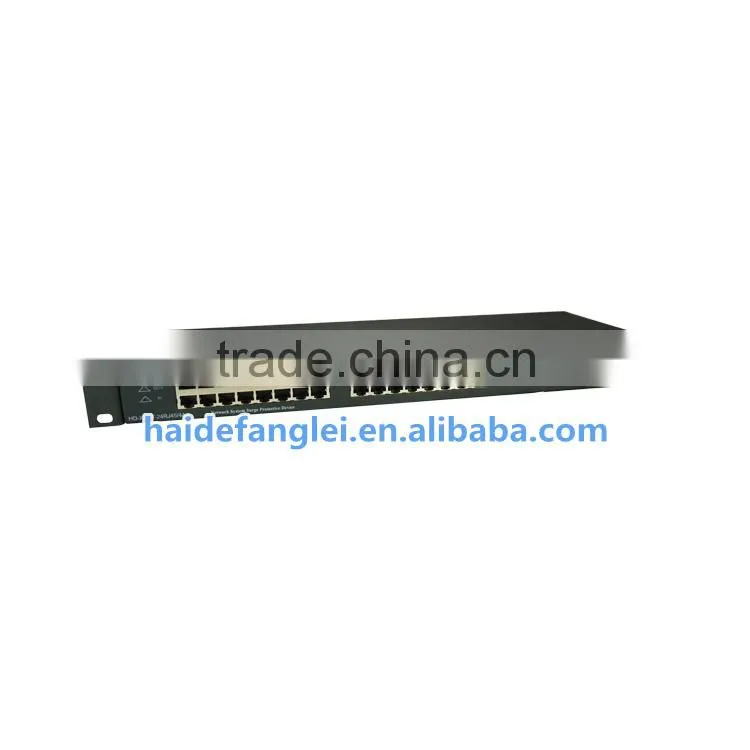

Design of this product considers fully that the electrode capacitance and distributed capacitance would lessen data signaling with small insertion loss.The product contains 4-wire (1/2,3/6) and 8-wire (1-8) protection,with quick message transmission rate.Port number includes single,8-port,12-port,16-port and 24-port.The semiconductor manostat endows it with precise clamp voltage.Residual pressure output is very low,which can protect the computer network facility effectively.It adopts RJ45 interface,which is applicable to the port protection of cat5 network signal line of serve,intelligence terminal,HUB and network switch.
| Model | HD-XNET-24RJ45/8 | Power supply |
| Nominal working voltage Un | 12V | 180V |
| Maximum continuous working voltage Uc | 15V | 200V |
| Nominal discharge current In(8/20us) | 300A | 2.5KA |
| Maximum discharging current Imax(8/20us) | 600A | 5KA |
| 1KV/us Voltage protection level Up | (X-X)≤35V |
|
(X-G)≤35V | ||
| (8/20us)Limiting voltage Up | 600V | |
| Series impedance R | 1Ω | |
| Protection grade | IP20 | |
| Insertion loss | ≤0.2dB | |
| Interface mode | RJ45 | Normal power supply socket |
| Mode of connection | Aluminium alloy spraying | |
| External dimension | 482*44*150mm | |
1.ISO9001&CE certificate;
2.Any inquiries will be replied within 24 hours;
3.Professional manufacture:
Welcome to our website:https://img13.fr-trading.com/
4.High quality, fashion designs, reasonable &competitive price, fast lead time;
5.OEM available;
6.After-Sale Service:
·Provide technical advice and maintenance knowledge and installation guide;
·Customers response time for one working time;
·All the products provide five year commitment to service;
·All the products are accompanied by China Pacific property insurance co;ltd.
7.Fast delivery:
Sample order in stock, and 7-15 working days for full production;
8.Terms of payment:
You can pay for the order via: T/T, Western Union, PayPal &Money Gram;
9.Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder;
10.Quality warranty:
5 years warranty
