HOT Sales Copper Wire PVC Insulated Building Cable for Africa Market

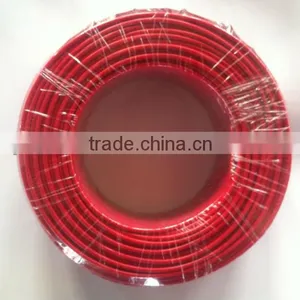

HOT Sales Copper Wire PVC Insulated Building Cable for Africa Market thumbnail-1

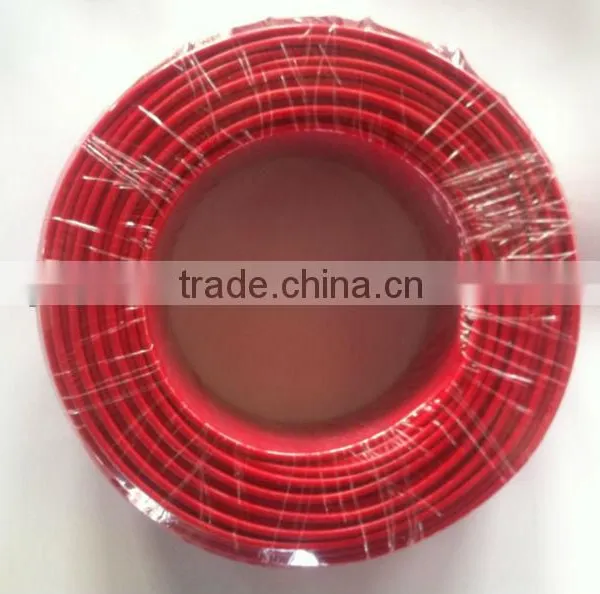

HOT Sales Copper Wire PVC Insulated Building Cable for Africa Market photo-1
US$ 0.1 - 5 MOQ: 50 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
yojin or OEM
Model Number:
CU/PVC BV wire
Contact Supplier Request Quote Chat Now
Shanghai Yongjin Cable Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name yojin or OEM
Model Number CU/PVC BV wire
Type Insulated
Application Heating
Conductor Material Copper
Conductor Type Solid
Insulation Material PVC

Specifications

99.9% pure copper wire
flexible or solid copper conductor
ISO9001 ISO14000
CCC certificate
Good quality alway make you happy

Good sales PVC insulation 99.99% pure copper conductor electrical wire



Shanghai Yongjin Cable (Group) Co., Ltd. is one of the biggest cable manufacturer in China,Our company specializes in the production of power cable electrical wire,control cable.ACSR,special cable.from low voltage to high voltage.



1.STANDARD

GB 5023.11997 , JB 8734.15-1998, GB 5023.17-1997,  IEC227

2 Voltages U0/U:

450/750V  300/500V  300/300V

Max. permissible continuous operating temperature of the conductor: 70°C
The ambient temperature under installation should not below 0.

Impedance (ohms): 100±2ohm

3 Application

The products is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less

4 Specification and Technical Data

solid conductor(class2)

Nominal
sectional area
mm2 		Conductor
No/Dia.
mm		 Nominal
Insulated thick
mm		 Max overall
Dia.
mm		 Condcutor
Resistance at
20		 Min insulated
resistance at
70MΩ/km		 Weight
Kg/km
Cu Al Cu Al
1.5 1/1.38 0.7 3.3 12.1 - 0.011 19.2 -
2.5 1/1.78 0.8 3.9 7.41 11.8 0.010 30.8 15.0
4 1/2.25 0.8 4.4 4.61 7.39 0.0085 45.5 21.0
6 1/2.76 0.8 4.9 3.08 4.91 0.0070 65.0 29.0
10 7/1.35 1.0 7.0 1.83 3.08 0.0065 110.0 52.0
16 7/1.70 1.0 8.0 1.15 1.91 0.0050 170.0 70.0
25 7/2.14 1.2 10.0 0.727 1.20 0.0050 270.0 110.0
35 7/2.52 1.2 11.5 0.524 0.868 0.0040 364.0 150.0
50 19/1.78 1.4 13.0 0.387 0.641 0.0045 500.0 200.0
70 19/2.14 1.4 15.0 0.268 0.443 0.0035 688.0 269.0
95 19/2.52 1.6 17.5 0.193 0.320 0.0035 953.0 360.0
120 37/2.03 1.6 19.0 0.153 0.253 0.0032 1168.0 449.0
150 37/2.25 1.8 21.0 0.124 0.206 0.0032 1466.0 551.0
185 37/2.52 2.0 32.5 0.099 0.164 0.0032 1808.0 668.0



 Flexible conductor(class5)

Nominal
sectional area
mm2 		Conductor
No/Dia.
mm		 Nominal
Insulated thick
mm		 Max overall
Dia.
mm		 Condcutor
Resistance at
20		 Min insulated
resistance at
70MΩ/km		 Weight
Kg/km
2.5 9/0.41 0.8 4.2 7.41 0.011 33.0
4 19/0.52 0.8 4.8 4.61 0.009 48.0
6 19/0.64 0.8 5.6 3.08 0.0084 68.0
10 49/0.52 1.0 7.6 1.83 0.0072 115.0
16 49/0.64 1.0 8.8 1.15 0.0062 176.0
25 98/0.58 1.2 11.0 0.727 0.0058 272.0
35 133/0.58 1.2 12.5 0.524 0.0052 384.0
50 133/0.68 1.4 16.5 0.387 0.0051 510.0
70 189/0.68 1.4 16.5 0.268 0.0045 714.0
95 259/0.68 1.6 19.5 0.139 0.0035 965.0
120 259/0.76 1.8 22.0 0.153 0.0032 1210.0
150 259/0.85 1.8 25.0 0.124 0.0032



5 products manufacture procedure



We have more specifications, contact me I will give you more details.



YONGJIN CABLE     BRING YOU BRIGHT!!!!!!
