Specifications
this product is fit for AC rated under than 450/750v .IEC or GB standard , CCC certificate .
RV : Copper core PVC insuiation jointed flexible wire .
RVB : Copper core PVC insuiation paralled jointed flexible wire
RVS : Copper core PVC insuiation twisted jointed flexible wire
RVV : Copper core PVC insuiation sheath paralled joined flexible wire
the working temperature of RV-90 model not more than 90°C,other not more than 70°C,
installation temperature not lower than 0°C.
Nominal |
Conductor |
Nominal |
Max overall |
Condcutor |
Weight |
||
Cu |
Al |
Cu |
Al |
||||
1.5 |
1/1.38 |
0.7 |
3.3 |
12.1 |
- |
19.2 |
- |
2.5 |
1/1.78 |
0.8 |
3.9 |
7.41 |
11.8 |
30.8 |
15.0 |
4 |
1/2.25 |
0.8 |
4.4 |
4.61 |
7.39 |
45.5 |
21.0 |
6 |
1/2.76 |
0.8 |
4.9 |
3.08 |
4.91 |
65.0 |
29.0 |
10 |
7/1.35 |
1.0 |
7.0 |
1.83 |
3.08 |
110.0 |
52.0 |
16 |
7/1.70 |
1.0 |
8.0 |
1.15 |
1.91 |
170.0 |
70.0 |
25 |
7/2.14 |
1.2 |
10.0 |
0.727 |
1.20 |
270.0 |
110.0 |
35 |
7/2.52 |
1.2 |
11.5 |
0.524 |
0.868 |
364.0 |
150.0 |
50 |
19/1.78 |
1.4 |
13.0 |
0.387 |
0.641 |
500.0 |
200.0 |
70 |
19/2.14 |
1.4 |
15.0 |
0.268 |
0.443 |
688.0 |
269.0 |
95 |
19/2.52 |
1.6 |
17.5 |
0.193 |
0.320 |
953.0 |
360.0 |
120 |
37/2.03 |
1.6 |
19.0 |
0.153 |
0.253 |
1168.0 |
449.0 |
150 |
37/2.25 |
1.8 |
21.0 |
0.124 |
0.206 |
1466.0 |
551.0 |
185 |
37/2.52 |
2.0 |
32.5 |
0.099 |
0.164 |
1808.0 |
668.0 |

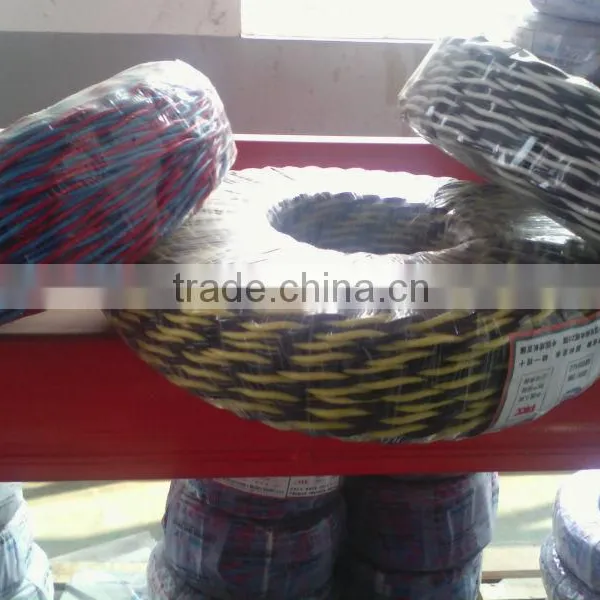

PICTURE'S SHOW ====>
