Specifications
this product is fit for AC rated voltage under than 450/750v .IEC 60227 or GB/T 50231 standard , CCC certificate .
RV : Copper core PVC insuiation jointed flexible wire .
RVB : Copper core PVC insuiation paralled jointed flexible wire
RVS : Copper core PVC insuiation twisted jointed flexible wire
RVV : Copper core PVC insuiation sheath paralled joined flexible wire
227 IEC 52(RW): light-weight PVC sheath flexible wire .
RV-90 model not more than 90°C,other not more than 70°C,
installation temperature not lower than 0°C.
the length of cables should be in according to mutual agreements .
the number of cores is one , two ,three, four & five .
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
More specification provided, contact me for more certificate and more size !
my email id feiyun_yjcable@
skype id feiyun-tang

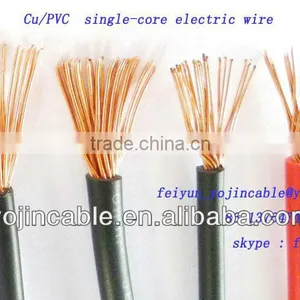

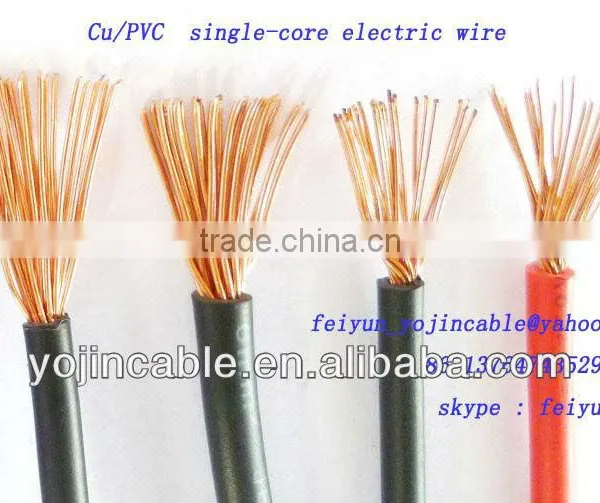

PICTURE'S SHOW ====>
Our company has been carrying out Chinese national standard GB 5023 (equivalent to IEC60227) for PVC sheath wire and fire resistant wire needed by domestic customer, and for foreigner customers we can manufacture in accordance with BS, DIN and other countries standards. conductor core is solid or flexible .
In addition, we can design and manufacture PVC or XLPE insulated power cable with special characteristics according to needs of customers. with ISO IEC GOST CE SGS Tuv certificate .
