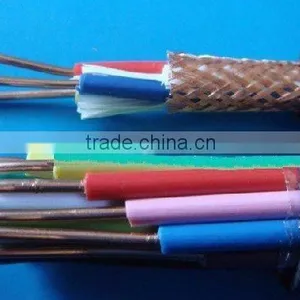

Help Center450/750v Copper Conductor PVC Insulated PVC Sheath Copper Wire Brading Shield Control Cable
Related Products
-
Copper Conductor Pvc Insulated Control CableUS$ 1 - 200MOQ: 5000 Meters -
Copper Conductor PVC Insulated Copper Wire Brianding Screened Control CableUS$ 0.3 - 4MOQ: 1000 Meters
-
IEC CE ISO GOST 450/750v Copper Conductor PVC Insulation PVC Sheath Electrical CableUS$ 1 - 200MOQ: 500 Meters
-
450/750v Copper Conductor PVC Insulated Pvc Sheath With Shield Control CableUS$ 1 - 200MOQ: 1000 Meters
-
IEC ISO CE GOST Certificates 450/750v Copper Conductor Pvc Insulation Pvc Sheath Control CableUS$ 0.4 - 67MOQ: 1000 Meters
Specifications
450/750v rated voltagestranded copper conductor
Fire Resistance PVC jacket
Standard:GB,IEC ,ISO9001
450/750v
Copper conductor PVC insulation copper wire braiding shield PVC sheath control cable
( KVVP)
this shield control cable can be used for laying indoors , in trenches , in ducsts and for fixed installation .
(1) The long-time working temperature of conductor of PVC insulated cable is 70oC,
XLPE insulated should not be above 90.
The temperature for laying the cables can not be lower than 0oC
(2) Permissible bending radius(r): unarmoured cable: r ≥ 6D ; ( D: outer diameter of the cable);
armoured or copper-tape screened cable : r ≥ 12D ; shielded flexible cable : r ≥ 6D
(3) The rated voltage is 450/750v and under 450/750v. The XLPE can be used in the place of 0.6/1KV.
i ) :The Model & Name ====>
Type |
Name |
Section Area(mm2) |
No. of Core |
Application Site |
KVV |
Copper Conductor,PVC Insulated and Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-16 |
Permanent installation indoors,in cable ditches or pipes |
4 6 |
2-14 |
|||
10 |
2-10 |
|||
KVVP |
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable |
0.75 1.0 1.5 2.5 |
2-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
2-14 |
|||
10 |
2-10 |
|||
KVVP2 |
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable |
0.75 1.0 1.5 2.5 |
4-10 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
7-61 |
|||
10 |
4-10 |
|||
KVV22 |
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
4 6 |
4-14 |
|||
10 |
4-14 |
|||
KVVR |
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
KVVRP |
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable |
0.5 0.75 1.0 |
4-61 |
Installation indoors where flexibility shielding and movability are required |
1.5 2.5 |
4-48 |
|||
KYJV |
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-16 |
Permanent installation indoors,in cable ditches or pipes |
4 6 |
2-14 |
|||
10 |
2-10 |
|||
KYJVP |
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
2-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
2-14 |
|||
10 |
2-10 |
|||
KYJV22 |
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
4 6 |
4-14 |
|||
10 |
4-10 |
|||
KYJVP2 |
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable |
0.75 1.0 1.5 2.5 |
7-61 |
Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 |
4-14 |
|||
10 |
4-10 |
|||
KYJVR |
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
KYJVRP |
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable |
0.5 0.75 1.0 |
4-61 |
|
|
|
1.5 2.5 |
4-48 |
Installation indoors where flexibility shielding and movability are required |

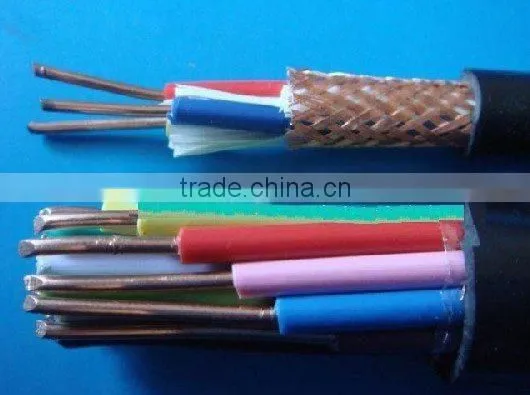

ii) : PICTURE'S SHOW ====>
