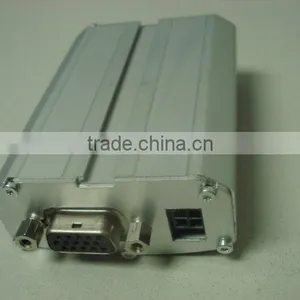

Help CenterHOT SALE WAVECOM MODULE Q2406B
Related Products
Specifications
Style:ExternalType:Wireless
Interface Type:RS-232
Model Number:M1306B
casing:aluminium
Detailed Product Description
Send and receive data, voice, e-mail, SMS
Industrial design
Aluminum casing
Wireless access to internet
Based on Wavecom module Q2406B
With TCP/IP protocol stack
Dual-band 900/1800MHZ
3V SIM card slot
DB15 RS232 interface
RJ11 for phone
SIM Application Toolkit
Double tone multi-frequency function (DTMF)
Send and receive data, voice, e-mail, SMS
SIM Application Toolkit
Maximum transmitting speed 115.2KB/s
GPRS Class 10
Antenna with high sensitivity
Always on-line
Conform with ETSI GSM Phase2+ standard
Output Power,
Class 4(2W @ 900MHz)
Class 1(1W @ 1800MHz)
Input voltage,6V-36V DC
Input current,1A-2A
Standby current,56mA
Working current, 100-140mA
Working temperature ,-20 °C -+55 °C
Storage temperature,-25 °C -+70 °C
Overall dimensions,73 x 54 x 25mm
Weight, 82g
Accessories, DB15 RS232 cable, antenna, 4-PIN power cable
Voice Features:
Telephony
Emergency calls
Full Rate, Enhanced Full Rate and Half
Rate (FR/EFR/HR)
Dual Tone Multi Frequency Function
(DTMF)
GSM Data Features:
Data circuit asynchronous, transparent
and non transparent up to 14,400 bits/s
MNP2, V.42bis
GPRS Packet Data Features:
GPRS Class 10, PBCCH support
Coding schemes: CS1 to CS4
Compliant with SMG31bis
Optional embedded TCP/IP stack
Short Messages Services features:
Text and PDU
Point to point (MT/MO)
Cell Broadcast
GSM Supplement Services:
Call Forwarding
Call Barring
Multiparty
Call Waiting and Call Hold
Calling Line Identity
Advice of Charge
USSD
Closed User Group
Explicit Call Transfer
