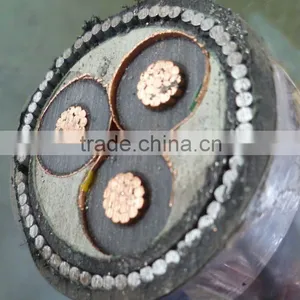

CU/XLPE/SWA/PVC Power Cable

Name: CU/XLPE/SWA/PVC Power Cable
Brand: Yojin
SKU: 130259107

Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Yojin

Model Number:

CU/XLPE/SWA/PVC power cable

Contact Supplier Request Quote Chat Now

Shanghai Yongjin Cable Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Yojin

Model Number CU/XLPE/SWA/PVC power cable

Insulation Material PE

Type Medium Voltage

Application Other, Industrial, Power sation

Conductor Material Copper

Jacket PVC

Specifications

CU/XLPE/SWA/PVC power cable
Underground power cable
PVC insulation cable
industrial power cable
ISO,CB certificatio

CU/XLPE/SWA/PVC power cable

1. Application: For laying in doors, in treches and in ducsts for fixed installation with capability of screening.

The product is suitable for use in power transmission and distribution lines with rated high voltage power frequency.

2. Standard According to GB/T12706-2008

3. XLPE insulated PVC sheathed power cable for medium voltage 8.7/15KV,

4. Conductor: Copper or aluminium
5. Section area: 25mm2---- 1200mm2
6. Core No.: one core, Three core
7. Insulation: XLPE

8. Sheath: PVC
9. Armour: Steel tape or steel wire
10. Working temperature: 90oC
11. Installation temperature: 0oC
12. Bending radius: A, Common bending radius:
A. 20D (1 and 2cores)
B. 15D (3 cores)
D= outer diameter
13. A single-core armoured cable is only applied to D.C transmission system. If it is required to use in A.S transimission system, no-magnetic material shhoud be applied as armoured tayer.
14. They can be made into flame retardant and fireproof type.
15. OEM is acceptable.
