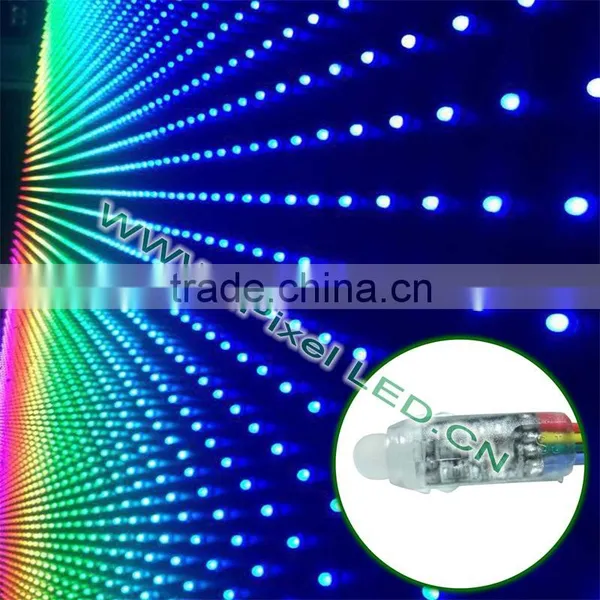

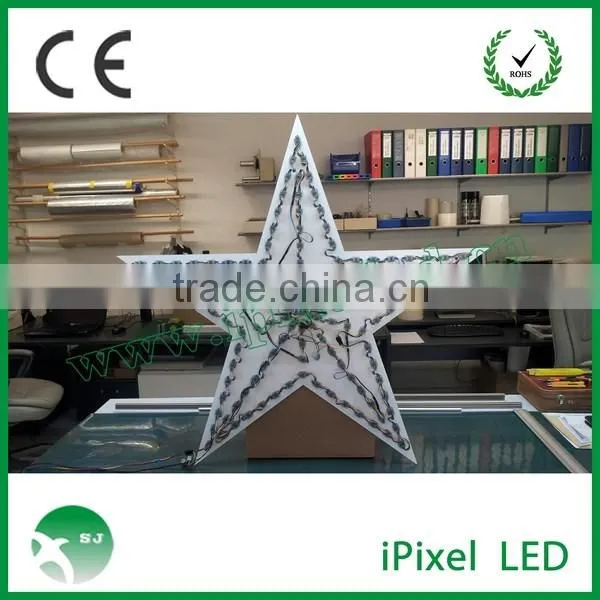

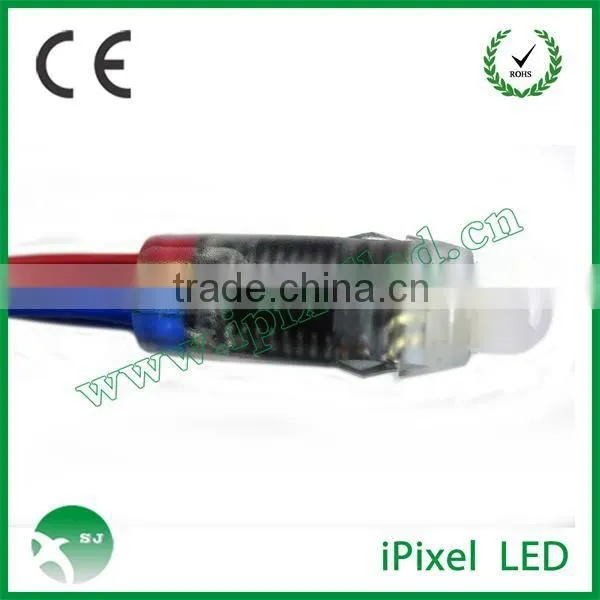

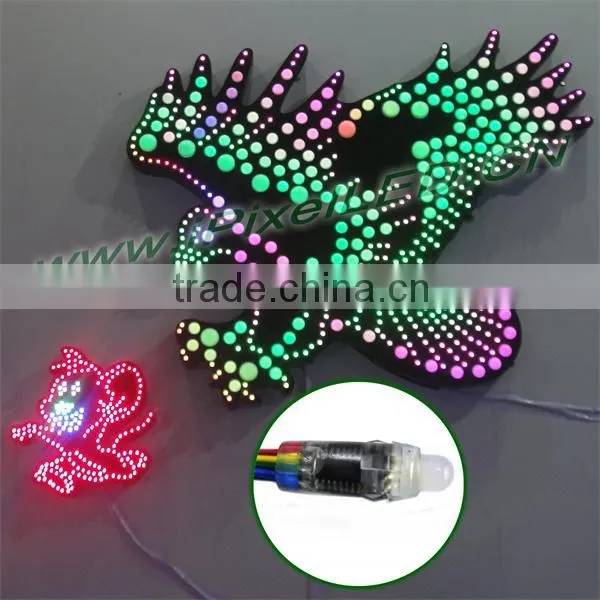

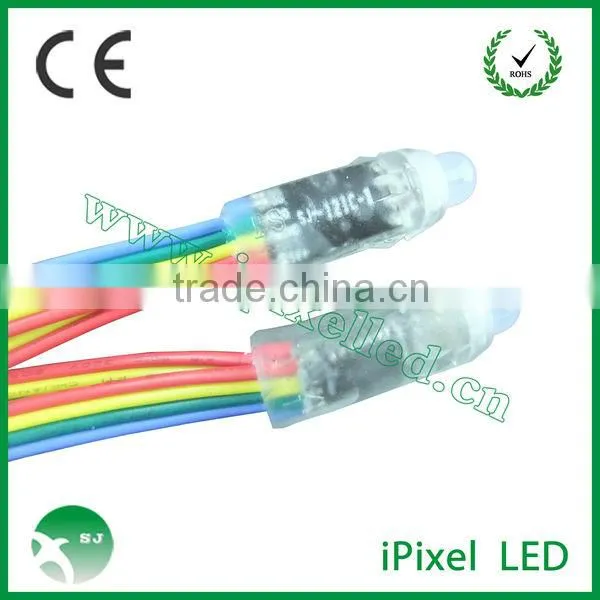

Full color arduino 12mm LED pixel dot light for carnival and channel letters
Features:
12mm Diffused Flat Digital RGB LED Pixels LPD6803
1.DC5V.0.3W/pcs
2.Strand of 50pcs, 8cm wire length between each LED
3.SD controller,DMX512
4.CE,RoHS
Specification:
| IC | lpd6803 |
Model NO. |
SJ-12-ICRGB |
Power Consumption |
0.3W |
Work Voltage |
DC5V |
Beam Angle |
≥120 |
LED Quantity |
1pcs |
Color |
Full color(ICRGB) |
Dimension |
12mm |
Waterproof Grade |
IP66 |
Work Temperature |
-40-60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
3 years |
Description:
The LPD6803 is similar to the D705. It’s also SPI driven, has 5-bit per channel, and has a choice of gamma correction. However, instead of different chips, this chip decides on using gamma-correction or not by pulling a pin low or high. Gamma-correction thus doesn’t depend on which chip used, but on the circuit of the LED-strip. Another thing to note is that these chips do not have an onboard oscillator, and the PWM runs off the SPI clock, so you’ll have to keep that running to actually use PWM.
Summarized:
SPI (two-wire)
5-bit per channel (15bpp), but needs SPI clock to stay active
3v to 5.5v operating voltage
Gamma-correction, but depends on LED-strip circuit
