Help CenterThrought Hole 1.5A Bridge Rectifier Diode
US$ 0.04 - 0.05
MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
WEJ
Model Number:
W10M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ultra Bright 3mm Blue Led Diffused With Wide Beam AngleUS$ 0.022 - 0.029MOQ: 20000 Pieces -
Super Brightness 10000mcd Round Type Through Hole Dip 5mm Led DiodeUS$ 0.018 - 0.024MOQ: 20000 Pieces
-
5mm 0.1W 7000-8500K Pure White 5mm Led DiodeUS$ 0.02 - 0.04MOQ: 20000 Pieces
-
Water Clear Round Top Round Straw Hat 5mm LED Green DiodeUS$ 0.01 - 0.02MOQ: 10000 Pieces
-
Red and Green Water Clear 5mm Bi-color Led Lights Common AnodeUS$ 0.01 - 0.02MOQ: 10000 Pieces
Place of Origin
Guangdong, China
Brand Name
WEJ
Model Number
W10M
Type
Bridge Rectifier
Application
Automobile
Package Type
Throught Hole
Peak Repetitive Reverse Voltage
1000V
Mean On-State Current
1.5A
Specifications
1.5A Bridge1. Production Volume: 50KK/month
2. Various packages: DBS, MBS, RS-2, GBPC, GBU, KBU, KBL
3. 15years' experience

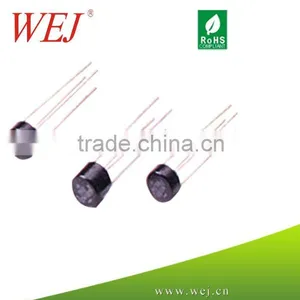

throught hole 1.5A bridge rectifier diode
Features:
1. Low cost
2. This series is UL recognized under component index, file number E127707
3. High forward surge current capability
4. Ideal for printed circuit board
5. High temperature soldering guaranteed: 260°C/10 second, 0.375″(9.5mm) lead length at 5 lbs.(2.3kg) tension.
Mechanical Data:
Case: Molded Plastic body
Terminal: Lead solderable per MIL-STD-202E mothod 208C
Polarity: Polarity symbols marked on case
Mounting position: Any
Weight: 0.042ounce, 1.2gram

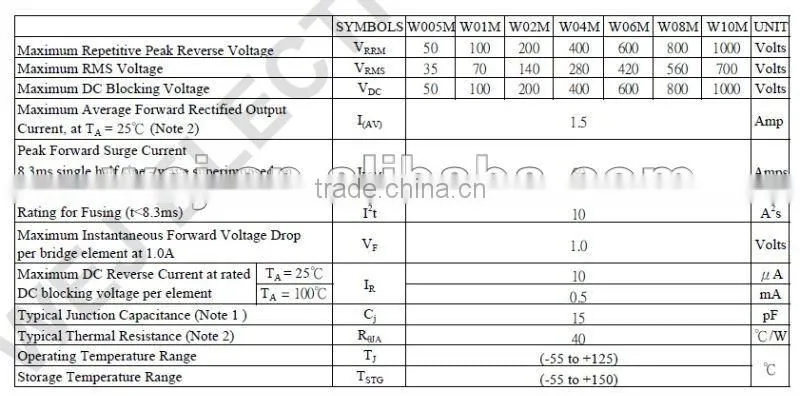

Detailed Spec:

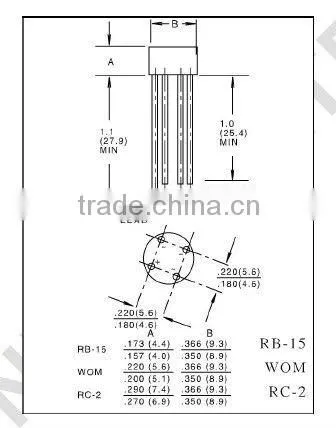

Pacakge Dimension:

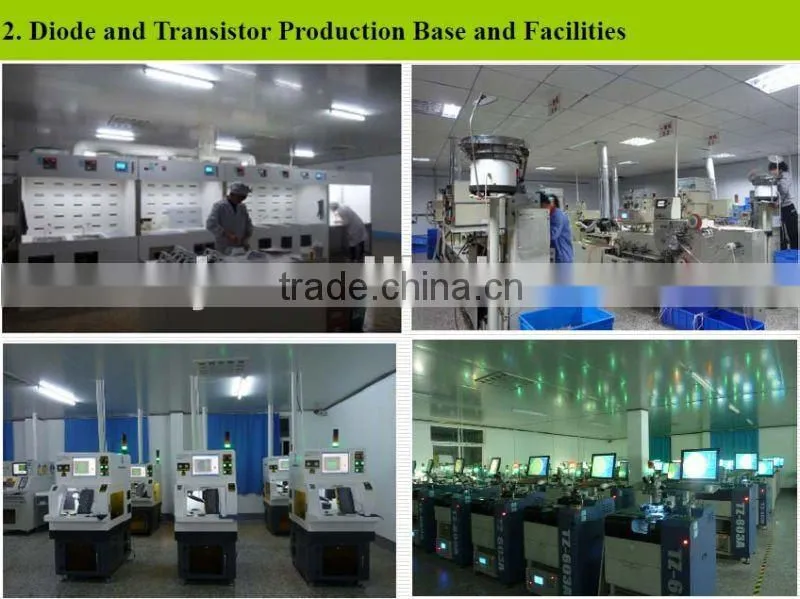

Factory and Facilities:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
