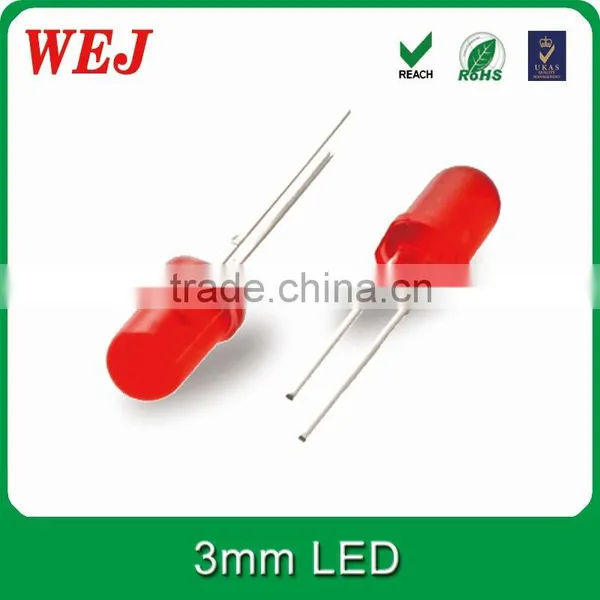

Super Bright 660nm Red 3mm Dip Led Diode
US$ 0.02 - 0.05
MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Model Number:
WE324RD-E16
Chip Material:
AlGaInP
Emitting Color:
Red
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 465nm Blue 3mm LED With FlangeUS$ 0.012 - 0.03MOQ: 20000 Pieces -
Through Hole Package Red Diffused 1.5V 3mm Led DiodeUS$ 0.011 - 0.03MOQ: 20000 Pieces
-
Top Quality High Radiant Power 3mm 5mm 940nm 850nm 830nm 810nm IR LEDUS$ 0.15 - 0.3MOQ: 20000 Pieces
-
615-630nm Green 5mm High Brightness Led DiodeUS$ 0.01 - 0.03MOQ: 20000 Pieces
-
High Quality Red and Yellowgreen Bi-color Common Anode Led 3mmUS$ 0.021 - 0.035MOQ: 1000 Pieces
Model Number
WE324RD-E16
Chip Material
AlGaInP
Emitting Color
Red
Luminous Intensity
700mcd
Optical Attenuation(%)
0.3
Power
0.06W
Power Dissipation
0.072
Operating Temperature(℃)
-25, 85
Storage Temperature(℃)
-40, 100
Place of Origin
Guangdong, China
Brand Name
WEJ 3mm dip led diode
Certification
CE
Super bright 660nm Red 3mm dip led diode
Product Description
Selection Guide
| Part No. | Emitted Color | Resin color | Viewing Angle |
| WEJ324RD-E16 | Red | Red Diffused | 50degree |
Electrical/Optical Characteristics Ta=25 ℃
| Parameter | Symbol | Condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| Forward voltage | Vf | If=20mA | --- | 2.0 | 2.4 | V |
| Luminous intensity | Iv | If=20mA | 460 | 700 | --- | mcd |
| Dominant wavelength | λd | If=20mA | 640 | 643 | 650 | nm |
| Peak wavelength | λp | If=20mA | --- | 660 | --- | nm |
| Reverse current | Ir | Vr=5V | --- | --- | 10 | μA |
Notes:
1. Forward Voltage: ±0.1V
2. Wavelength: ±1.5nm
3. Luminous Intensity: ±10%
Package outline dimensions
Note:
1. All dimensions are in millimeters;
2. Tolerance is ±0.25 unless otherwise noted;
3. Lead spacing is measured where the leads emerge from the package;
4. Specifications ar subject to change without notice.
Packaging & Shipping
| Product | Quantity/bag | Quantity/carton | GW/CTN | Carton Size |
| 3mm DIP LED diode | 1000pcs | 60000pcs | 11.3kg | 56*29*31cm |
Shipping:
*By Air: From Shenzhen or HK airport.
*By Sea: From Shenzhen or HK port.
*By Express door to door: DHL, TNT, UPS, FedEx, EMS ect.
Our Services
1. Experienced R&D team
2. Professional production process
3. Free samples support
4. Short lead time
5. Customized will be welcome
6. Small order acceptable
Company Information
WEJ Overseas sales team:
WEJ Industry park:
Office:
WEJ Porduction machine
Production Machinery
| Machine Name | Brand&Model No. | Quatity | Number of year (s) used | Condition |
| Solid Crystal Machine | ASM AD820 | 8 | 4 | Acceptable |
| Wire Bonder | Eagle 60V | 8 | 4 | Acceptable |
| Oven | XinZhou | 15 | 6 | Acceptable |
| Automatic Sealing Machine | HWTB20K | 1 | 4 | Acceptable |
| Automatic Dispener | SHOTMASTER300 | 3 | 4 | Acceptable |
| LED Lamp Splitter | HWINL 1800,H565 | 3 | 5 | Acceptable |
| Reflow Soldering Machine | V-FC8800-LF | 1 | 4 | Acceptable |
| Automatic Braiding Machine | H635 | 1 | 1 | Acceptable |
| Automatic Glue Machine | Speed3000 | 1 | 1 | Acceptable |
Testing Machinery
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| LED Intergrating Sphere | EVERFINE | 2 | 1 | Acceptable |
| Video Measuring System | JIVMS-1510 | 1 | 2 | Acceptable |
| Braid Tester | No Information | 1 | 7 | Acceptable |
| Transistor Curve Tracer | QT2 | 1 | 7 | Acceptable |
| Voltage Regular Tube Tester | SZN6000N | 4 | 7 | Acceptable |
| Thermal Shock Chamber | TS-42A | 1 | 3 | Acceptable |
| Temperature and Humidity Chamber | TH-80B | 1 | 3 | Acceptable |
| Hig Temperature Aging Tester | XINZHO | 1 | 3 | Acceptable |
| High Voltage Aging Line | No Information | 1 | 3 | Acceptable |
Factory information
| Factory Size (ters): | 3,000-5,000 square meters |
| Factory Location | 1/F and 3/F, Building 21, 6th Industrial Area, Yulv Community, Guangming New District, Shenzhen City, Guangdong China. |
| Number of Production line staff | More than 160 persons |
| Number of R&D Staff | 15-20 persons |
| Number of QC Staff | 11-20 persons |
| Management Certification | ISO9001 ISO14001 |
| Contract Manufacturing | OEM Service Offered, Design service offered |
